- 325 MAGNUM 2X4 HDS - A01CB32FC
MAIN GEARCASE - A01CB32AA (4963966396C005)

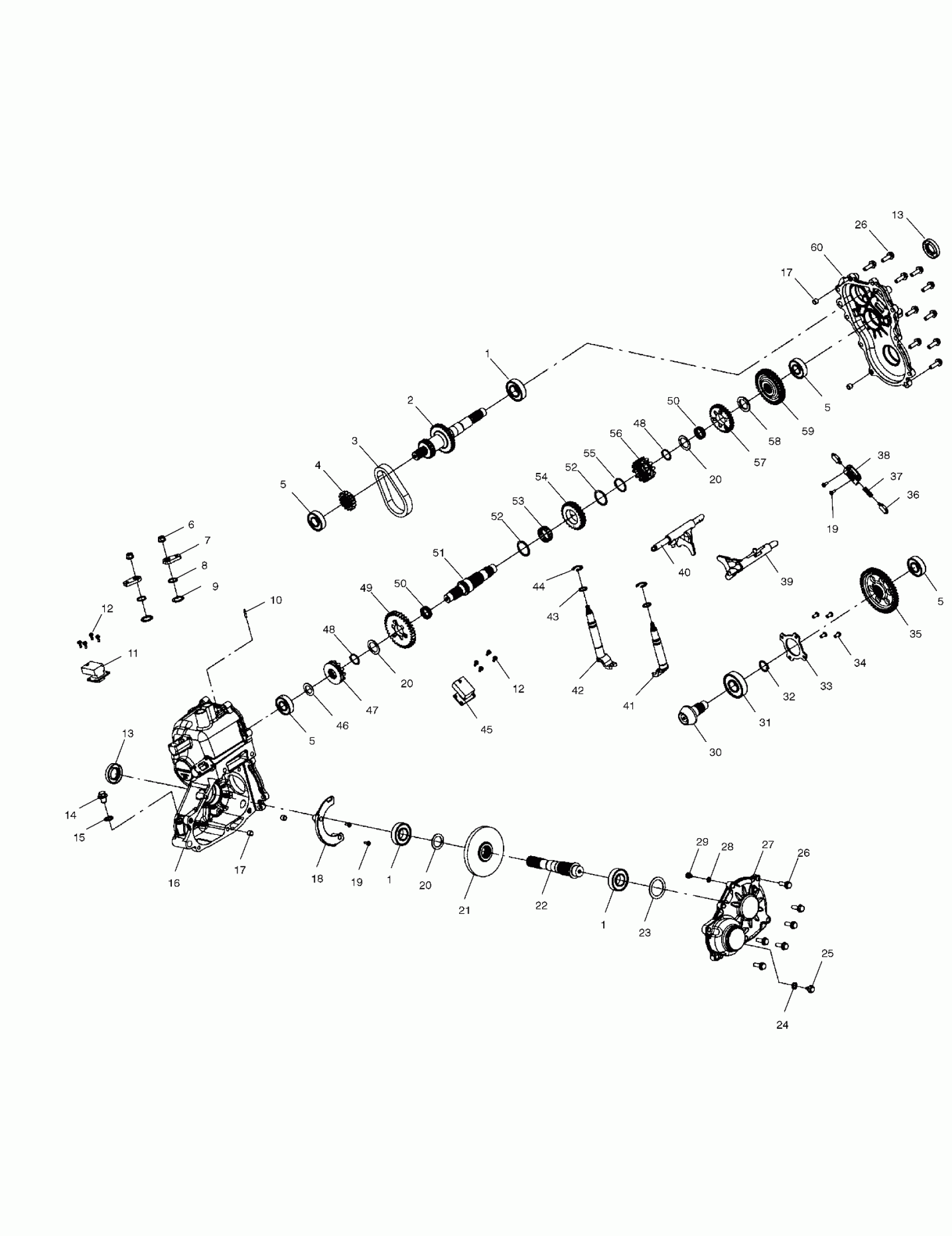

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC MAIN GEARCASE - A01CB32AA (4963966396C005) Diagram
#
-
Asm., Gearcase, Main (Incl. All) (INCL. ALL)
1341364
Unavailable
1
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
1
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
1
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
2
Shaft, Input, 31T
3233756
Unavailable
3
Chain, Silent
3233036
Unavailable
4
Gear, 16T w/22T Spline
3233770
$94.39
5
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
5
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
5
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
5
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
6
NUT, LOCK
3233961
$2.79
7
Bellcrank
3233153
$27.99
8
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
9
Washer
3233040
$9.59
10
Tube, Vent
3233037
Unavailable
11
Switch, 3 Position
3234019
Unavailable
12
SCREW
3233749
$5.59
12
SCREW
3233749
$5.59
13
Seal, Triple Lip
3233788
$31.99
13
Seal, Triple Lip
3233788
$31.99
14
Plug
3233711
Unavailable
15
Washer
3233872
$9.59
16
Gearcase, Main
3233902
Unavailable
17
Pipe, Knock
3233529
$7.99
17
Pipe, Knock
3233529
$7.99
18
Deflector, Oil
3233712
Unavailable
19
Screw
3233747
Unavailable
19
Screw
3233747
Unavailable
20
WASHER,THRUST
3233619
$21.99
20
WASHER,THRUST
3233619
$21.99
20
WASHER,THRUST
3233619
$21.99
21
Subasm., Ground Spiral Bevel [Incl. 30]
3234912
$595.54
22
Shaft, Rear Output
3233622
Unavailable
23
SHIM
3233611
$26.39
24
Washer
3233254
$7.99
25
Plug, Flange, Hex
3233777
$34.99
26
Screw
3233252
$5.27
26
Screw
3233252
$5.27
27
Cover, Front, Gearcase
3233713
$72.79
28
SHIM
3233583
$26.39
29
THRUST BUTTON
3233582
$7.91
30
Subasm., Ground Spiral Bevel [Incl. 21]
3234912
$595.54
31
Bearing, Ball
3233607
$36.41
32
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
33
Cover, Bearing, Center
3233609
$19.99
34
Screw
3233608
$5.99
35
Gear, 48T
3233709
$178.57
36
Pin, Interlock
3233308
Unavailable
37
Spring, Shifting, Interlock
3233032
$12.94
38
Bracket, Interlock
3233309
$20.63
39
Fork, Shift, Low
3233605
Unavailable
40
Fork, Shift, H/R
3233602
Unavailable
41
Shaft, Shift, Low
3233624
$58.73
42
Shaft, Shift, H/R
3233627
Unavailable
43
O-Ring
3233548
$27.99
44
Ring, Retaining
3233618
$1.75
45
Switch, 2 Position
3234001
Unavailable
46
Washer
3233628
Unavailable
47
Engagement Dog, Low
3233732
$169.98
48
RING, RETAINING
3233306
$4.79
48
RING, RETAINING
3233306
$4.79
49
Gear
3233631
$133.59
50
BEARING, NEEDLE
3233103
$31.99
50
BEARING, NEEDLE
3233103
$31.99
51
Shaft, Reverse
3233598
Unavailable
52
Washer, Thrust
3233012
Unavailable
52
Washer, Thrust
3233012
Unavailable
53
BEARING, NEEDLE
3233014
$43.99
54
Sprocket, 24T
3233599
Unavailable
55
Ring, Retaining
3233029
$5.59
56
Engagement Dog, H/R
3234020
Unavailable
57
Gear, 30T
3233600
$198.32
58
Spacer
3233613
$3.51
59
Gear, 36T
3233708
Unavailable
60
Gearcase, LH
3233610
Unavailable
