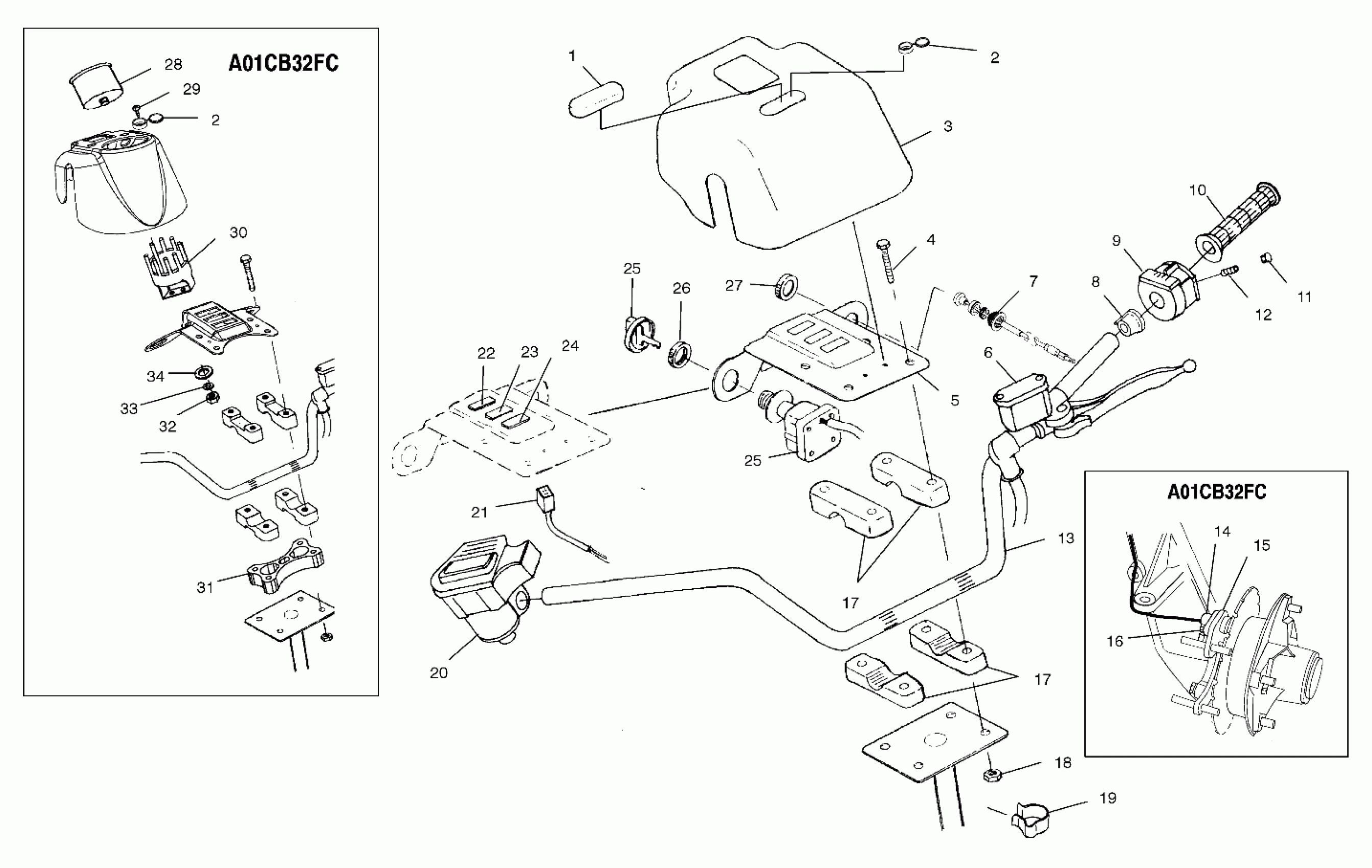

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC HANDLEBAR - A01CB32AA (4963966396C001) Diagram

#

Description
Price

1

COVER-LOGO, BLK (AA)(AB)

5432247-070

Unavailable

2

COVER,SCREW,HINGED,BLK

5432420

Unavailable

2

COVER,SCREW,HINGED,BLK

5432420

Unavailable

3

PANEL,INST.,BLK (FC)

5432246-070

Unavailable

3

PANEL,INSTRUMENT,BLACK (AA)(AB)

5433842-070

Unavailable

4

SCREW (AA)(AB)

7517216

Unavailable

4

SCREW (FC)

7517224

Unavailable

5

BRKT,INST.PANEL,BLK (FC)

5241397-067

$24.79

5

BRKT-INSTRUMENT,PANEL,BLK (AA)(AB)

5244292-067

Unavailable

6

Asm., Master Cylinder (See Control - Master Cyl./Brake Line Pg. B7 for Details)

-------

Unavailable

7

CABLE-CHOKE,FRICTION,40"

7081008

$79.99

8

SPACER-SWITCH,LH,99

5433903

Unavailable

9

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

10

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$24.27

11

PLUG,HOLE(10)

5432952

$5.59

12

SCREW,SET

7517625

$4.79

13

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

14

CAP-HALL SENSOR (FC)

5132382

$23.99

15

SENSOR,HALLEFFECT (FC)

4010298

$111.99

16

SCREW (FC)

7517658

$5.59

17

BLOCK,H'BAR,(300)

5630629

$11.59

17

BLOCK,H'BAR,(300)

5630629

$11.59

18

NUT-LOCK(10)

7542122

$1.49

19

CLIP,CABLE RETAIN,(10)

7080631

$6.29

20

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B4, Ref. 5)

-------

Unavailable

21

HARNESS-CONTROL PANEL,325

2460715

Unavailable

22

INDIC"NEUT./REV."

4040054

$31.99

23

INDIC"HOT TEMPERATURE"

4040053

$31.99

24

PLUG,INDIC.HOLE

5430967

$5.65

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

25

SWITCH,IGNITION

4110264

$104.24

25

COVER, KEY Substituted by 5433534

5431964

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

25

SWITCH,IGNITION

4110264

$104.24

25

COVER, KEY Substituted by 5433534

5431964

Unavailable

26

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

27

Nut

7080229

$19.99

28

ASM-SPEEDOMETER,MAG 325,6P,KMH (FC)

3280362

Unavailable

29

SCREW,(10) (FC)

7512024

$4.79

30

CABLE-SPEEDOMETER (FC)

3280201

Unavailable

31

BLOCK,RISER,300,GEN 4 (FC)

5630633

$19.03

32

NUT, BRASS(10) (FC)

7541933

$4.99

33

WASHER,13/64X1/2X18GA,FL-Y (FC)

7558212

$1.49

34

WASHER, LOCK,(S.S.)(10) (FC)

7555868

Unavailable
