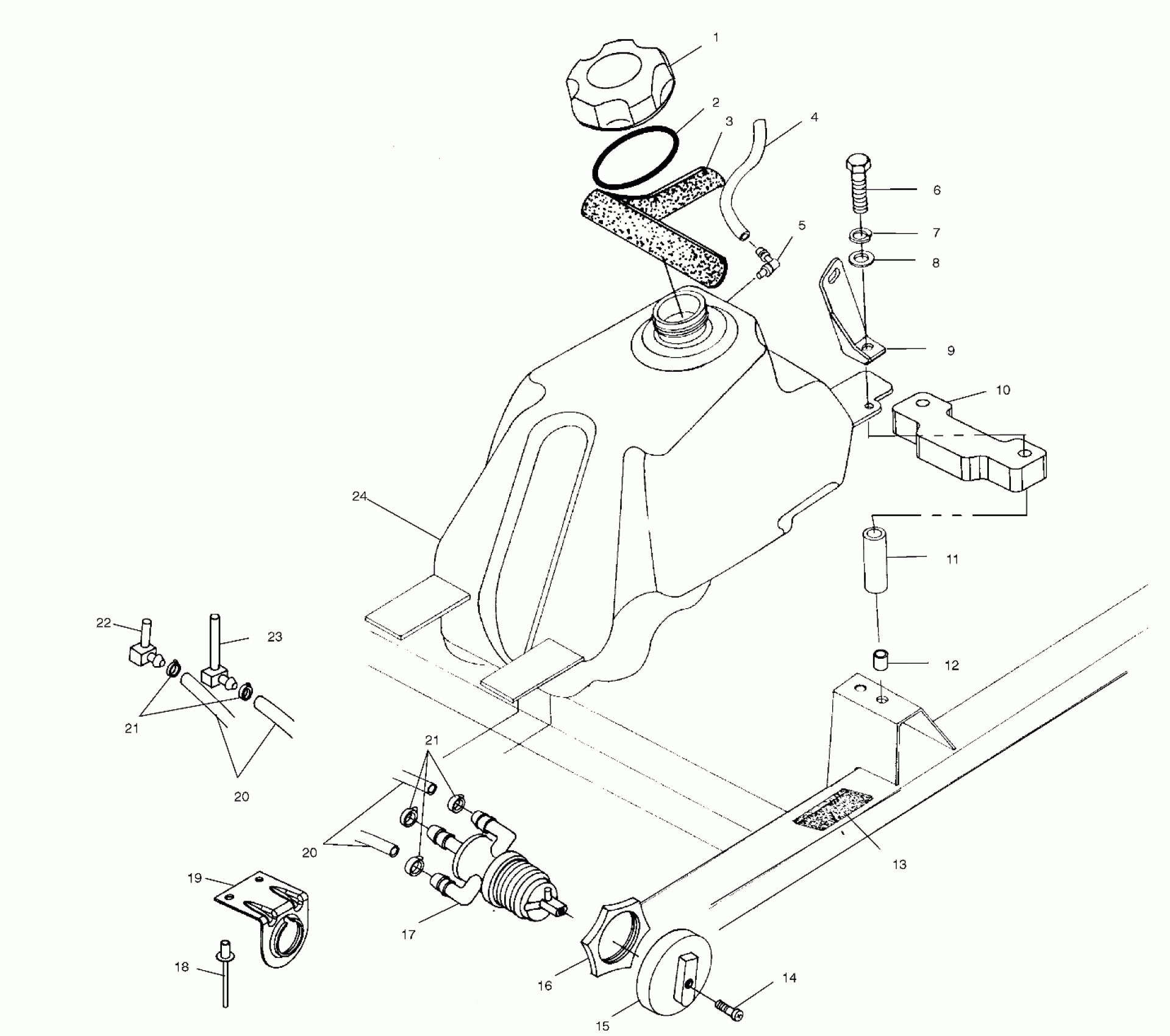

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC FUEL TANK - A01CB32AA (4963966396A013) Diagram

#

Description
Price

1

CAP,GAS TANK

5433687

$20.22

2

GASKET,GAS CAP

5812123

$5.65

3

FOAM-SEAL,17"

5811899

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7517451

$5.59

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.49

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

FOAM,INTAKE,SPLASH

5811796

Unavailable

11

SPACER-.438X.75X1.375-B

5333936

Unavailable

12

NUTSERT,HEX(10)

7547069

$3.99

13

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

14

SCREW(10)

7517505

$1.59

15

KNOB,FUEL VALVE

5432559

$10.39

16

NUT,FUELVALVE,ATV

5432733

Unavailable

17

VALVE,3-WAY

7052161

$39.99

18

RIVET-3/16-.090-.290

7661637

$1.49

19

BRKT,FUELVALVE,BLK

5240577-067

Unavailable

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

22

FITTING,FUEL OUT,RES.,Z

7052149

$23.99

23

FITTING,FUEL OUT,MAIN,Y

7052146

$27.99

24

TANK,FUEL,MAGNUM 325,ASM. (Incl. 5,22,23)

2520183

Unavailable
