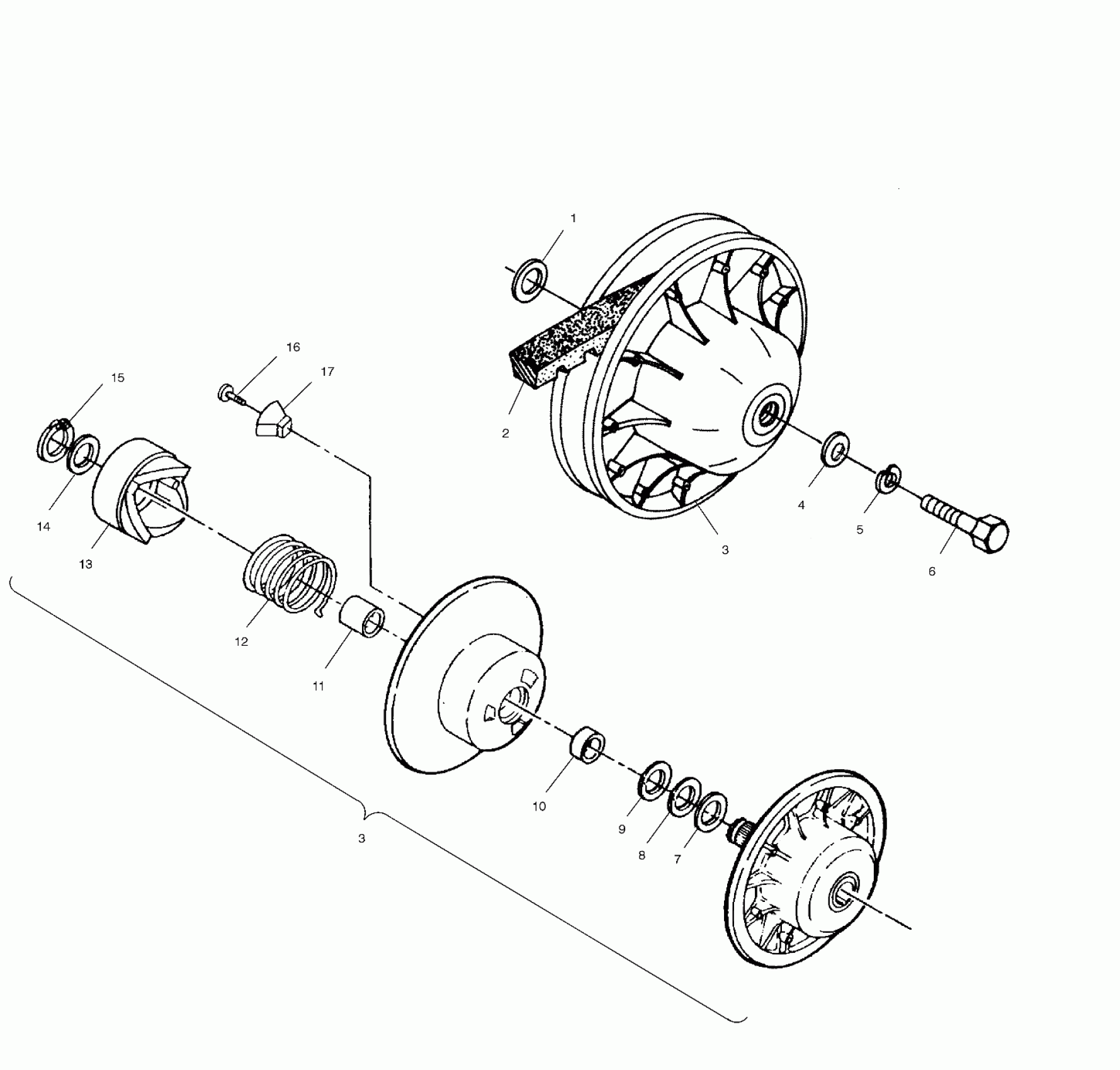

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC DRIVEN CLUTCH - A01CB32AA (4963966396B011) Diagram

#

Description
Price

1

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

Unavailable

2

BELT,DRIVE,ATV,CLOSE TOL(5)

3211077

$63.99

3

CLUTCH,DRVN,ASM (Incl. 7-11,14-17)

1321874

$614.99

3

CLUTCH,DRVN,ASM (Incl. 7-11,14-17)

1321874

$614.99

4

WASHER, DOMED(10)

5220646

$2.39

5

LOCK WASHER(10)

7552901

$1.49

6

BOLT(10)

7515382

$2.39

7

WASHER(10) (.020 mm)

7555898

Unavailable

8

WASHER(10) (.025mm)

7556076

Unavailable

9

WASHER(10) (.03mm)

7556804

Unavailable

10

BUSHING, DRIVEN (1/2 Inch)

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU (1 Inch)

3576511

$27.99

12

SPRING-CLTCH,CHRM,SLCN,BLK,DRI

7041782

$56.65

13

RAMP,STA,COMP (MACH)

5132344

$79.99

14

SPACER-1.350X1.750X.020-YW/TAB

5244116

$7.19

15

RING,RET.

7710448

$3.19

16

BOLT(10)

7511854

$1.49

17

BUTTON,RAMP

5430766

Unavailable
