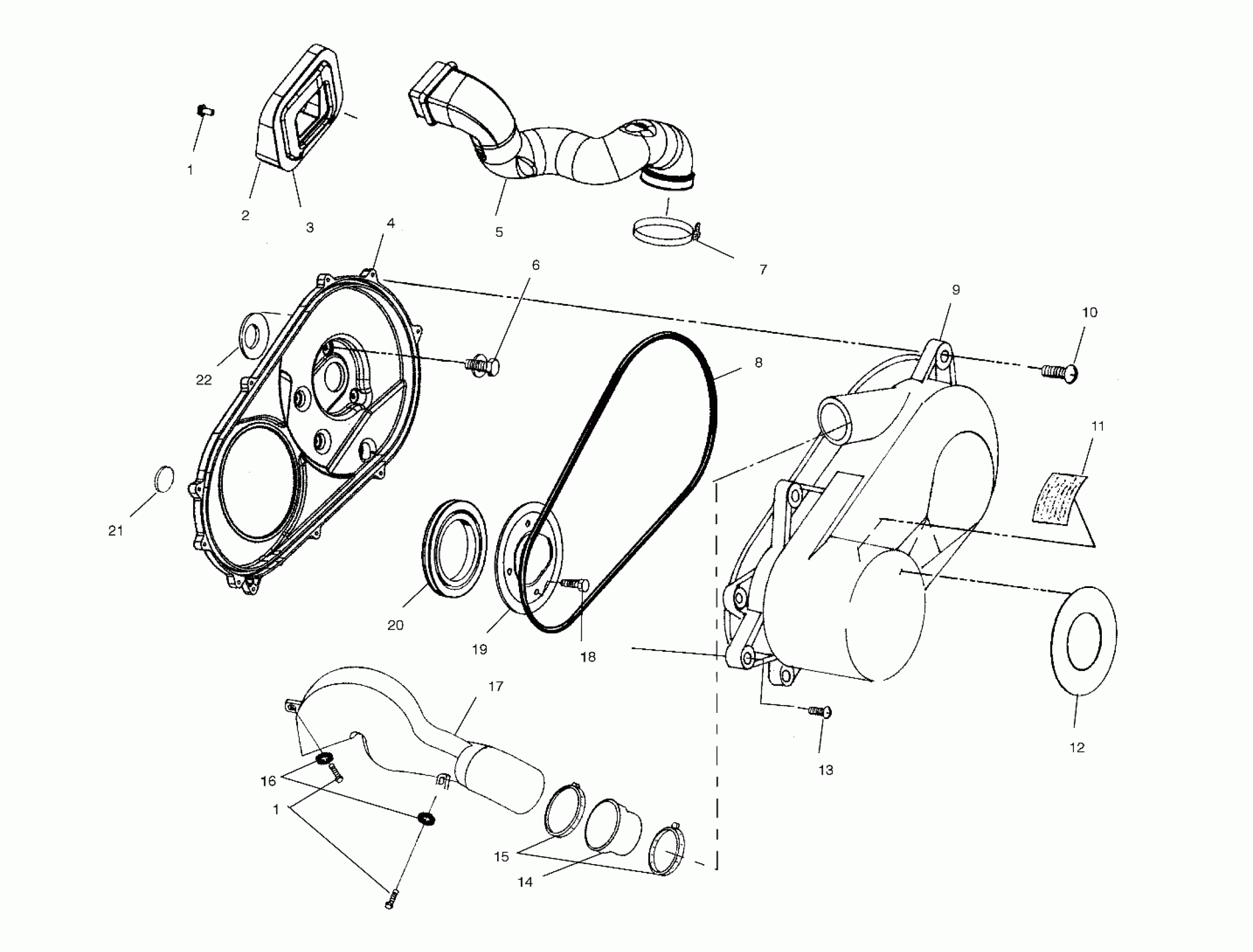

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC CLUTCH COVER - A01CB32AA (4963966396B012) Diagram

SCREW,(10)

7517386

$1.49

SCREW,(10)

7517386

$1.49

FOAM,CLUTCH AIR INLET,ASM.

2632116

$54.99

DESC NOT_AVAILABLE

5433453

Unavailable

INNER CLUTCH CVR,SVC,ASM.

2201676

$123.99

DUCT,INLET,325

5433363

Unavailable

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

CLAMP,NARROW BAND(1.77/2.75)

7080909

$7.99

SEAL,CLUTCHCOVER

5521301

$30.88

COVER,CLUTCH OUTER,HV GREY Substituted by 5433451-070

5433451-328

$178.08

SCREW(10)

7512094

$1.59

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

SCREW(10)

7512094

$1.59

BOOT,DUCT,HI-FLOW

5411489

Unavailable

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

WASHER(10)

7558301

$1.49

DUCT,AIR OUTLET,CLUTCH

5433744

Unavailable

SCREW AND WASHER (SEE CRANKCASE PG. C12, REF. 7)

-------

Unavailable

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

Seal, Cover Case

5410575

Unavailable

STOPPER-INNER CLUTCH COVER

5411795

Unavailable

SEAL-CLUTCH COVER,TRANSMISSION

5411901

Unavailable
