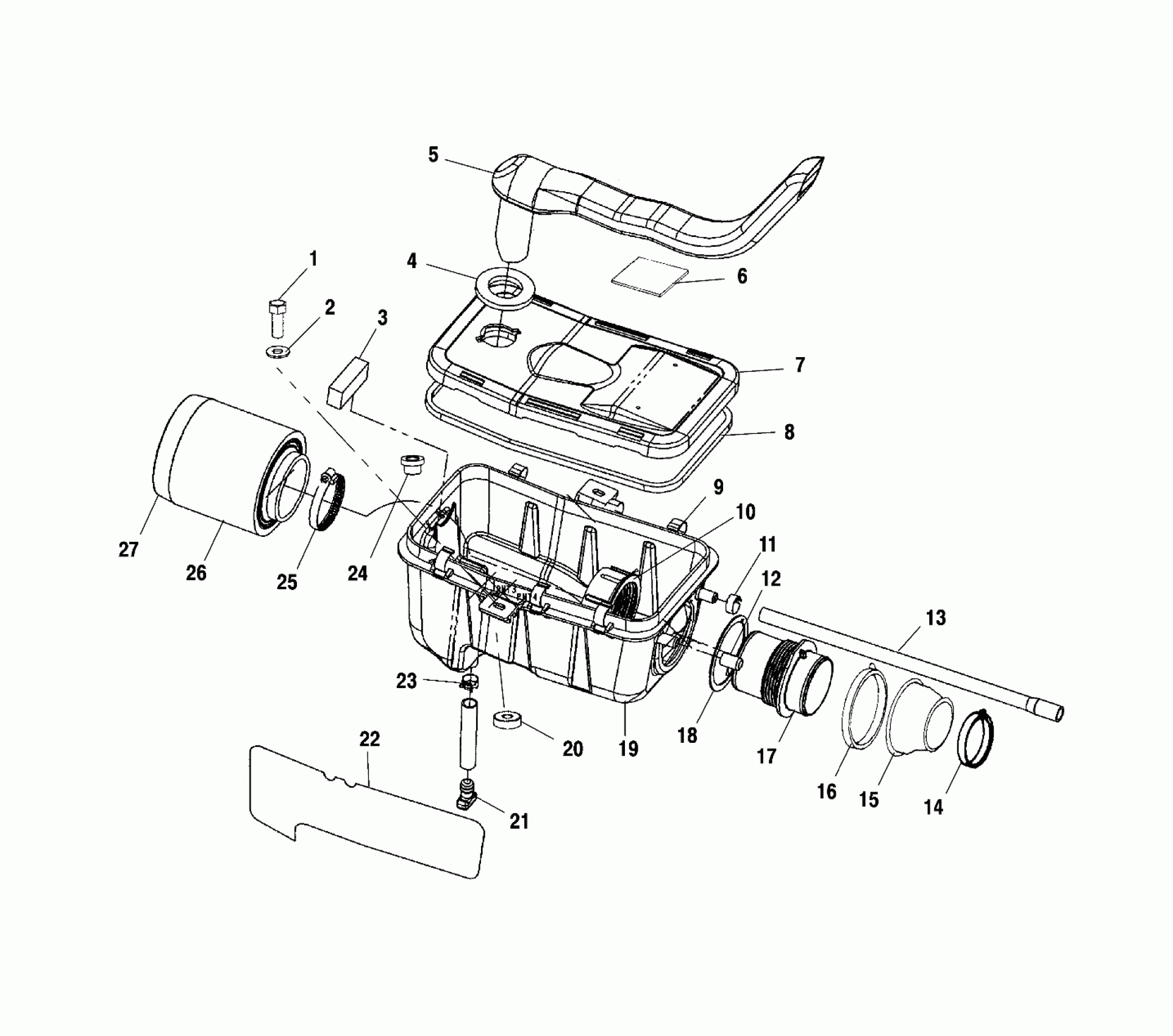

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC AIR BOX (If built after 1/08/01) - A01CB32AA (4963966396B001) Diagram

Description

Price

SCREW(10)

7515180

Unavailable

WASHER, FLAT(10)

7555859

$1.19

FILTER-AIRBOX VENT

5812137

$0.95

SEAL,AIRBOX INTAKE

5812023

$6.59

DUCT-INLET,AIRBOX COVER

5433920

Unavailable

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

COVER,AIRBOX

5433769

Unavailable

SEAL,AIRBOX COVER

5811482

$28.32

CLIP-AIR BOX

5242044

$9.52

COLLAR,CARB INLET

5432601

$12.94

CLAMP,HOSE

7080699

$1.59

CAP-RUBBER,3/8 ID(10)

5412101

$5.65

HOSE,BRTHR,.47-.38X13.5"

5411866

$11.51

CLAMP, NARROW BAND(10)

7080511

$4.76

BOOT-CARB 325 PVT

5411588

Unavailable

CLAMP,BAND,NARROW

7080413

$3.17

DUCT-CARB INLET

5433180

$36.41

GASKET,CARB.IN.DUCT

5830128

Unavailable

BOX-AIR INTAKE,4 STROKE

5433919

Unavailable

WASHER,NYLON

7555932

$2.38

Plug, Trap

5432377

Unavailable

FOIL-ARIBOX,RH

5812111

Unavailable

CLAMP,HOSE,(10)

7080650

$3.97

CAP-RUBBER,7/32 ID(10)

5412099

$2.74

CLAMP,BAND,NARROW

7080413

$3.17

FILTER,PRECLEAN.SLEEVE,4"

5811660

$6.10

ASM-FILTER,AIR,4.0" LONG (Incl. 26)

1253372

$27.78
