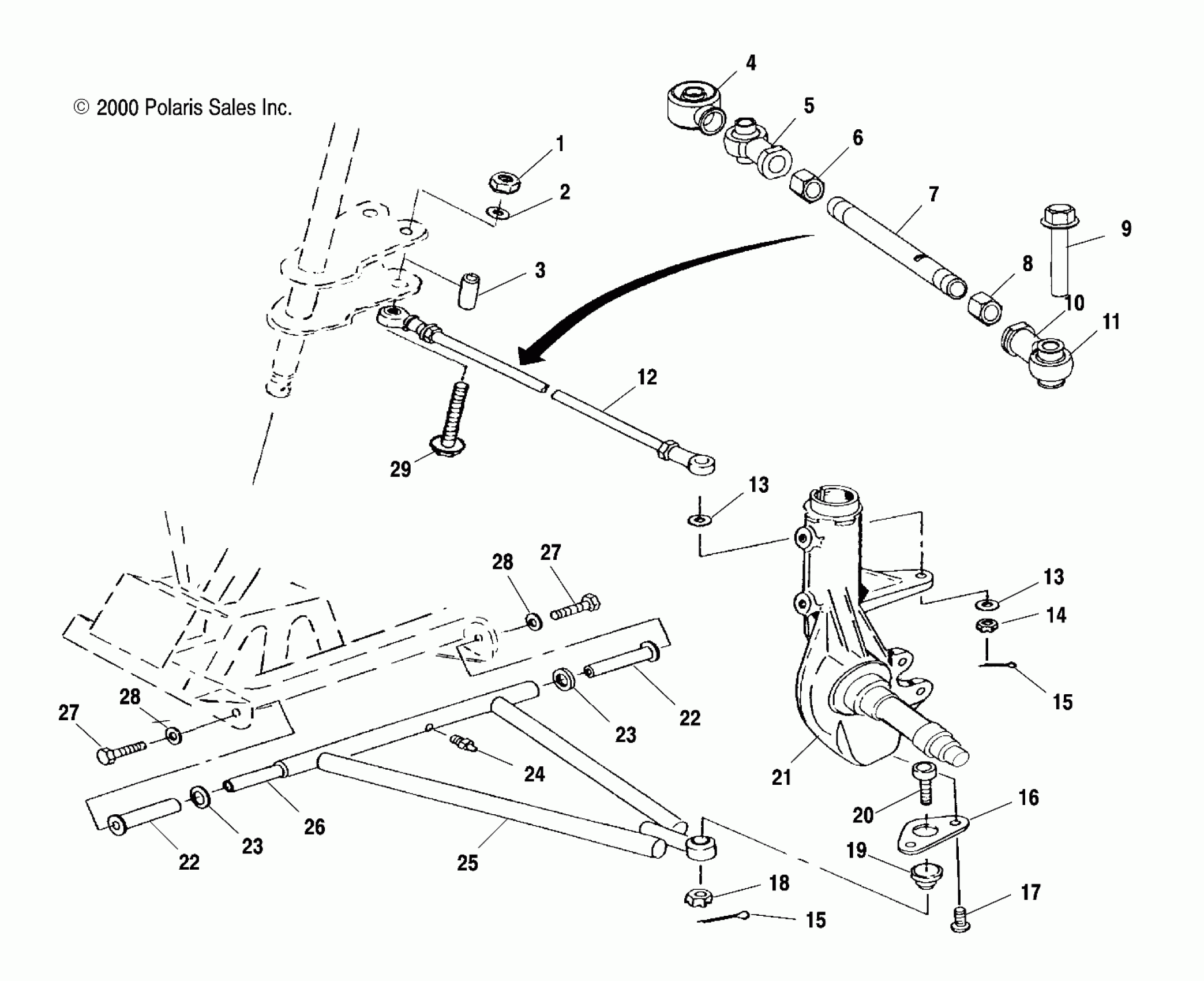

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC A-ARM/STRUT MOUNTING - A01CB32AA (4963966396B005) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

WASHER WROUGHT(10)

7558403

$4.76

3

BUSHING

5333367

$6.59

4

SEAL,BOOT,ROD END,1/2 IN

5411291

$11.32

5

ROD END,RH

7061034

$60.70

6

NUT-JAM(10)

7542711

$2.38

7

ROD,TIE

5020927

$44.51

8

NUT,LH,JAM(10)

7547028

$2.38

9

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909

7517674

$5.56

10

ROD,END,10MM,1/2-20LH,42 DEG

7061054

$56.65

11

HOSE,TEE/BOTTLE,3/4"

5411909

Unavailable

12

TIE,ROD,1/2-20X14.0,ASM. (Incl. 4-10)

1820806

$109.27

13

Washer

7556099

$1.59

13

Washer

7556099

$1.59

14

NUT-M10X1.25-HX-LOCK-Y(10)

7547177

$0.79

15

PIN COTTER(10)

7661203

$1.19

15

PIN COTTER(10)

7661203

$1.19

16

BRACKET,BALLJOINT

5240717

Unavailable

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

Boot, Rubber

5410548

$4.84

20

BALL-JOINT,52 DEG,ATV

7080927

$28.32

21

Asm., Hubstrut (See Strut Pg. B6, Ref. 16)

----

Unavailable

22

BUSHING,A ARM,LONG

5433066

$5.56

22

BUSHING,A ARM,LONG

5433066

$5.56

23

BUSHING,A-ARM SPACER(10)

5020677

$10.32

23

BUSHING,A-ARM SPACER(10)

5020677

$10.32

24

ZERK,FITTING,THREADED(10)

7080433

$1.19

25

A-FRAME,KIT,LH (1541454) (Incl. 22-24,27,28)

2201601

$149.99

25

A-FRAME,KIT,RH (1541455) (Incl. 22-24,27,28)

2201602

$149.99

26

Shaft, A-Arm

5020681

$33.24

27

SCREW(10)

7512492

$1.19

27

SCREW(10)

7512492

$1.19

28

WASHER(10)

7552603

$0.79

28

WASHER(10)

7552603

$0.79

29

BOLT-3/8-24X4,HX SEM/Y .86D

7517930

Unavailable
