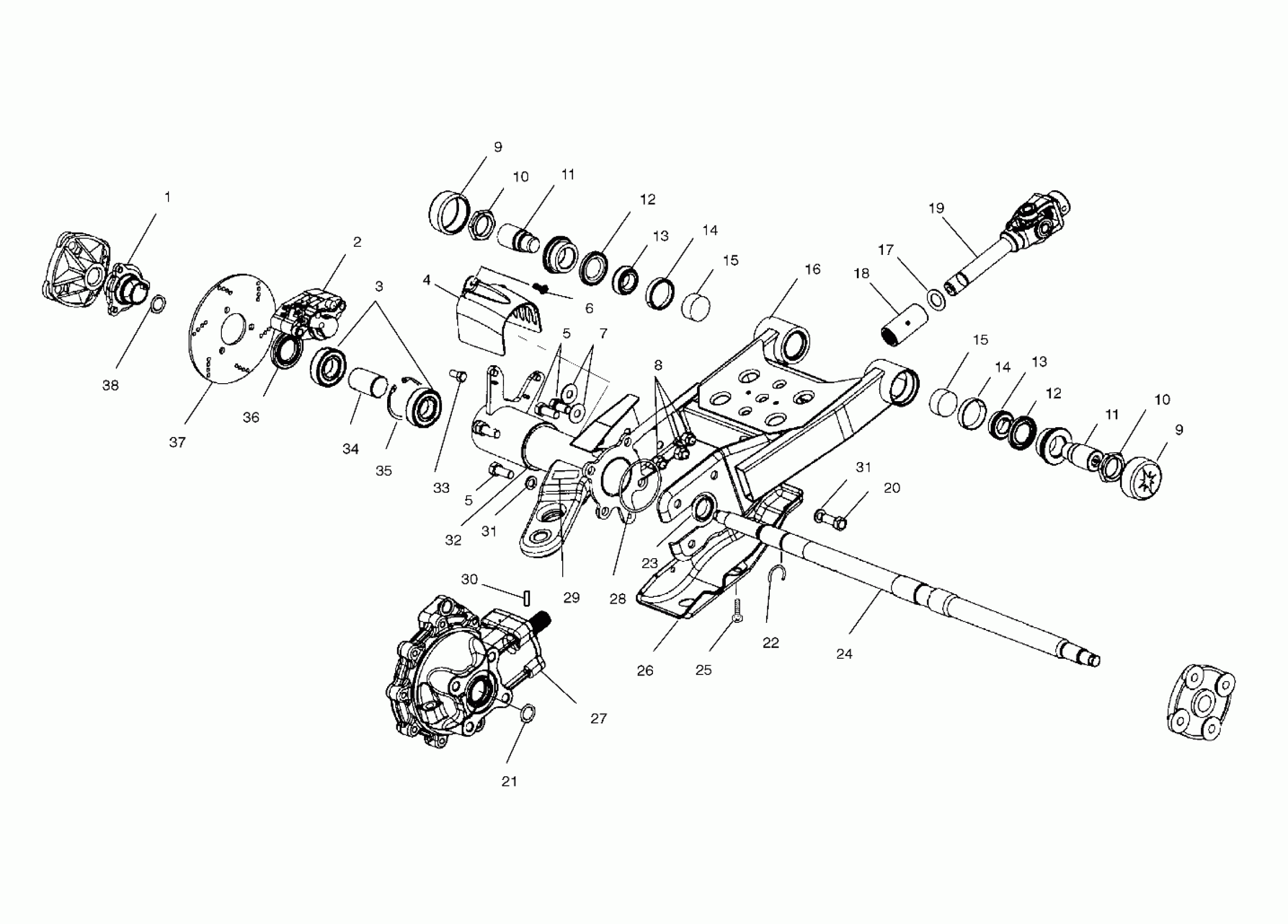

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA SWING ARM/REAR GEARCASE MOUNTING - A00CB32AA (4949354935C010) Diagram

#

Description
Price

1

HUB,BRAKE DISC,MACH

5132152

Unavailable

2

Asm., Rear Brake Caliper (See Rear Brake Pg C4, Ref. 4)

-------

Unavailable

3

BEARING,BALL,DBL.SEAL

3513523

$31.99

4

SHIELD-BRAKE LINE,REAR

5411653

$7.43

5

Bolt

7517604

Unavailable

5

Bolt

7517604

Unavailable

6

SCREW(10)

7512084

$1.49

7

WASHER(10)

7555721

$1.49

8

NUT FLEX,(10)

7542703

Unavailable

9

CAP,SWINGARM PIVOT

5411532

Unavailable

9

CAP,SWINGARM PIVOT

5411532

Unavailable

10

NUT,JAM,SWINGARMPIVOT

5131863

Unavailable

10

NUT,JAM,SWINGARMPIVOT

5131863

Unavailable

11

PIVOT,SWINGARM,THREADED

5131864

Unavailable

11

PIVOT,SWINGARM,THREADED

5131864

Unavailable

12

SEAL,SWINGARM PIVOT

3610072

Unavailable

12

SEAL,SWINGARM PIVOT

3610072

Unavailable

13

BRG,TAPER.ROLL.CONE

3554506

$31.99

13

BRG,TAPER.ROLL.CONE

3554506

$31.99

14

BRG,TAPER,ROLL CUP

3554507

$31.99

14

BRG,TAPER,ROLL CUP

3554507

$31.99

15

SEAL-SWINGARM PIVOT

5411602

Unavailable

15

SEAL-SWINGARM PIVOT

5411602

Unavailable

16

SWING ARM (Incl. 14,15)

1541323

Unavailable

17

O-RING

5411092

$1.60

18

ZERK,FITTING,THREADED(10)

7080433

$1.49

18

COUPLING-PROP SHAFT,GREASED

5132201

$59.99

19

PROPSHAFT ASM,REAR

1380137

$204.99

20

BOLT-1/2-13X1 1/4 HXHD GR5-Z

7517585

$4.79

21

O-Ring

5411531

Unavailable

22

RING,RETAINING

7710482

Unavailable

23

COLLAR,R.AXLE LOCK

5131930

Unavailable

24

AXLE,REAR

5131862

$259.59

25

Screw

7517612

Unavailable

26

SKID PLATE,REAR

1012881

$58.39

26

PLATE-SKID,REAR HOUSING,BLK

5242851-067

$19.83

26

PAD-RUBBER

5811716

Unavailable

27

ASM., GEARCASE, REAR (See Rear Housing Pg. C7 for Details)

-------

Unavailable

28

O-Ring

5411707

Unavailable

29

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

30

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

31

LOCK WASHER(10)

7553201

$3.99

31

LOCK WASHER(10)

7553201

$3.99

32

TUBE,AXLE,LH,BLK

1012740-067

$212.94

33

BOLT(10)

7515481

$2.63

34

SPACER-BEARING

5132075

Unavailable

35

RING,RETAINER,INT.

7710471

$13.59

36

SEAL,REAR AXLE

3610071

$15.99

37

DISC,BRAKE,VENTED

5211849

Unavailable

38

O-RING

5411092

$1.60
