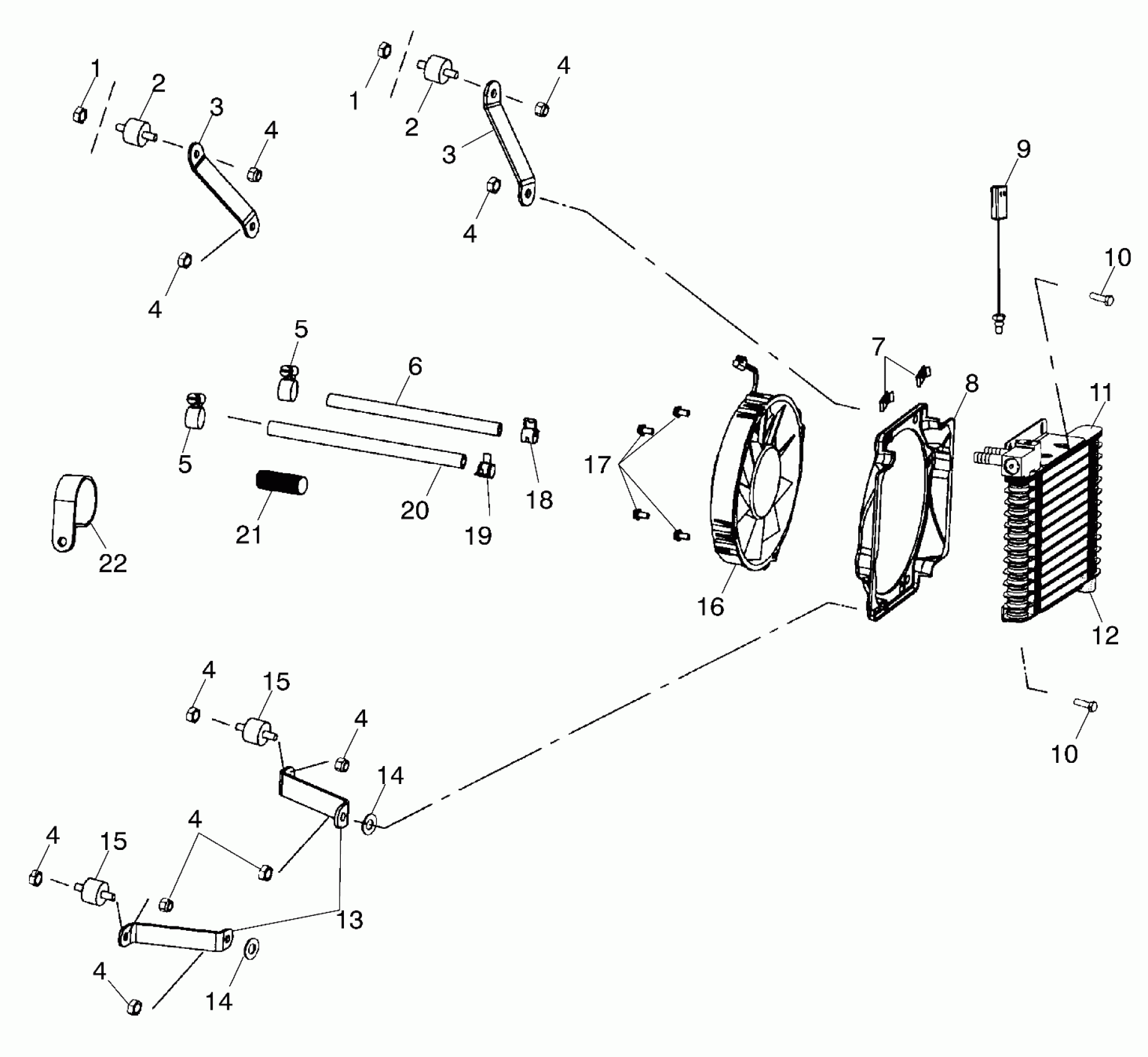

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA OIL COOLING (If built before 1/01/00) - A00CB32AA (4949354935A011) Diagram

#

Description
Price

1

NUTSERT,HEX(10)

7547069

$3.97

1

NUTSERT,HEX(10)

7547069

$3.97

2

Mount, Rubber

3110032

Unavailable

2

Mount, Rubber

3110032

Unavailable

3

BRKT,COOLING FAN,BLK

5242924-067

Unavailable

3

BRKT,COOLING FAN,BLK

5242924-067

Unavailable

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

5

CLAMP-HOSE,.875-SS

7080474

$8.54

5

CLAMP-HOSE,.875-SS

7080474

$8.54

6

HOSE,COOLER INLET Substituted by 2873649

5411813

$223.24

7

CLIP,U,ZY

7670111

Unavailable

8

SHROUD-FAN,ATV

5433353

$69.84

9

Thermister

4010274

$124.99

10

SCREW(10)

7515158

$4.76

10

SCREW(10)

7515158

$4.76

11

COOLER-OIL TO AIR

1240064

Unavailable

12

VALVE-PLASTIC DRAIN

7052244

Unavailable

13

MOUNT-OIL COOLER,LOWER,BLK

5242983-067

$9.62

14

WASHER(10)

7558301

$1.19

14

WASHER(10)

7558301

$1.19

15

MOUNT,CARB.

3110050

$12.99

15

MOUNT,CARB.

3110050

$12.99

16

FAN,MOTOR

2410157

Unavailable

17

Screw

7517659

$3.97

18

CLAMP-HOSE MUBEA

7080862

Unavailable

19

CLAMP-HOSE MUBEA 1/2"

7080866

$7.14

20

HOSE,OIL COOLER OUTLET Substituted by 2873649

5411768

$223.24

21

TUBING-CONVOLUTED,5/8 ID,7CM

8450086-07

Unavailable

22

CLAMP-P,CUSHIONED,1.25" I.D.

7080869

$11.11
