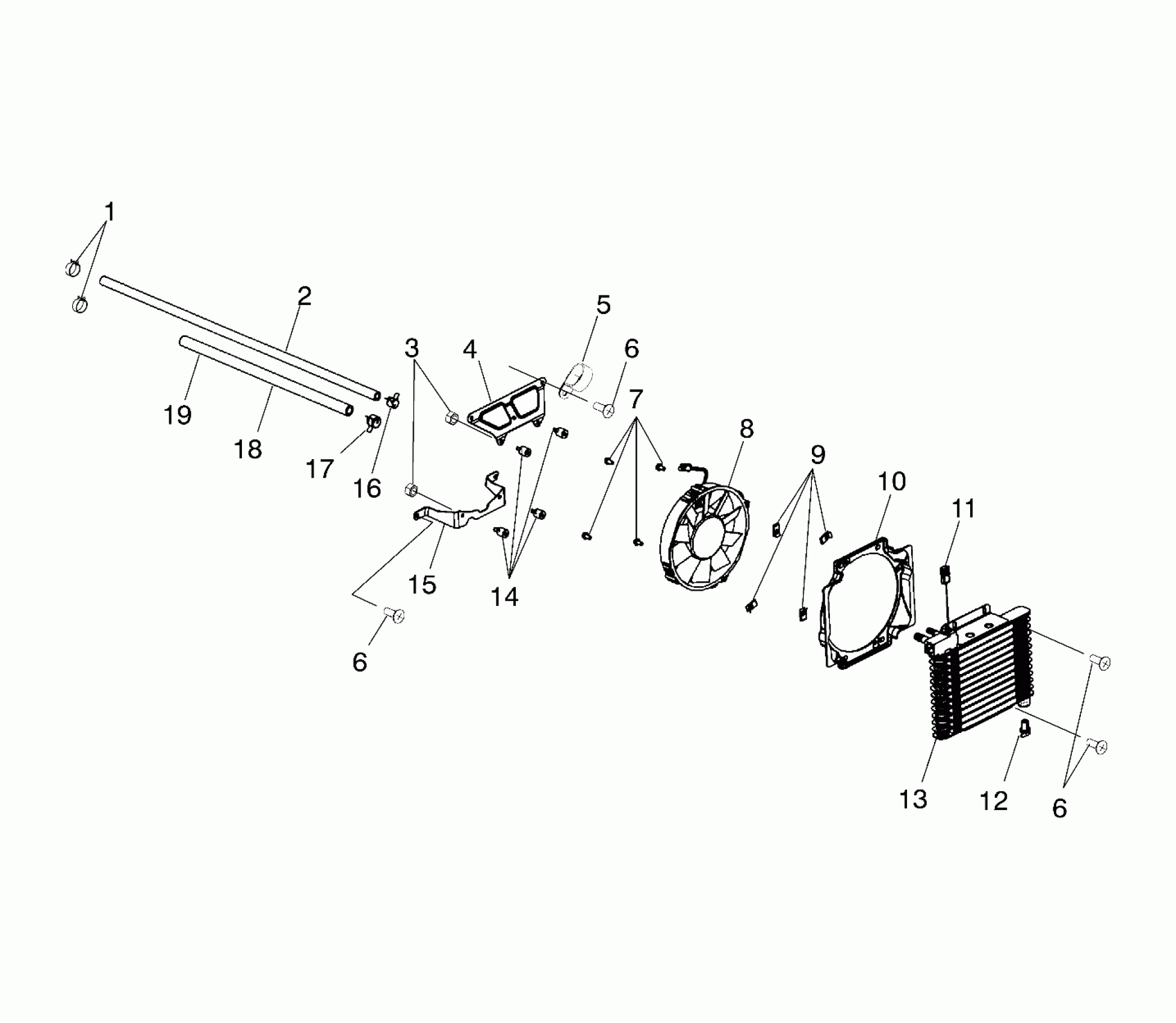

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA OIL COOLING (If built after 1/01/00) - A00CB32AA (4949354935A012) Diagram

#

Description
Price

1

CLAMP-HOSE,.875-SS

7080474

$8.54

2

HOSE,COOLER INLET Substituted by 2873649

5411813

$223.24

3

NUT-LOCK(10)

7542122

$1.19

4

BRKT,OIL COOLER,TOP,BLK

5243783-067

$48.99

5

CLAMP-P,CUSHIONED,1.25" I.D.

7080869

$11.11

6

SCREW(10)

7515158

$4.76

6

SCREW(10)

7515158

$4.76

6

SCREW(10)

7515158

$4.76

7

Screw

7517659

$3.97

8

FAN,MOTOR

2410157

Unavailable

9

CLIP,U,ZY

7670111

Unavailable

10

SHROUD-FAN,ATV

5433353

$69.84

11

Thermister

4010274

$124.99

12

VALVE-PLASTIC DRAIN

7052244

Unavailable

13

COOLER-OIL TO AIR

1240064

Unavailable

14

MNT,RUBBER,CARB,DURO 55

3021186

$11.99

15

BRKT,OIL COOLER,LOWER,BLK (If built before 1/24/00)

5244069-067

Unavailable

15

BRKT,LOWER,OIL COOLER ASM. (If built after 1/24/00)

1013302

$26.19

16

CLAMP-HOSE MUBEA

7080862

Unavailable

17

CLAMP-HOSE MUBEA 1/2"

7080866

$7.14

18

HOSE,OIL COOLER OUTLET Substituted by 2873649

5411768

$223.24

19

TUBING-CONVOLUTED,5/8 ID,7CM

8450086-07

Unavailable
