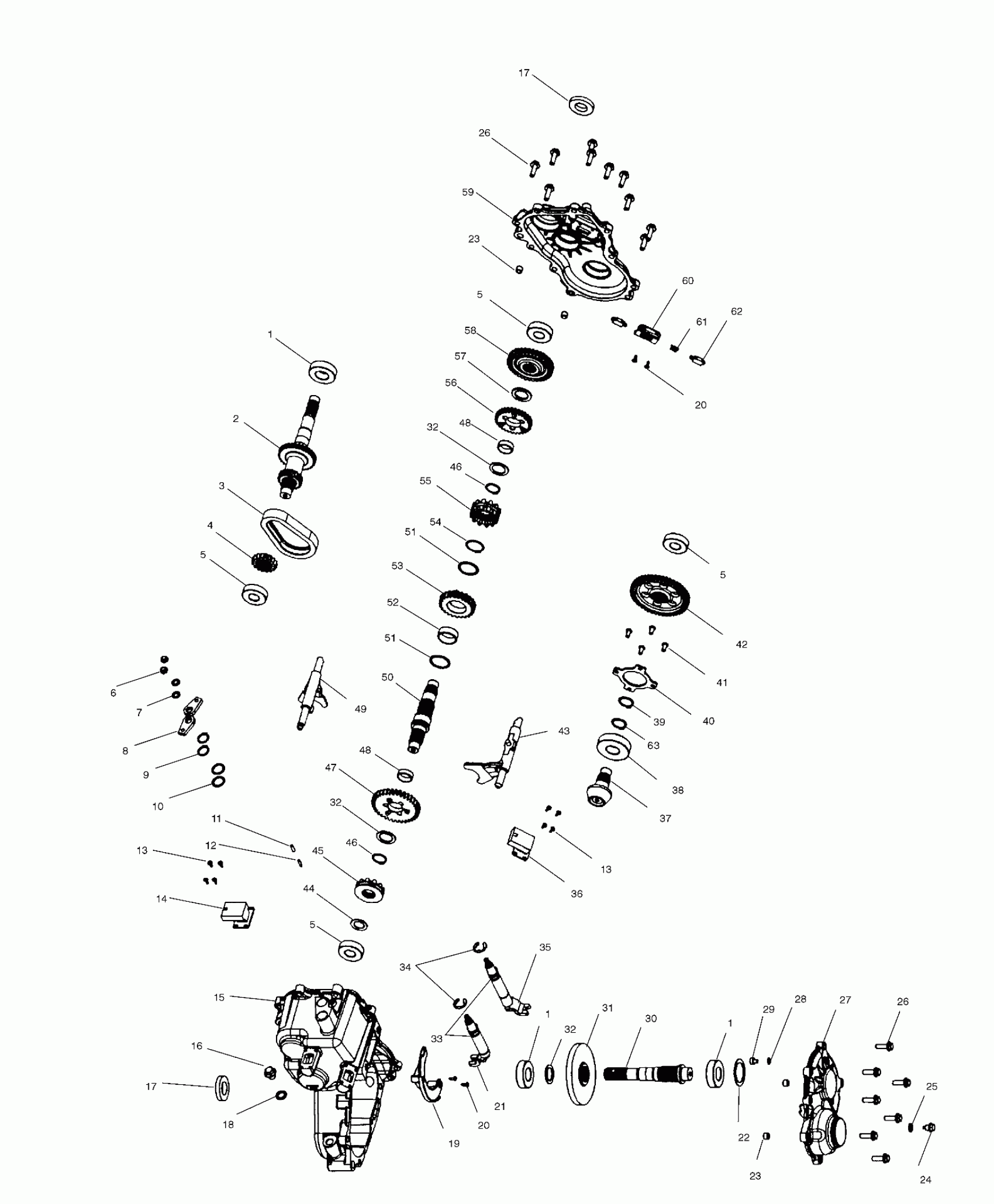

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA MAIN GEARCASE - A00CB32AA (4949354935C005) Diagram

#

Description
Price

-

GEARCASE/SHAFT ASM,2WD PRD (Incl. all)

1341278

Unavailable

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

2

SHAFT,INPUT 31T

3233604

$188.40

3

CHAIN,SILENT,34P

3233036

Unavailable

4

GEAR,16T

3233603

$81.75

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

6

NUT, FLEXLOC

3233961

$3.32

7

WASHER

----

Unavailable

8

Bellcrank

3233153

$32.37

9

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

10

Washer

3233040

$9.52

11

PLUG,VENT CAP

3233286

$2.62

12

Vent

3233037

Unavailable

13

SCREW

3233749

$5.65

13

SCREW

3233749

$5.65

14

Switch, 3 Position

3234019

Unavailable

15

GEARCASE,RH

3233902

Unavailable

16

PLUG,OIL FILL

3233711

Unavailable

17

Seal

3233788

$32.37

17

Seal

3233788

$32.37

18

Washer

3233872

$9.52

19

DEFLECTOR-OIL

3233712

Unavailable

20

Screw, Tapping

3233747

Unavailable

20

Screw, Tapping

3233747

Unavailable

21

SHIFT SHAFT

3233627

Unavailable

22

SHIM

3233611

$34.99

23

PIPE,KNOCK

3233529

$10.99

23

PIPE,KNOCK

3233529

$10.99

24

Plug, Drain

3233777

$34.99

25

Washer

3234035

Unavailable

26

Screw

3233252

$5.69

26

Screw

3233252

$5.69

27

GEARCASE-FRONT COVER

3233713

$72.22

28

SHIM .450 X .265

3233583

$33.24

29

THRUST BUTTON

3233582

$8.99

30

SHAFT,REAR OUTPUT

3233622

Unavailable

31

Subasm., Ground Spiral Bevel [Incl. 37]

3234912

Unavailable

32

WASHER,THRUST

3233619

$24.99

32

WASHER,THRUST

3233619

$24.99

32

WASHER,THRUST

3233619

$24.99

33

O-Ring

3233548

$33.24

34

RING,RETAINING

3233618

$1.75

35

SHIFT SHAFT

3233624

$58.73

36

SWITCH,ITW 2 POSITION

3234001

Unavailable

37

Subasm., Ground Spiral Bevel [Incl. 31]

3234912

Unavailable

38

BEARING,BALL

3233607

$36.41

39

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

40

COVER,BEARING

3233609

$19.99

41

Screw

3233608

$5.99

42

GEAR,HELICAL,48T

3233709

$178.57

43

SHIFT,FORK,LOW

3233605

Unavailable

44

Washer

3233628

Unavailable

45

ENGAGEMENT DOG,LOW

3233732

$178.08

46

RING,RETAINING

3233306

$4.76

46

RING,RETAINING

3233306

$4.76

47

GEAR,35T

3233631

$132.54

48

BEARING, NEEDLE

3233103

$31.75

48

BEARING, NEEDLE

3233103

$31.75

49

SHIFT FORK

3233602

Unavailable

50

SHAFT REVERSE

3233598

Unavailable

51

WASHER

3233012

Unavailable

51

WASHER

3233012

Unavailable

52

BEARING, NEEDLE

3233014

$43.65

53

SPROCKET,24T

3233599

Unavailable

54

RING,RETAINING

3233029

Unavailable

55

DOG,ENGAGE,12PT,HI/REV

3234020

Unavailable

56

GEAR,30T

3233600

$210.46

57

Spacer

3233613

$2.41

58

GEAR,HELICAL,36T

3233708

Unavailable

59

GEARCASE,LH

3233610

Unavailable

60

BRACKET,INTERLOCK

3233309

$20.48

61

Spring

3233032

$13.75

62

PIN,INTERLOCK

3233308

Unavailable

63

SPACER

3233357

$24.99
