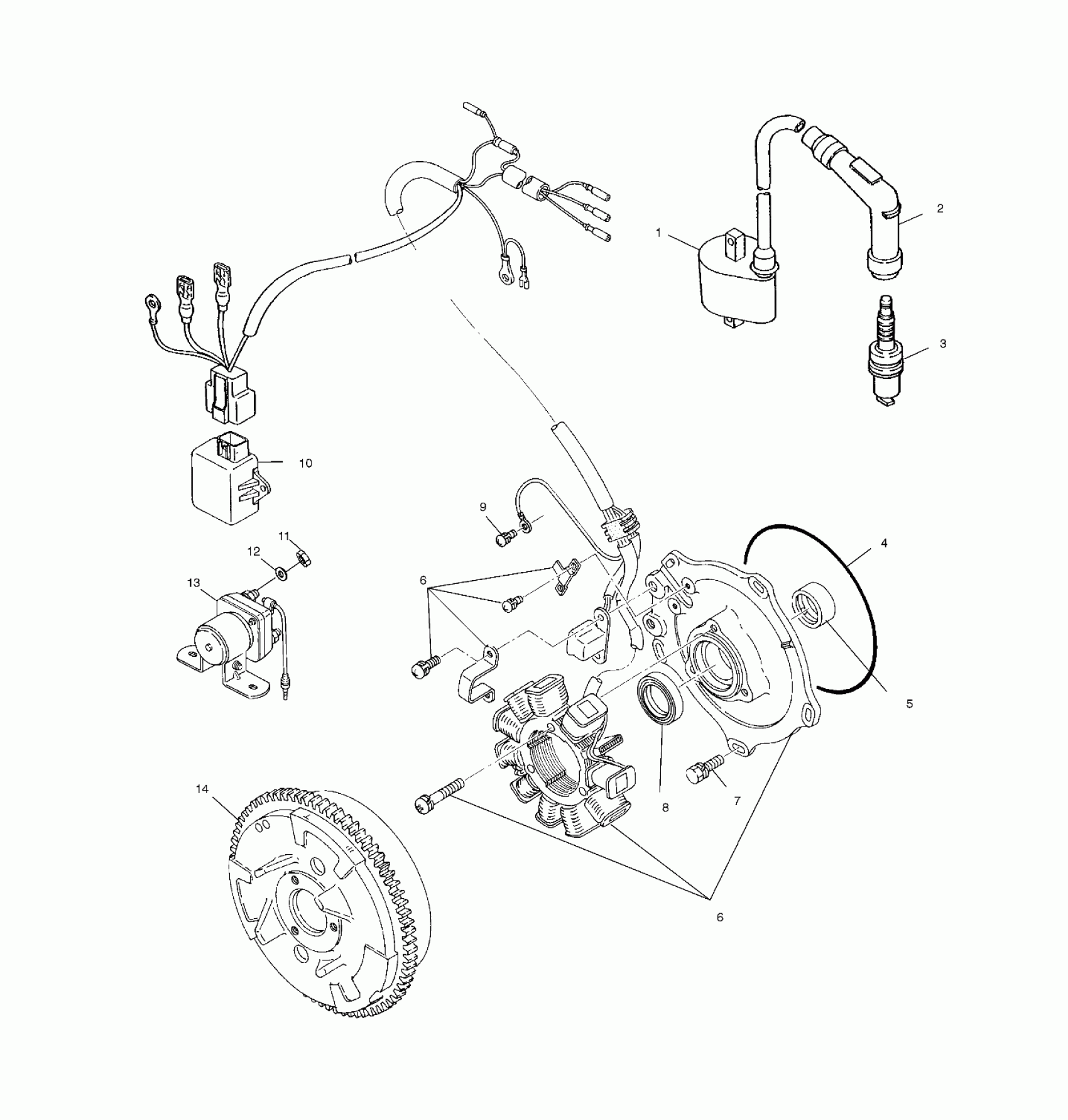

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA MAGNETO - A00CB32FA (4949354935D007) Diagram

COIL,IGNITION Substituted by 3086483 (If built before 3/1/99)

3086484

Unavailable

IGNITION COIL,ASM. (Incl. 1,2)

3086483

Unavailable

COIL,IGNITION Substituted by 3086483 (If built after 3/1/99)

3086807

Unavailable

CAP,SPARK PLUG

3086463

Unavailable

SPARKPLUG, BKR6E(10) Substituted by 3070172

3084997

Unavailable

O-RING

3084978

$35.99

BEARING-DRY

3086460

$27.99

PLATE ASM. Substituted by 3086904 (See Footnote) (Incl. 5,8)(Incl. 9 if built before 3/1/99 only)

3086458

Unavailable

PLATE ASM. Substituted by 3086904 (See Footnote) (Incl. 5,8)(Incl. 9 if built before 3/1/99 only)

3086458

Unavailable

BOLT&WASHER ASM.

3081657

$4.79

SEAL, OIL

3084973

$27.99

SCREW&WASHER ASM(10) (If built before 3/1/99 only)

3081256

$3.19

CDI System

3086464

Unavailable

Nut

3083073

$2.39

WASHER SPRING(10)

3080077

$2.39

SWITCH,MAGNETIC *

3085521

$60.70

Flywheel w/Ring Gear

3086457

Unavailable
