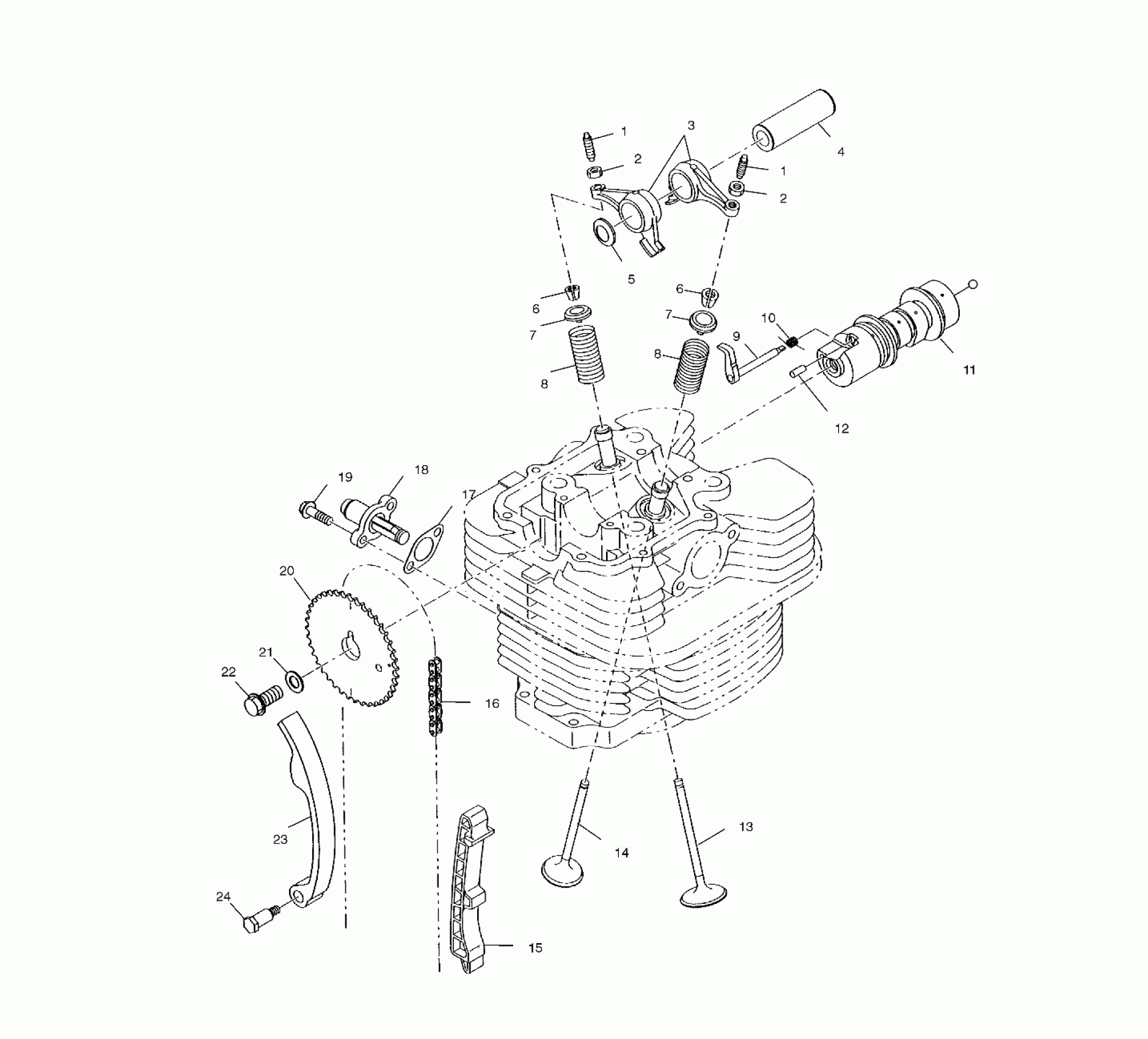

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA INTAKE and EXHAUST - A00CB32FA (4949354935D002) Diagram

#

Description
Price

1

SCREW, ADJ.

3084911

$9.59

1

SCREW, ADJ.

3084911

$9.59

2

NUT(10)

3084912

$3.99

2

NUT(10)

3084912

$3.99

3

ROCKERARM ASM,INTAKE * (Incl. 1,2)

3084910

$115.99

4

SHAFT-ROCKER

3086442

$39.19

5

WASHER-WAVE

3085836

$5.59

6

COLLET,VALVE

3084908

$3.99

6

COLLET,VALVE

3084908

$3.99

7

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

7

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

8

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

8

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

9

LEVER-RELEASE

3086439

Unavailable

10

SPRING-RETURN (If built after 3/1/99)

3086804

Unavailable

10

SPRING-RETURN Substituted by 3086804 (If built before 3/1/99)

3086440

Unavailable

11

CAMSHAFT-COMPLETE Substituted by 3086803 (See Footnote) (Incl. 9,10,12)(If built before 3/1/99)

3086438

Unavailable

11

CAMSHAFT Substituted by 3087120 (See Footnote) (Incl. 9,10,12)(If built after 3/1/99)

3086803

Unavailable

12

PIN,DOWEL

3084899

$7.19

13

VALVE,INTAKE

3085778

Unavailable

14

VALVE-EXHAUST

3086441

$51.99

15

GUIDE-CHAIN

3086445

$35.99

16

CHAIN-TIMING

3086444

$63.99

17

GASKET-TENSIONER

3086448

$6.39

18

TENSIONER,ASM.

3086493

Unavailable

19

BOLT&WASHER ASM.

3083361

Unavailable

20

Sprocket 2

3086443

Unavailable

21

Washer

3083663

Unavailable

22

BOLT,FLANGE

3086449

$7.19

23

LEVER-COMPLETE

3086446

$79.99

24

BOLT,PIVOT,LEVER

3084924

Unavailable
