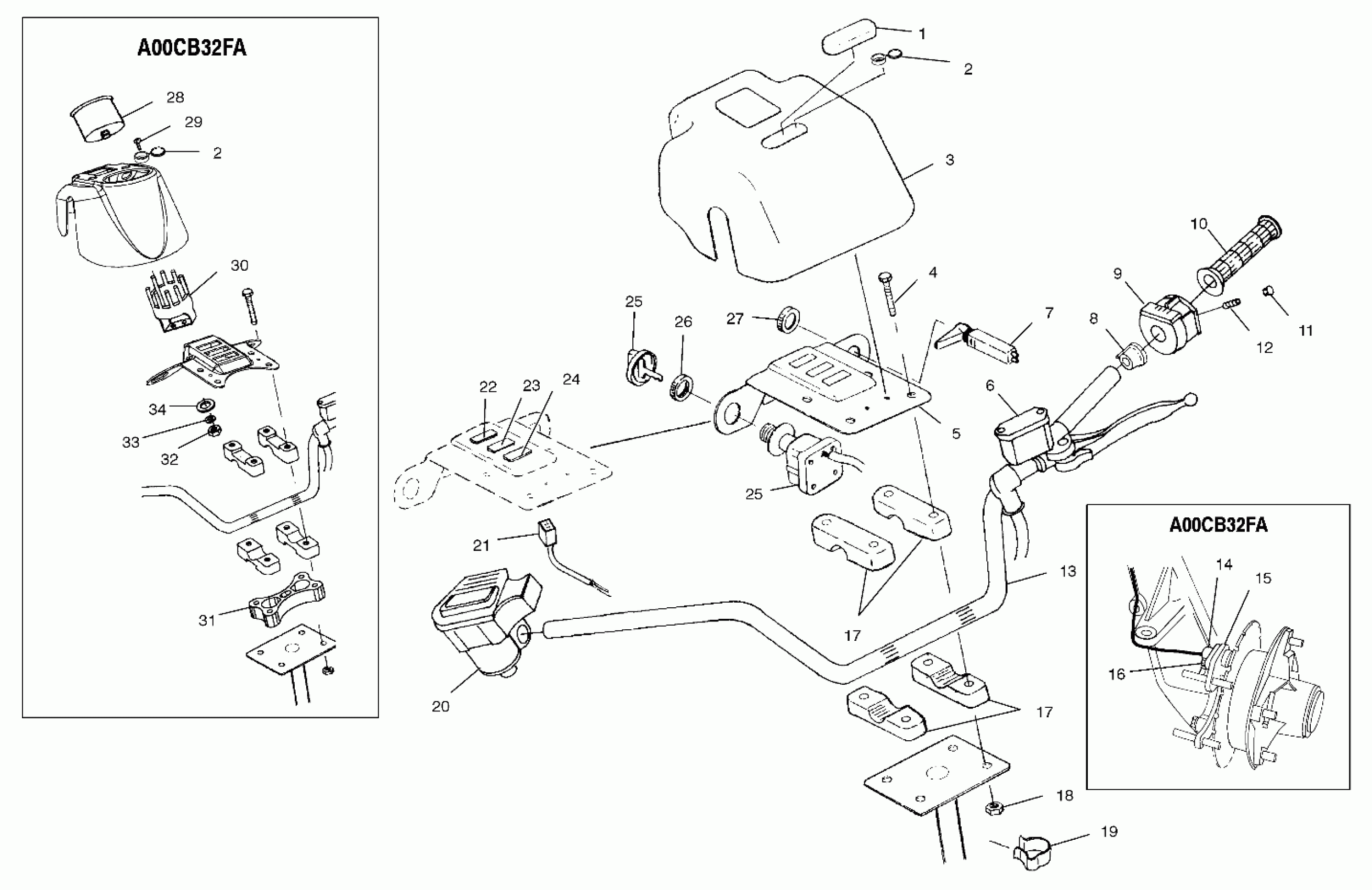

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA HANDLEBAR - A00CB32AA (4949354935B011) Diagram

#

Description
Price

1

COVER-LOGO, BLK (AA)(CA)

5432247-070

Unavailable

2

COVER,SCREW,HINGED,BLK

5432420

Unavailable

2

COVER,SCREW,HINGED,BLK

5432420

Unavailable

3

PANEL,INST.,BLK (AA)(CA)

5432246-070

Unavailable

3

PANEL-INST BLACK (FA)

5433183-070

Unavailable

4

SCREW (AA)(CA)

7517216

Unavailable

4

SCREW (FA)

7517224

Unavailable

5

BRKT,INST.PANEL,BLK (AA)(CA)

5241397-067

$24.79

5

BRKT,ACCESS.INST.PANEL,BLK (FA)

5241698-067

$6.59

6

Asm., Master Cylinder (See Control - Master Cyl./Brake Line Pg. B9 for Details)

----

Unavailable

7

KIT-CHOKE CONTROL

2200188

$28.32

7

CABLE,CHOKE,W/ADJUSTER

7080726

$101.17

8

SPACER,SWITCH,LH

5432926

$2.62

9

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$206.41

10

GRIP, HANDLEBAR

5431030

$28.32

11

PLUG,HOLE(10)

5432952

$6.46

12

SCREW,SET

7517625

$4.76

13

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

14

CAP-HALL SENSOR (FA)

5132382

$24.27

15

SENSOR,HALLEFFECT (FA)

4010298

$117.37

16

SCREW (FA)

7517658

$5.56

17

BLOCK,H'BAR,(300)

5630629

$11.51

17

BLOCK,H'BAR,(300)

5630629

$11.51

18

NUT-LOCK(10)

7542122

$1.19

19

CLIP,CABLE RETAIN,(10)

7080631

Unavailable

20

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B6, Ref. 5)

----

Unavailable

21

HARNESS-CONTROL PANEL,325 (AA)(CA)

2460715

Unavailable

21

HARNESS,CTRL.PNL,325,INTL (FA)

2460841

Unavailable

22

INDIC"NEUT./REV."

4040054

$32.37

23

INDIC"HOT TEMPERATURE"

4040053

$32.37

24

PLUG,INDIC.HOLE

5430967

$6.46

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Spare key must be cut from existing key.

4010278

$14.56

25

Blank, Key, Series 2200, 2300, 2700, 2800. Spare key must be cut from existing key.

4010321

$14.29

25

SWITCH,IGNITION

4110264

$109.27

25

COVER, KEY Substituted by 5433534

5431964

$13.75

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Spare key must be cut from existing key.

4010278

$14.56

25

Blank, Key, Series 2200, 2300, 2700, 2800. Spare key must be cut from existing key.

4010321

$14.29

25

SWITCH,IGNITION

4110264

$109.27

25

COVER, KEY Substituted by 5433534

5431964

$13.75

26

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

27

Nut

7080229

$19.84

28

SPEEDOMETER,MAG325,6-PULSE,ASM. Substituted by 3280364 (FA)

3280337

Unavailable

29

SCREW,(10) (FA)

7512024

$4.76

30

CABLE-SPEEDOMETER (FA)

3280201

Unavailable

31

BLOCK,RISER,300,GEN 4 (FA)

5630633

$18.89

32

NUT, BRASS(10) (FA)

7541933

Unavailable

33

WASHER,13/64X1/2X18GA,FL-Y (FA)

7558212

$0.79

34

WASHER, LOCK,(S.S.)(10) (FA)

7555868

Unavailable
