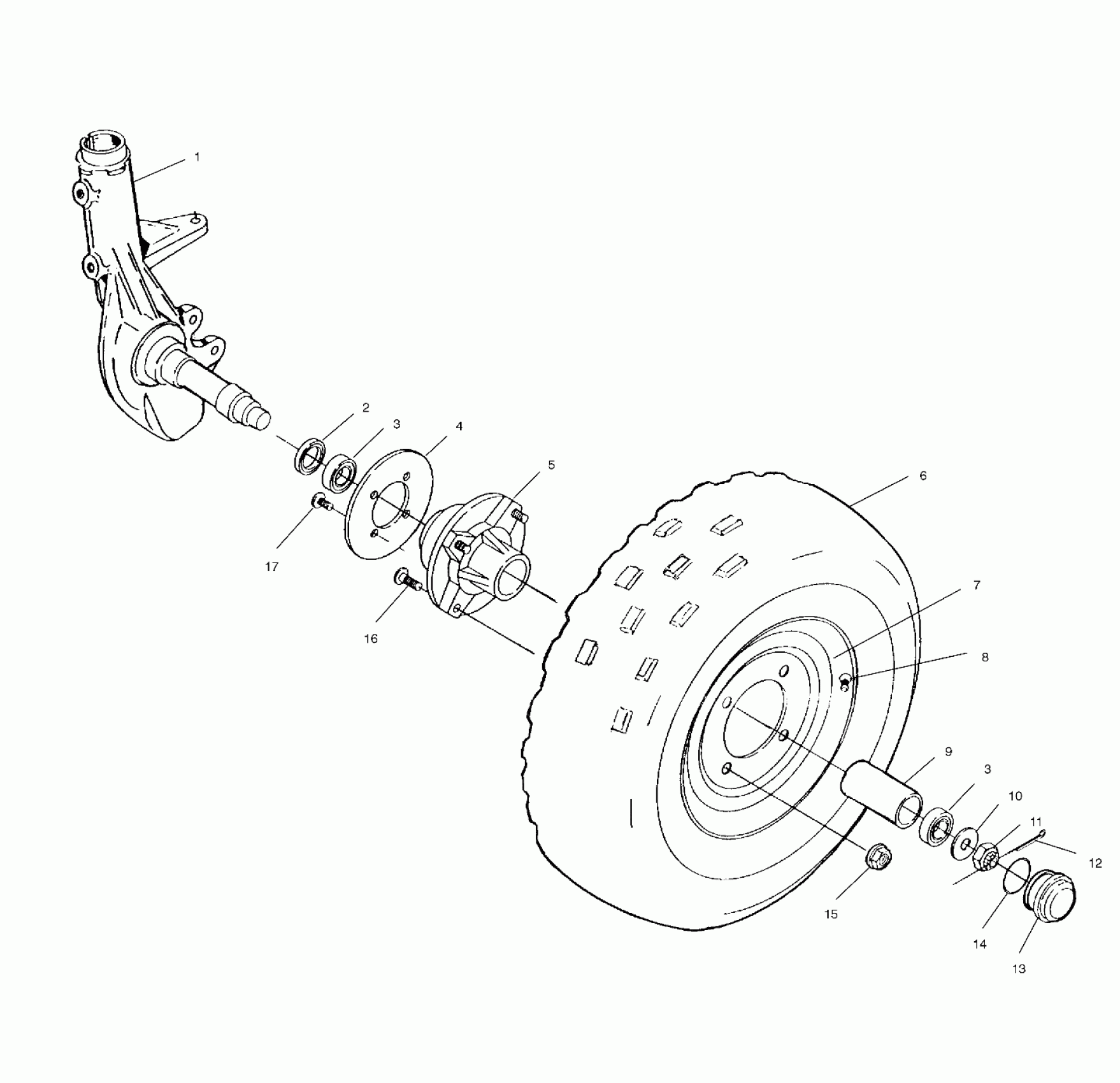

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA FRONT WHEEL - A00CB32AA (4949354935B004) Diagram

#

Description
Price

1

Support, Strut & Spindle (See Strut Pg. B8, Ref. 16)

----

Unavailable

2

SEAL,FRONT HUB

3610020

Unavailable

3

BEARING,BALL

3513519

$19.84

3

BEARING,BALL

3513519

$19.84

4

DISC,BRAKE,NOTCHED

5211869

Unavailable

5

HUB,WHEEL,2WD. Substituted by 1520453

5130940

$185.99

6

TIRE,24X8-12,TITAN (24x8-12)

5411709

Unavailable

7

RIM,FRONT,(SILVER)

1520269-117

$90.87

8

VALVE-RIM

1525017

$6.46

9

SPACER, HUB,FRONT

5010256

Unavailable

10

WASHER(10)

7555721

$1.19

11

NUT(10)

7542712

$9.52

12

COTTER PIN(10)

7661407

$4.76

13

CAP, HUB

5431018

$14.56

14

O RING

5410470

$2.41

15

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

16

STUD(10)

7515523

$3.17

17

BOLT(10)

7512325

$2.38
