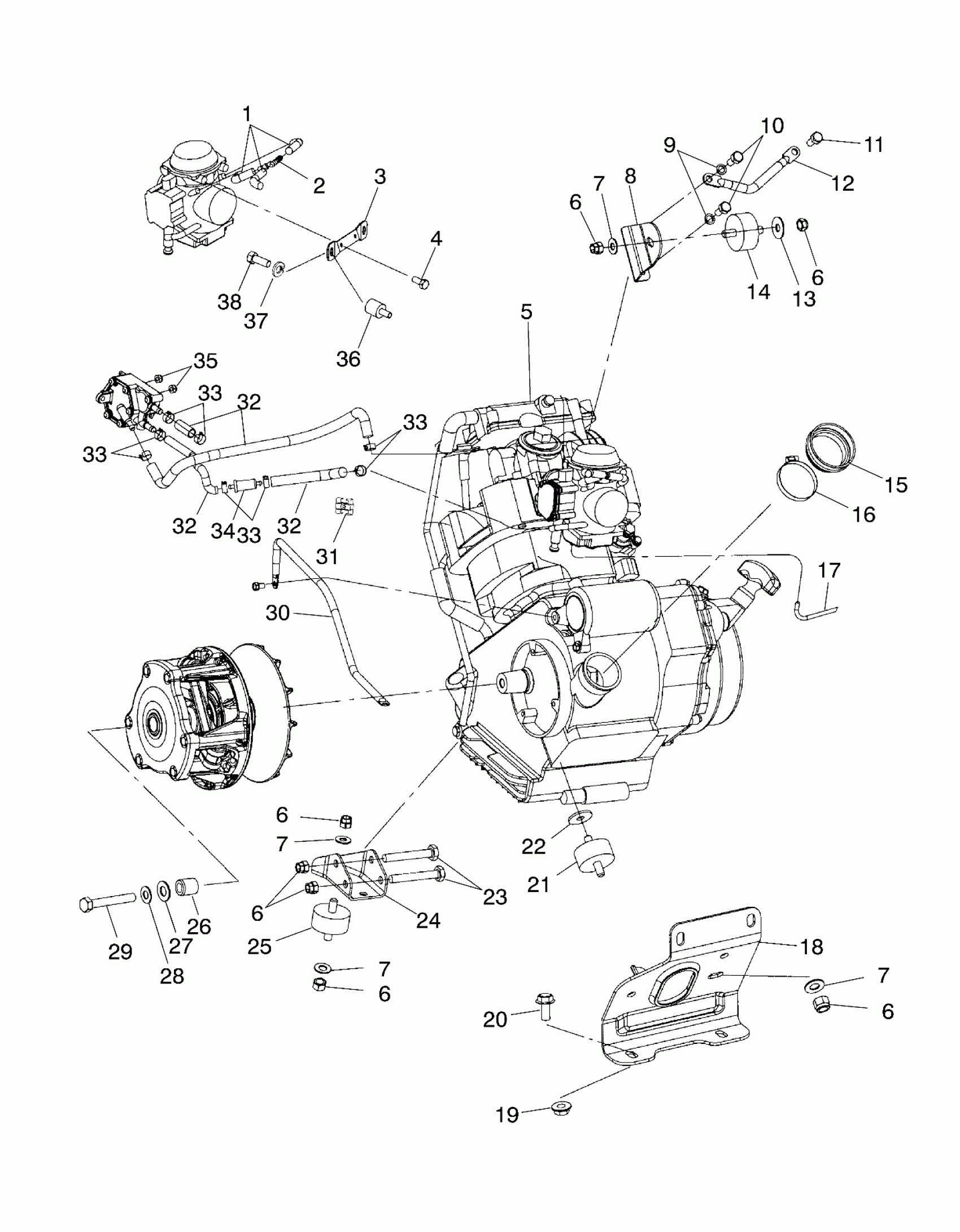

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA ENGINE MOUNTING - A00CB32AA (4949354935A013) Diagram

#

Description
Price

1

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

BRKT,CARB,325,BLK

5243720-067

Unavailable

4

SCREW & WASHER(10)

3084205

$3.99

5

ENG.ES32PFE Substituted by 3087021 The Short Block assembly contains a crankcase asm., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warran

3085823

Unavailable

6

NUT LOCK(10)

7542403

$3.99

6

NUT LOCK(10)

7542403

$3.99

6

NUT LOCK(10)

7542403

$3.99

6

NUT LOCK(10)

7542403

$3.99

6

NUT LOCK(10)

7542403

$3.99

6

NUT LOCK(10)

7542403

$3.99

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

8

BRKT,MOTOR MOUNT,325,BLK

5243641-067

$5.71

9

LOCK WASHER(10)

7552901

$1.49

10

BOLT(10)

7512315

$4.79

11

BOLT(10)

7512232

$1.49

12

CABLE,GND-ENGINE

4010132

Unavailable

13

WASHER(10)

7555823

$3.99

14

MOUNT,R.RUBBER

3110068

$38.60

15

BOOT-CLUTCH INTAKE

5411721

Unavailable

16

CLAMP, NARROW BAND(10)

7080511

$4.79

17

DESC NOT_AVAILABLE

8360009-100

Unavailable

18

MOUNT,ENGINE,REAR 325,BLK (If built before 12/01/99)

1012960-067

$14.14

18

MOUNT,ENGINE,REAR 325,BLK (If built after 12/01/99)

1013133-067

$15.67

19

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

20

SCREW ,(10)

7517289

$4.79

21

MOUNT,RUBBER,REAR,60 DURO

3021119

Unavailable

22

WASHER, FLAT(10)

7555815

$3.99

23

BOLT(10)

7515417

$4.79

24

MOUNT-LOWER FRONT 325,BLK

5243288-067

Unavailable

25

MOUNT,RUBBER,ENGINE,45 DURO

3021181

Unavailable

26

BUSHING-.437 X.770 X.50

5430261

$7.19

27

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

29

BOLT(10)

7512566

$30.79

30

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

31

T-CLIP(10)

7080482

$6.39

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

34

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

35

NUT-M5X.8,HX NYL-Y

7546601

$1.49

36

MOUNT,CARB,RUBBER Substituted by 3021186

3110079

$11.99

37

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

38

SCREW(10)

7517615

$3.19
