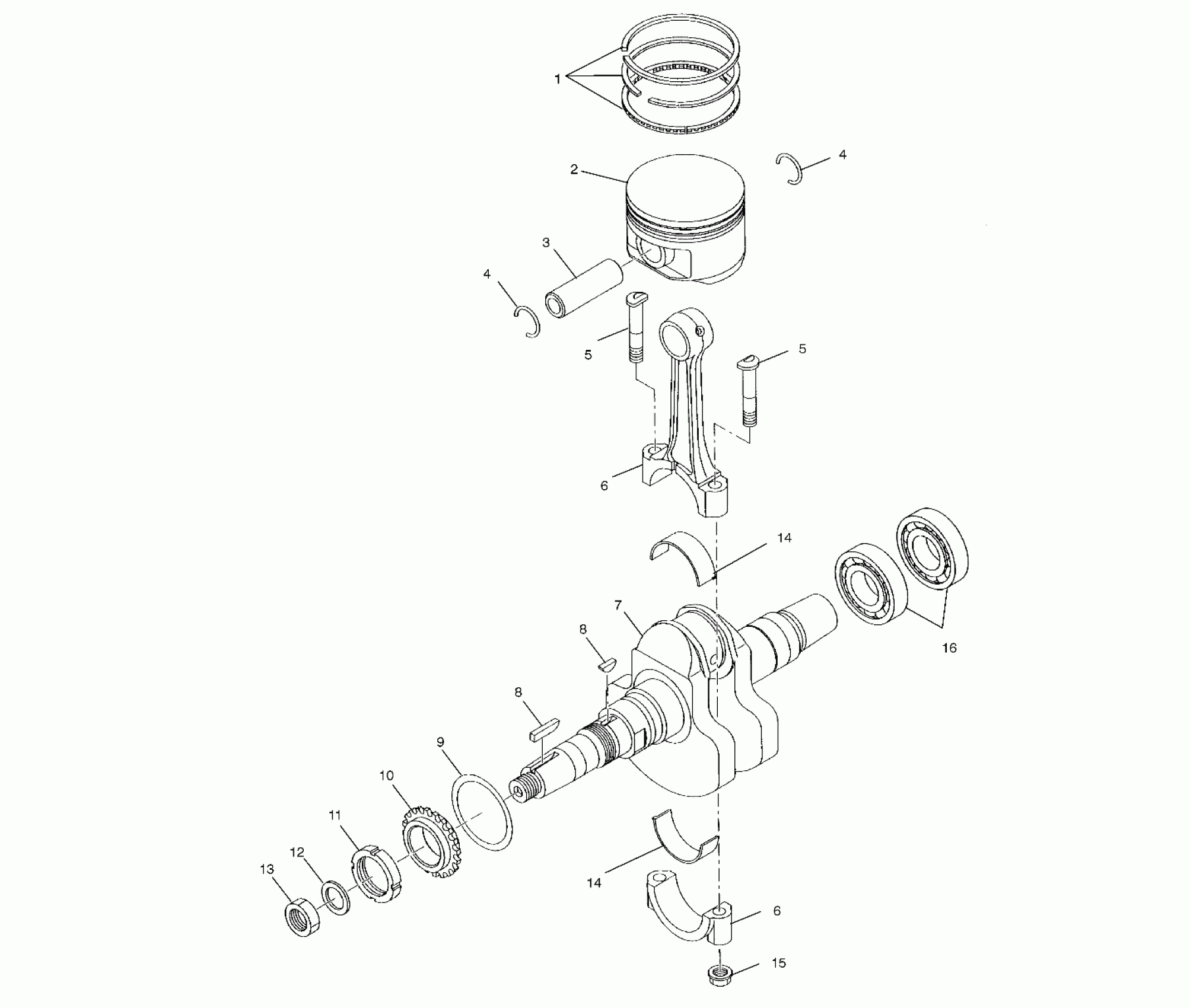

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA CRANKSHAFT and PISTON - A00CB32FA (4949354935D001) Diagram

#

Description
Price

1

PISTONRING SET,,STD * (STD)

3085774

Unavailable

1

PISTONRING SET,(.25MM O/S) (0.25 O/S)

3085775

Unavailable

1

PISTONRING SET,(.50MM O/S) (0.50 O/S)

3085776

Unavailable

2

PISTON(STD) (STD)(Incl. 4)(If built after 3/1/99 use Set below)

3086800

Unavailable

2

PISTON(.25 O/S) (0.25 O/S)(Incl. 4)

3086801

$100.79

2

PISTON(.50 O/S) (0.50 O/S)(Incl. 4)

3086802

$120.94

2

PISTON SET (STD) Substituted by 3086800 (STD)(Incl. 4)

3086431

Unavailable

2

PISTON SET (0.25 O/S) Substituted by 3086801 (0.25 O/S)(Incl. 4)

3086432

$100.79

2

PISTON SET (0.50 O/S) Substituted by 3086802 (0.50 O/S)(Incl. 4)(If built before 3/1/99 use above Set)

3086433

Unavailable

3

PIN-PISTON

3086846

Unavailable

4

CLIP,(10)

3084167

$6.39

4

CLIP,(10)

3084167

$6.39

5

Bolt

3086425

Unavailable

5

Bolt

3086425

Unavailable

6

CONNECTING ROD ASM. (Incl. 5,15)

3087016

$181.46

6

CONNECTING ROD ASM. (Incl. 5,15)

3087016

$181.46

7

CRANKSHAFT-COMPLETE Substituted by 3087051 (Incl. 16)

3086422

Unavailable

7

CRANKSHAFT Substituted by 3086422 (If built before 3/1/99)

3086423

Unavailable

7

CRANKSHAFT Substituted by 3086422 (If built after 3/1/99)

3086797

Unavailable

8

KEY, WOODRUFF,(10)

3240168

$19.99

8

KEY, WOODRUFF,(10)

3240168

$19.99

9

SPACER .4

3086434

Unavailable

9

SPACER 1.0

3086437

Unavailable

9

SPACER .8

3086436

$8.79

9

SPACER .6

3086435

Unavailable

10

Sprocket 1

3086492

$27.99

11

NUT,SLIT

3085528

$35.99

12

WASHER Substituted by 3086767

3083904

Unavailable

13

LOCKNUT

3083905

Unavailable

14

BEARING (STD)

3086427

Unavailable

14

BEARING-.05MM (0.05 U/S)(If built after 3/1/99)

3086798

Unavailable

14

BEARING-.25MM (0.25 U/S)(If built after 3/1/99)

3086799

$15.99

14

BEARING (STD)

3086427

Unavailable

14

BEARING-.05MM (0.05 U/S)(If built after 3/1/99)

3086798

Unavailable

14

BEARING-.25MM (0.25 U/S)(If built after 3/1/99)

3086799

$15.99

15

Nut

3086426

$4.79

16

BEARING,BALL

3085815

$43.99
