Description

Price

1

BUSHING, STARTER

3083669

Unavailable

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

CRANKCASE ASM. Substituted by 3086793 (Incl. 1-5,7,8,12, 18,21,22)(If built before 3/1/99)

3086394

Unavailable

3

CRANKCASE,ASM. Substituted by 3087122 (Incl. 1-5,7,8,12, 18,21,22)(If built after 3/1/99)

3086793

Unavailable

4

BEARING-BALL

3086395

Unavailable

5

Pin, Dowel

3084840

Unavailable

6

SCREW & WASHER(10)

3084205

$3.99

7

SEAL, OIL

3084839

$27.99

8

Pipe

3085850

$51.99

9

GUAGE-OIL Substituted by 3086794 (If built before 3/1/99)

3086404

Unavailable

9

GAUGE-OIL (If built after 3/1/99)

3086794

Unavailable

10

O-RING

3086405

$5.75

11

PIN,STRAIGHT

3084838

Unavailable

12

Plug

3086397

Unavailable

13

Union

3084842

Unavailable

14

GASKET-OIL COOLER

3086400

$24.27

15

UNION

3086403

Unavailable

16

ADAPTER-OIL COOLER * (Incl. 13,15)

3086402

Unavailable

17

CONNECTOR-OIL COOLER

3086401

$36.31

18

BOLT,FLANGE

3084841

Unavailable

19

PLUG Substituted by 3086749

3083453

Unavailable

20

GASKET

3082956

$4.84

21

BOLT,FLANGE

3086398

Unavailable

22

BOLT,FLANGE

3086399

$9.59

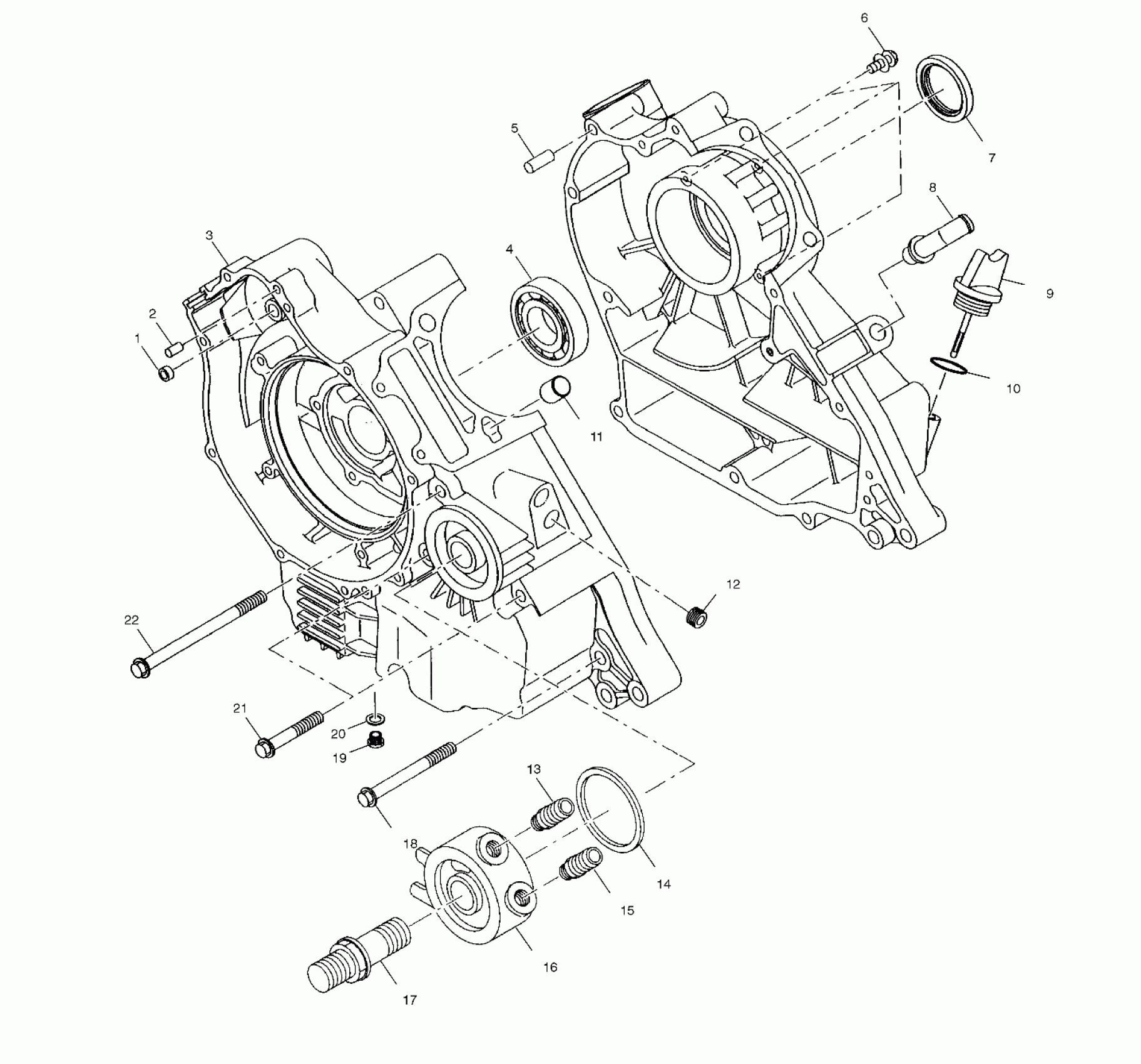

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA CRANKCASE - A00CB32AA (4949354935C013) Diagram

BUSHING, STARTER

PIN, DOWEL Substituted by 3086838

CRANKCASE ASM. Substituted by 3086793 (Incl. 1-5,7,8,12, 18,21,22)(If built before 3/1/99)

CRANKCASE,ASM. Substituted by 3087122 (Incl. 1-5,7,8,12, 18,21,22)(If built after 3/1/99)

BEARING-BALL

Pin, Dowel

SCREW & WASHER(10)

SEAL, OIL

Pipe

GUAGE-OIL Substituted by 3086794 (If built before 3/1/99)

GAUGE-OIL (If built after 3/1/99)

O-RING

PIN,STRAIGHT

Plug

Union

GASKET-OIL COOLER

UNION

ADAPTER-OIL COOLER * (Incl. 13,15)

CONNECTOR-OIL COOLER

BOLT,FLANGE

PLUG Substituted by 3086749

GASKET

BOLT,FLANGE

BOLT,FLANGE
