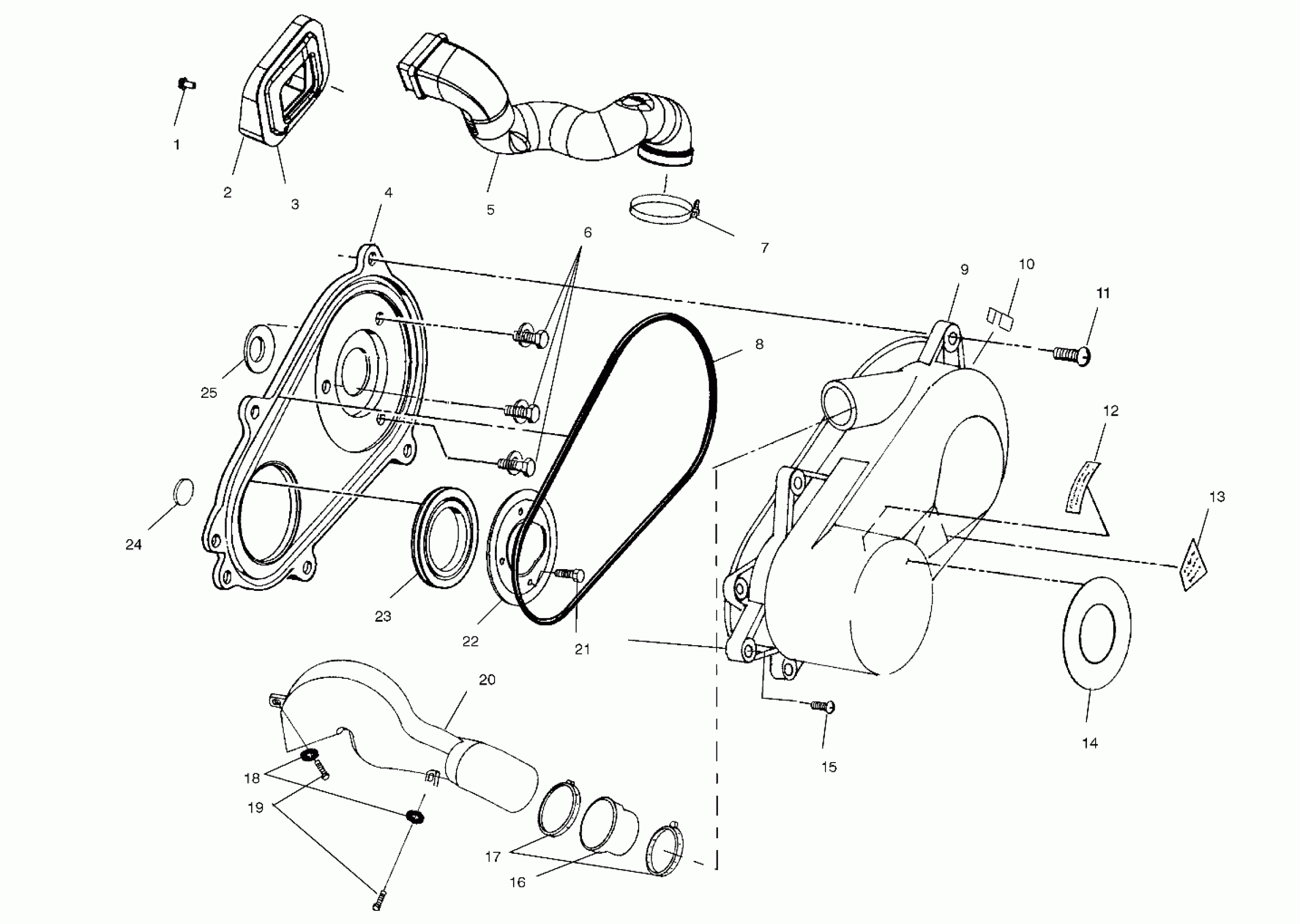

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA CLUTCH COVER - A00CB32AA (4949354935B014) Diagram

#

Description
Price

1

BOLT(10)

7512232

$1.49

2

FOAM,CLUTCH AIR INLET,ASM.

2632116

$54.99

3

DESC NOT_AVAILABLE

5433453

Unavailable

4

INNER CLUTCH CVR,SVC,KIT [No Longer Available] (Incl. 8,11,15) (If built before 1/03/00)

2201520

$87.30

4

INNER CLUTCH CVR,SVC,ASM. (If built after 1/03/00)

2201676

$123.99

5

DUCT,INLET,325

5433363

Unavailable

6

SCR-TFHL-1/4-20X0.88 G5 Z SEMS (If built after 1/03/00)

7517599

$5.59

6

BOLT /WASHER,1-1/8 (If built before 1/03/00)

7517601

$11.43

7

CLAMP,NARROW BAND(1.77/2.75)

7080909

$7.99

8

SEAL,CLUTCHCOVER

5521301

$30.88

9

COVER,CLUTCH,OUTER,HV Substituted by 5433540 (If built before 2/13/99)

5432849

$169.87

9

COVER-CLUTCH,OUTER,HV,ST-801 (If built before 1/03/00)

5433540

$175.99

9

COVER,CLUTCH OUTER,HV GREY Substituted by 5433451-070 (If built after 1/03/00)

5433451-328

$178.08

10

CLIP,CLUTCH COVER(10)

7670051

$2.99

11

SCREW(10) (If built before 1/03/00)

7512093

$1.49

11

SCREW(10) (If built after 1/03/00)

7512094

$1.59

12

DECAL,WARNING,CLUTCH CVR (If built after 10/04/99)

7078689

Unavailable

12

DECAL,CLUTCH COVER Substituted by 7078689 (If built before 10/04/99)

7074946

Unavailable

13

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

14

DECAL,AUTO.TRANSMISSION (AA)(CA)

7074782

Unavailable

14

DECAL"AUTO./EBS",CLUTCH (FA)

7077666

Unavailable

15

SCREW(10)

7512094

$1.59

16

BOOT,DUCT,HI-FLOW

5411489

Unavailable

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

18

WASHER(10)

7558301

$1.49

19

SCREW,(10)

7517386

$1.49

20

DUCT-AIR OUTLET CLUTCH (If built before 11/05/99)

5433172

Unavailable

20

DUCT,AIR OUTLET,CLUTCH (If built after 11/05/99)

5433744

Unavailable

21

SCREW AND WASHER (See Crankcase Pg. C13, Ref. 6)

-------

Unavailable

22

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

23

Seal, Cover Case

5410575

Unavailable

24

STOPPER-INNER CLUTCH COVER

5411795

Unavailable

25

SEAL,COVER CASE (If built before 1/03/00)

5410489

$13.59

25

SEAL-CLUTCH COVER,TRANSMISSION (If built after 1/03/00)

5411901

Unavailable
