CARBURETOR - A00CB32FA (4949354935D003)

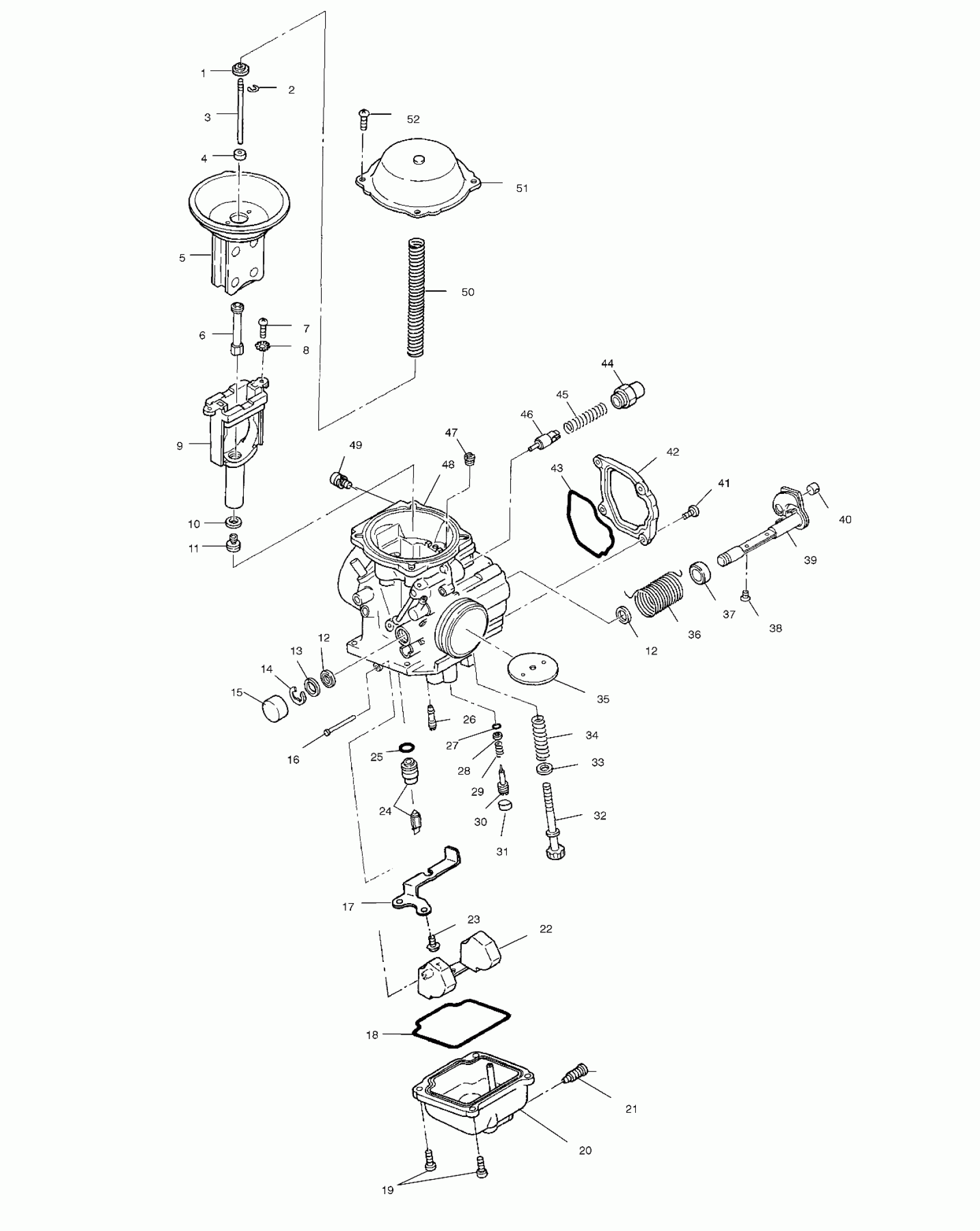

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA CARBURETOR - A00CB32FA (4949354935D003) Diagram
#
1
RING
3130507
$5.59
2
E-RING,(10)
3130508
$6.46
3
JET NEEDLE,(J8-5F14)
3130730
Unavailable
4
RING
3130752
$5.59
5
DIAPHRAGM ASM.
3130732
$123.99
6
NEEDLE-JET(P-0M) (P-0M)
3131130
Unavailable
7
SCREW
3130541
$11.19
8
WASHER,SPRING
3130540
$4.79
9
JET BLOCK,ASM.
3131128
Unavailable
10
WASHER (10)
3130014
$1.59
11
MAIN JET,#142.5 (See Footnote) (#142.5)(If built before 3/1/99)
3130566
$8.08
11
MAIN JET,#145 (#145)(If built after 3/1/99)
3130567
$8.08
12
SEAL
3130515
$11.99
12
SEAL
3130515
$11.99
13
PACKING
-------
Unavailable
14
E-RING
3130518
$1.59
15
CAP
3130519
$10.39
16
PIN, FLOAT
3130361
$8.89
17
PLATE
3130594
$27.99
18
O-RING
3130532
$31.99
19
SCREW
3130520
$1.59
20
FLOATBODY ASM.
3130590
$103.99
21
SCREW
3130521
$10.39
22
FLOAT ASM.
3130529
$79.99
23
SCREW
3130591
$3.99
24
VALVE,NEEDLE (1.5)
3130531
Unavailable
25
O-RING
3130533
$5.59
26
JET,PILOT(#50) (#50)
3131132
$24.27
27
O-Ring
3130522
$5.65
28
Washer
3130523
$2.39
29
Spring
3130525
$4.79
30
Adjuster
3131131
$12.99
31
PLUG (If built before 3/1/99 only)
3130905
$7.43
32
SCREW, ADJ.
3130546
$13.59
33
Ring
3130545
$12.13
34
Spring
3130544
$9.59
35
VALVE-THROTTLE(120) (120)
3131126
Unavailable
36
SPRING
3130589
$23.99
37
Ring
3130514
$7.19
38
SCREW
3130501
$3.99
39
SHAFT ASM,THROTTLE
3130513
$79.99
40
GUIDE,CABLE
3130543
$27.99
41
SCREW
3130535
$7.19
42
COVER
3130511
$43.99
43
O-Ring
3130512
$39.99
44
HOLDER,GUIDE
3130199
$28.32
45
SPRING
3130538
$4.79
46
PLUNGER ASM. Substituted by 3130539
3130593
$34.74
47
JET,AIR(#175) (#175)
3131133
Unavailable
48
CARBURETOR,ASM. (See Footnote) (Incl. 1-39,44-52) (If built before 3/1/99)
3131125
Unavailable
48
CARBURETOR,ASM. (See Footnote) (Incl. 1-39,44-52) (If built after 3/1/99)
3131147
Unavailable
49
SCREW & WASHER(10)
3084205
$3.99
50
Spring
3131129
$27.99
51
COVER,ASM.
3131127
Unavailable
52
SCREW-MIKUNI C2=0408
3130592
Unavailable
