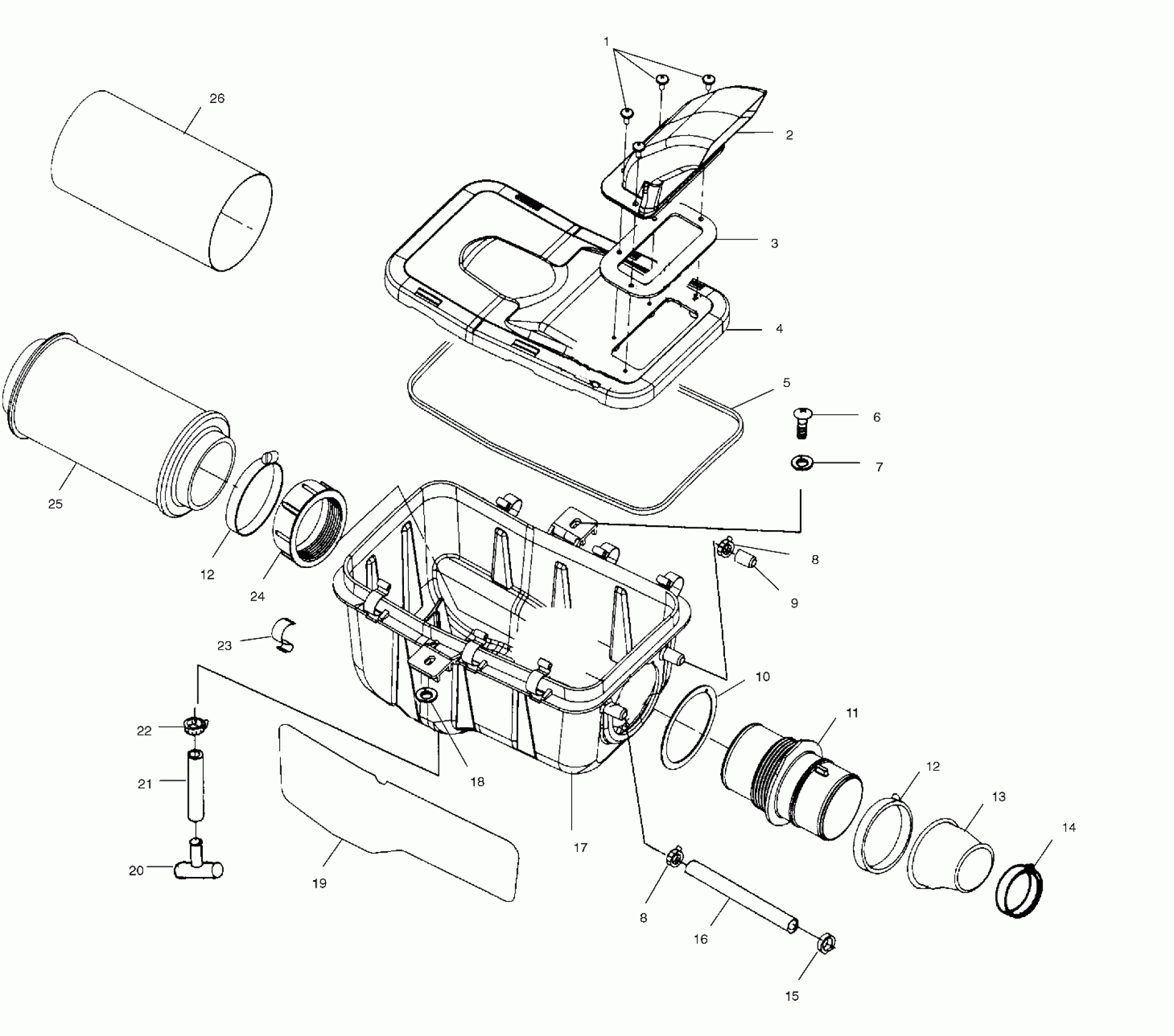

Polaris 325 MAGNUM 2X4 HDS - A00CB32FA AIR BOX - A00CB32AA (4949354935B003) Diagram

#

Description
Price

1

SCREW,SEMS(10)

7517541

$4.79

2

DUCT,INLET,AIRBOX COVER

5432859

Unavailable

3

GASKET,INTAKE

5411422

$6.63

4

COVER,AIRBOX

5432868

$51.99

5

SEAL,AIRBOX COVER

5811482

Unavailable

6

SCREW(10)

7515180

Unavailable

7

WASHER(10)

7558301

$1.49

8

CLAMP,HOSE

7080699

$1.59

8

CLAMP,HOSE

7080699

$1.59

9

CAP,END,AIRBX IN,406-12,3/4BLK

5433396

$4.79

10

GASKET,CARB.IN.DUCT

5830128

Unavailable

11

DUCT-CARB INLET

5433180

$32.37

12

CLAMP,BAND,NARROW

7080413

$3.19

12

CLAMP,BAND,NARROW

7080413

$3.19

13

BOOT-CARB 325 PVT

5411588

Unavailable

14

CLAMP, NARROW BAND(10)

7080511

$4.79

15

CLAMP,HOSE,SPRING

7080694

$6.53

16

HOSE,BREATHER,.47-.38X12" Substituted by 5411848 (If built before 7/26/99)

5411746

$12.30

16

HOSE,BRTHR,.47-.38X12" (If built after 7/26/99)

5411848

$12.39

17

BOX,AIR INTAKE,4-STRK (If built after 7/26/99)

5433678

$127.99

17

BOX,AIR INT,4-STROKE (If built before 7/26/99)

5432774

$117.37

18

INSULATOR

5431863

$3.99

19

FOIL,AIRBOX

5811650

Unavailable

20

Plug, Trap

5432377

Unavailable

21

FUEL LINE

8450059-150

Unavailable

22

CLAMP,HOSE,(10)

7080650

$3.99

23

CLIP,AIRBOX,LOWPROFILE

5243694

Unavailable

24

COLLAR,CARB INLET

5432601

$12.79

25

FILTER,AIR INTAKE

7080595

Unavailable

26

FILTER,PRECLEAN.SLEEVE

5811633

$11.99
