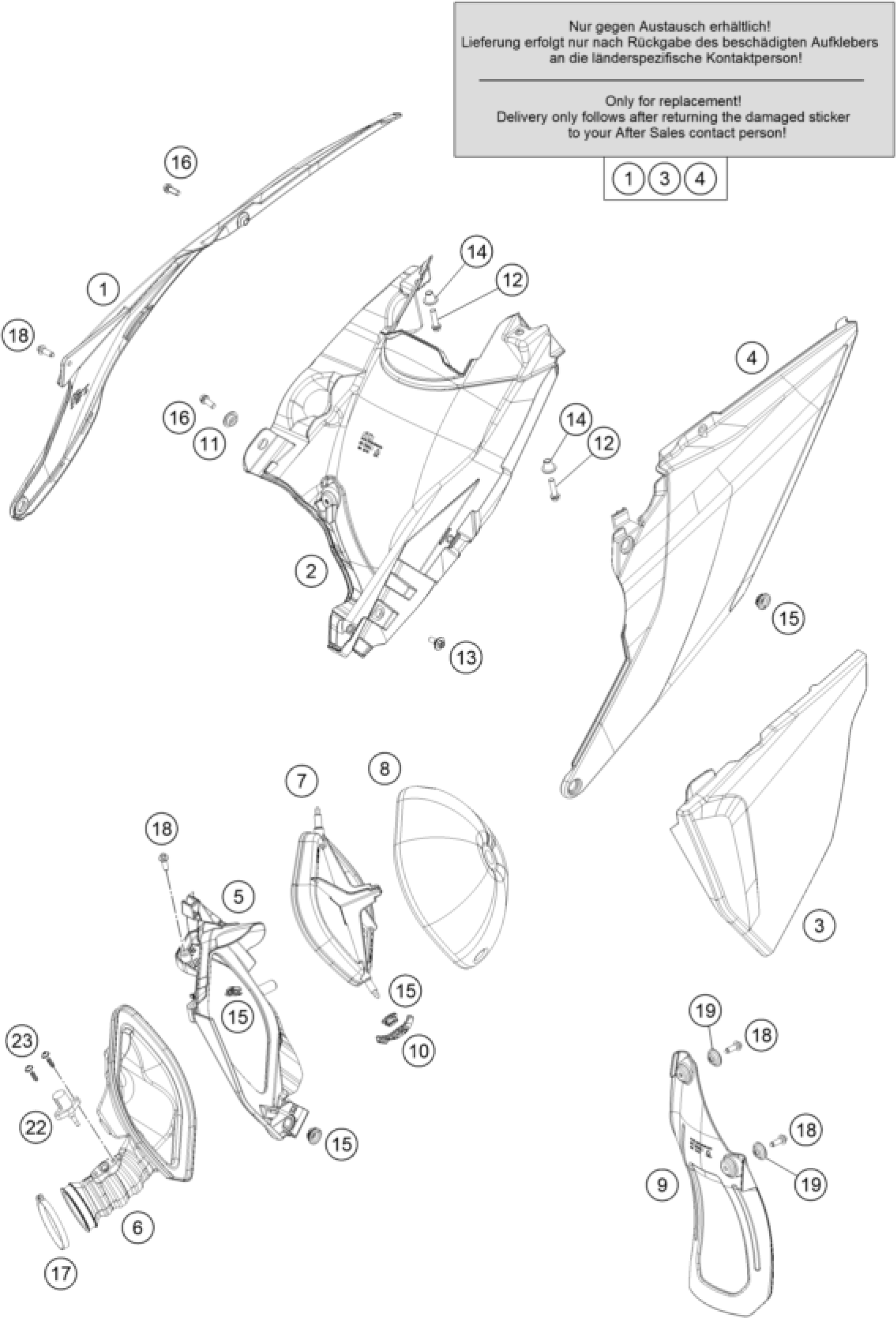

KTM 300 XC-W TPI ERZBERGRODEO 2022 AIR FILTER Diagram

#

Description
Price

1

Air filter cover right

79106104000ABC

$48.27

2

Air filter box

79106001000AB

$29.91

3

Air filter cover left

79106103000ABB

$43.09

4

Air filter cover left

79106105000ABC

$48.27

5

Air filter box front part

79106001010AB

$17.57

6

Air boot

55706026000

$64.41

7

AIR FILTER SUPPORT

50406016000

$18.60

8

AIR FILTER

79006015000

$32.12

9

SPLASH GUARD

79006010000

$15.79

10

FILTER MOUNTING BRACKET

79006017000

$2.05

11

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

12

HH collar screw M6x25 TX30

0025060256

$3.08

13

SPECIAL SCREW M6X15X3

83008000015

$3.08

14

Subframe bush

79103002020

$2.05

15

quick release rubber grommet

47106003160

$4.11

16

HH collar screw M6x16 TX30

0025060166

$3.08

17

HOSE CLAMP 45-65MM

78006027000

$5.23

18

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

19

chain slider bushing

77304066050

$1.49

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

23

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05
