Description

Price

1

HANDLEBAR

7800200100030

$151.84

2

Bar pad cmpl.

77202002144

$22.94

3

Handguard

7960218204430

$26.34

4

GRIP SET SM

79002121100

$23.20

5

Kill switch

50311089200

$37.58

7

THROTTLE CONTROL CASING CPL.

79002010025

$29.16

8

Line guide

83013026000

$3.08

10

throttle cable cpl. 2T DI

55702091000

$118.36

11

Cable tie 200/4.6mm black

44011076200

$1.49

12

MASTER CYLINDER CPL.

54802030144

$240.57

13

Handguard assembly kit

79602084044

$33.99

14

STARTER BUTTON GREY 13

78111074000

$42.91

16

VALVE

54802051000

$19.16

18

Wrap-around handguard

79602979044

$36.54

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

CLAMP CPL. 06

54802005100

$25.80

40

Push rod cmpl.

54802046000

$23.46

41

BOLT KPL.

54802052000

$29.35

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 06

54802032000

$49.92

63

CLUTCH PIPE

79232063000

$112.38

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52

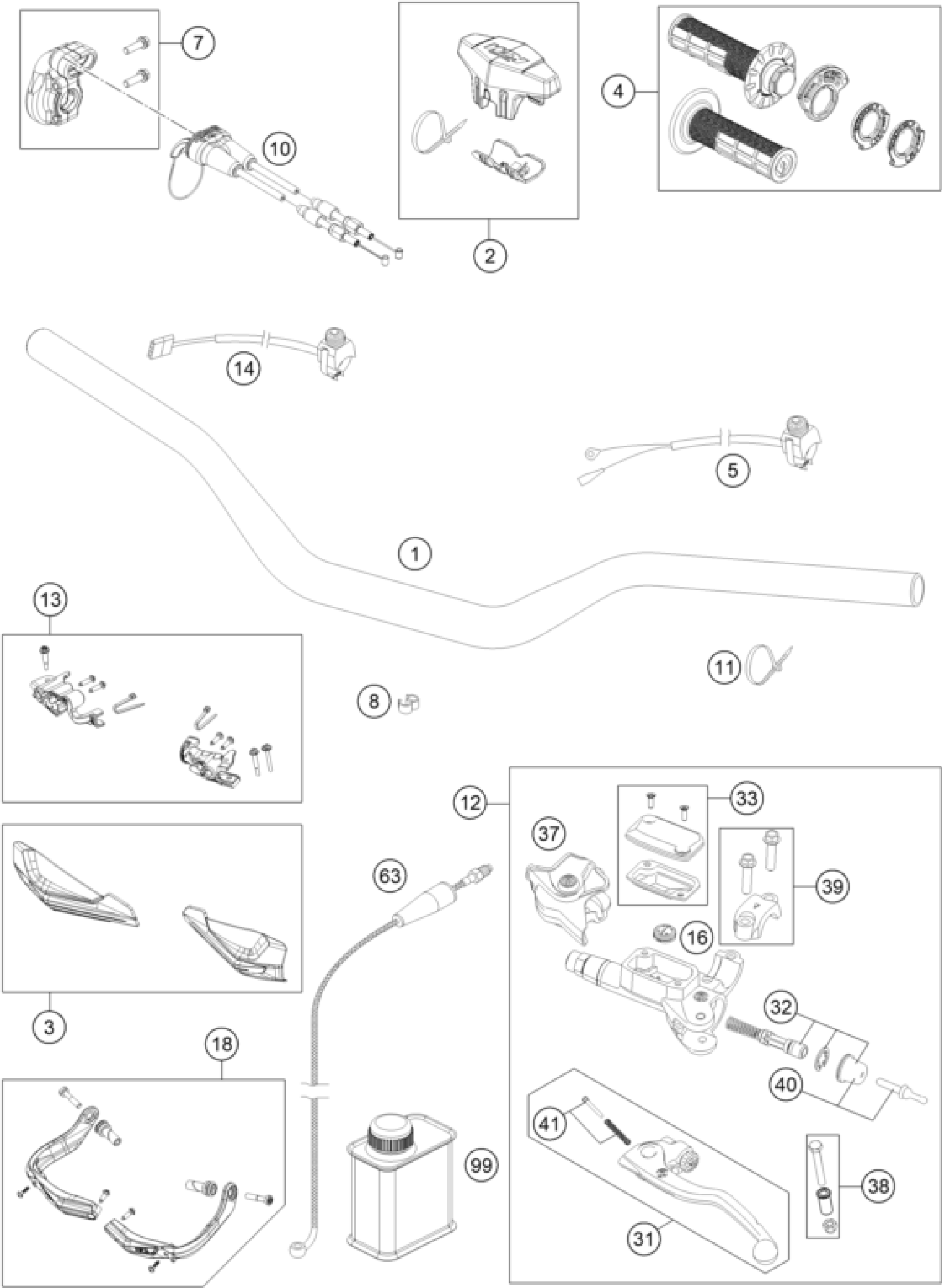

KTM 300 XC-W TPI ERZBERGRODEO 2020 HANDLEBAR, CONTROLS Diagram
