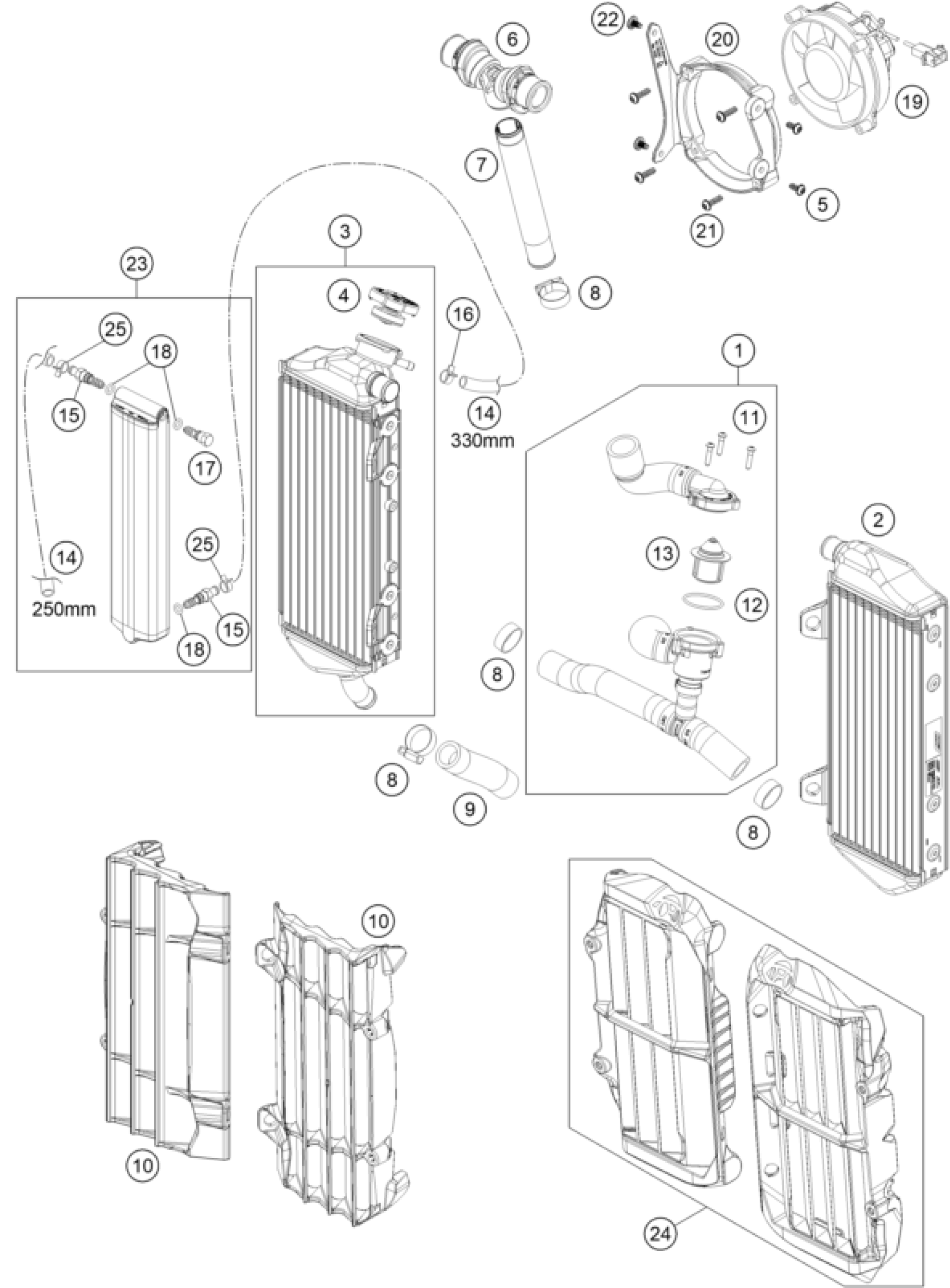

KTM 300 XC-W Six Days TPI 2020 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator hose eng. thermos.

55735026033

$143.61

2

Radiator, left 19

50535007100

$205.13

3

Radiator right

50535008100

$256.18

4

RADIATOR CAP 1,8 BAR

79035016000

$28.51

5

COLLAR SCREW M6X12 TX

0024060123

$1.49

6

Y-hose cpl.

79135071044

$40.48

7

threaded bushing

79135073000

$13.27

8

HOSE CLAMP GEMI 18-29

10001020000

$2.05

9

preformed hose

55535027000

$6.63

10

radiator protector le/ri black

7913503400030

$17.85

11

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

12

O-RING 32,00X2,00

0770320020

$2.05

13

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

14

PVC-HOSE 6X9

50335030001

$6.72

18

O-RING 6,00X2,00 NBR 70

0770060020

$2.05

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

17

Fastener

79615919000

Unavailable

15

HOSE CONNECTION

79615019000

$11.49

23

Reservoir

79635965044

Unavailable

20

Radiator fan support

79735943000

$5.94

19

FAN CPL. 12V LC4 2000

58435041000

$137.53

21

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

22

EJOT SHEETTRACS SCREW 50X10

0080150100

$1.49

24

Radiator protection

79635936044

$58.64

25

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08
