Description

Price

1

Right air filter box cover

7900600400028I

$61.19

2

AIR BOX BOTTOM

7900600100028

$29.91

3

Left air filter box cover

7900600300028I

$51.16

4

FILTERBOX SIDE

7900600700028

$15.97

5

FILTER BOX FRONT PART

7900600101028

$17.57

6

Airbox rubber

55606026000

$60.02

7

AIR FILTER SUPPORT

50406016000

$18.60

8

AIR FILTER

79006015000

$32.12

9

SPLASH GUARD

79006010000

$15.79

10

FILTER MOUNTING BRACKET

79006017000

$2.05

11

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

12

HH collar screw M6x12 TX30

0025060126

$3.08

13

SPECIAL SCREW M6X15X3

83008000015

$3.08

14

RUBBER L=145MM

50303018000

$6.44

15

quick release rubber grommet

47106003160

$4.11

16

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

17

HOSE CLAMP 45-65MM

78006027000

$5.23

18

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

19

chain slider bushing

77304066050

$1.49

20

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

21

THROTTLE CAP

50406012040

$30.85

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

23

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

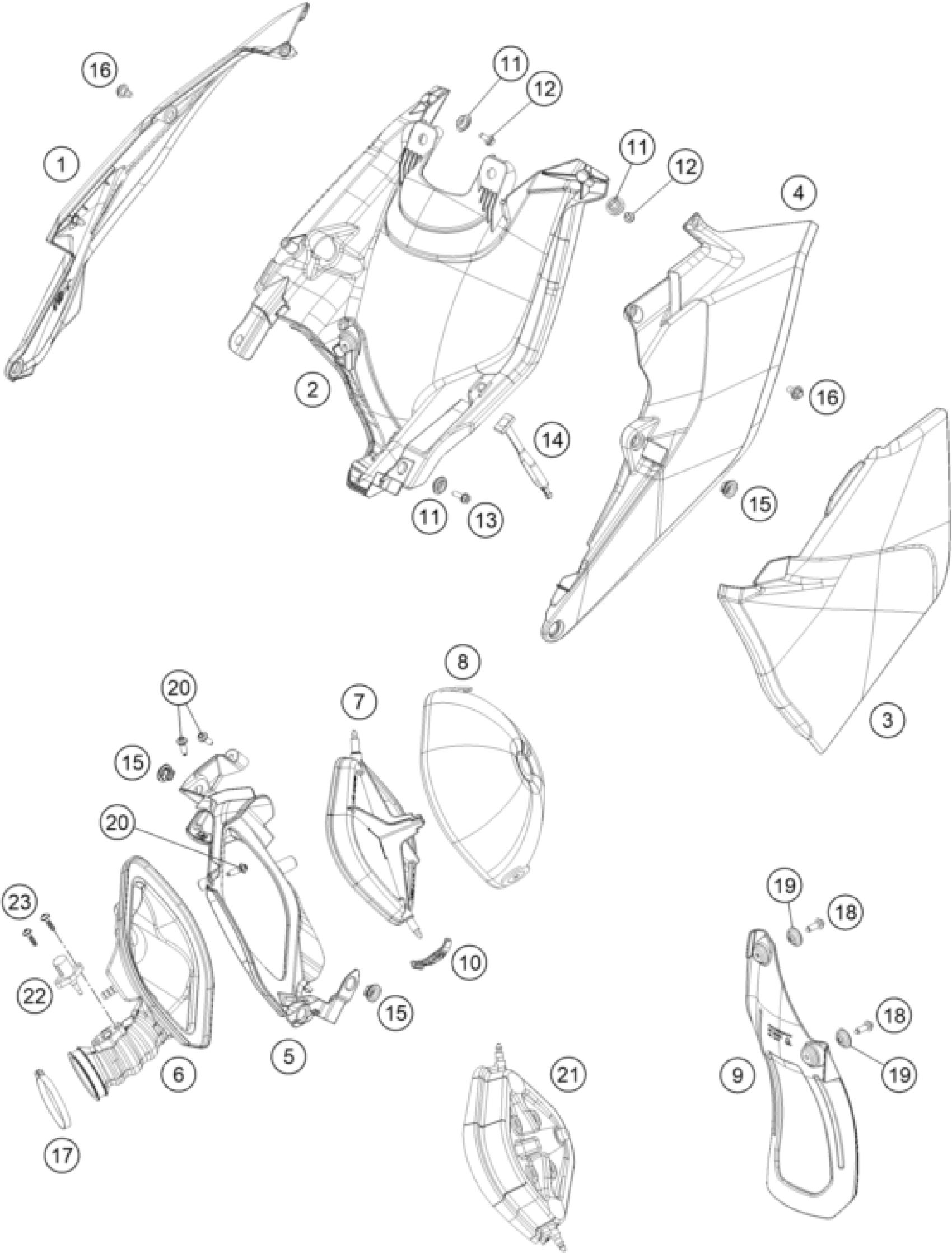

KTM 300 XC-W Six Days TPI 2019 AIR FILTER Diagram

Right air filter box cover

AIR BOX BOTTOM

Left air filter box cover

FILTERBOX SIDE

FILTER BOX FRONT PART

Airbox rubber

AIR FILTER SUPPORT

AIR FILTER

SPLASH GUARD

FILTER MOUNTING BRACKET

COLLAR BUSH. F.REAR FENDER 07

HH collar screw M6x12 TX30

SPECIAL SCREW M6X15X3

RUBBER L=145MM

quick release rubber grommet

SPECIAL SCREW M6X12,5 WS=8

HOSE CLAMP 45-65MM

SCREW F. PLASTIC K60X20AL SW6

chain slider bushing

SCREW FOR PLASTIC K60X20 SW6

THROTTLE CAP

AMBIENT-AIR TEMPERATURE SENSOR

SCREW FOR PLASTIC K50X18 T20
