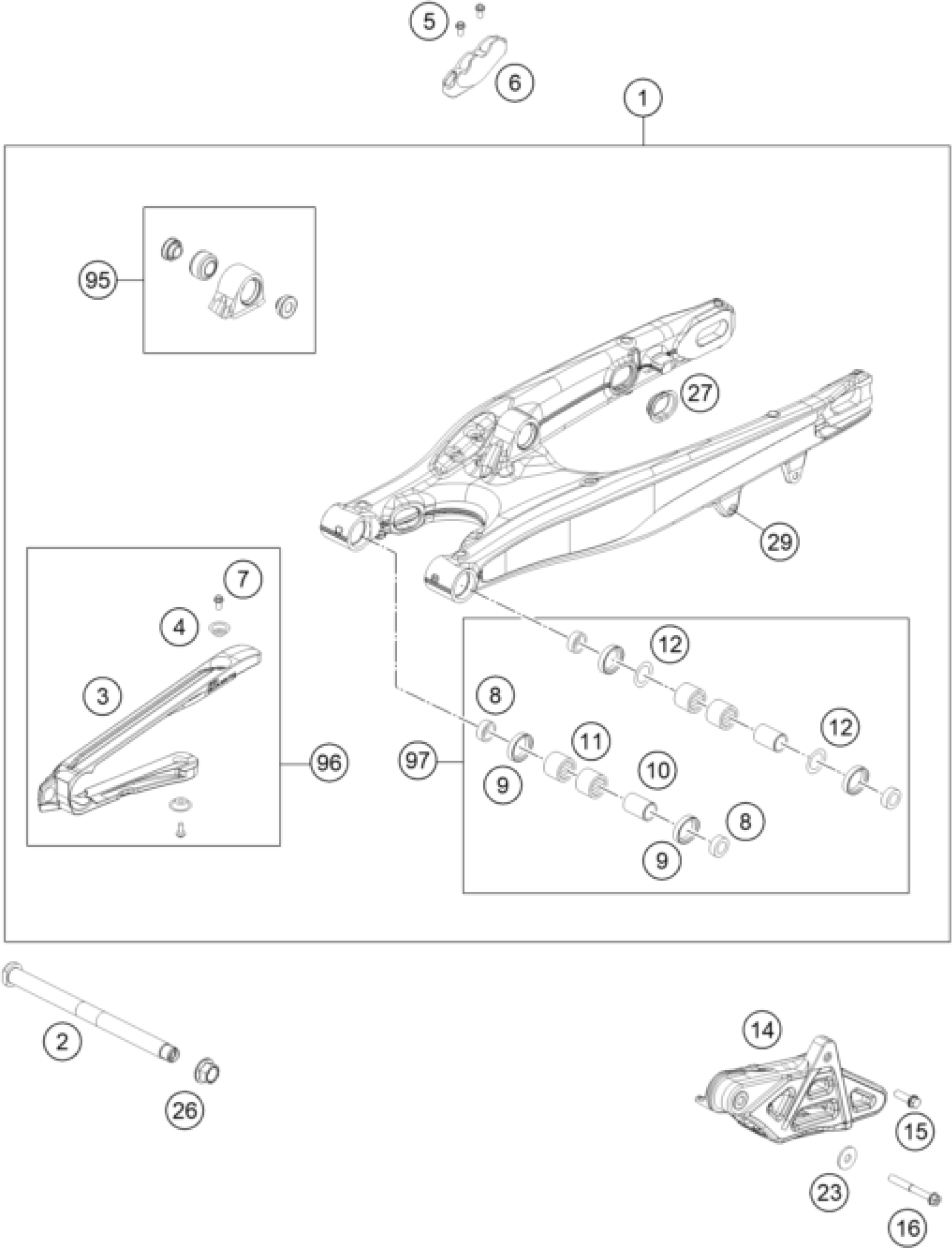

KTM 300 XC-W SIX DAYS 2017 SWING ARM Diagram

SWING ARM CPL. PDS 2017

79604030044

$872.35

SWING ARM M16X1,5 2016

79004037000

$78.91

CHAIN SLID.GUARD PDS

51504066000

$22.71

chain slider bushing

77304066050

$1.49

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

BRAKE HOSE GUIDE LOWER 07

77313047000

$5.23

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

Support f. shaft seal ring 16

77704034000

$13.46

radial shaft seal 25x32x7

0760253270

$6.63

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

Needle bushing HK2212V 22/28/1

0618222812

$9.81

STOP DISK 22,2X31,7X1

54603036000

$3.08

CHAIN GUIDE EXC ORANGE

7810407010004

$64.59

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

HH collar screw M6x50 TX30

0025060506

$3.08

Washer DIN9021-A 6.4

0021060003

$2.05

Nut with flange M16X1,5 WS=19

54804038000

$2.05

Locking cap swingarm

77204041000

$4.11

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

PIVOT BEARING+BUSH. PDS '17

79604090044

$67.50

CHAIN SLIDING GUARD KIT 11-15

51504066044

$28.14

SWINGARM REPAIR KIT SX-F/XC-F

78904230010

Unavailable
