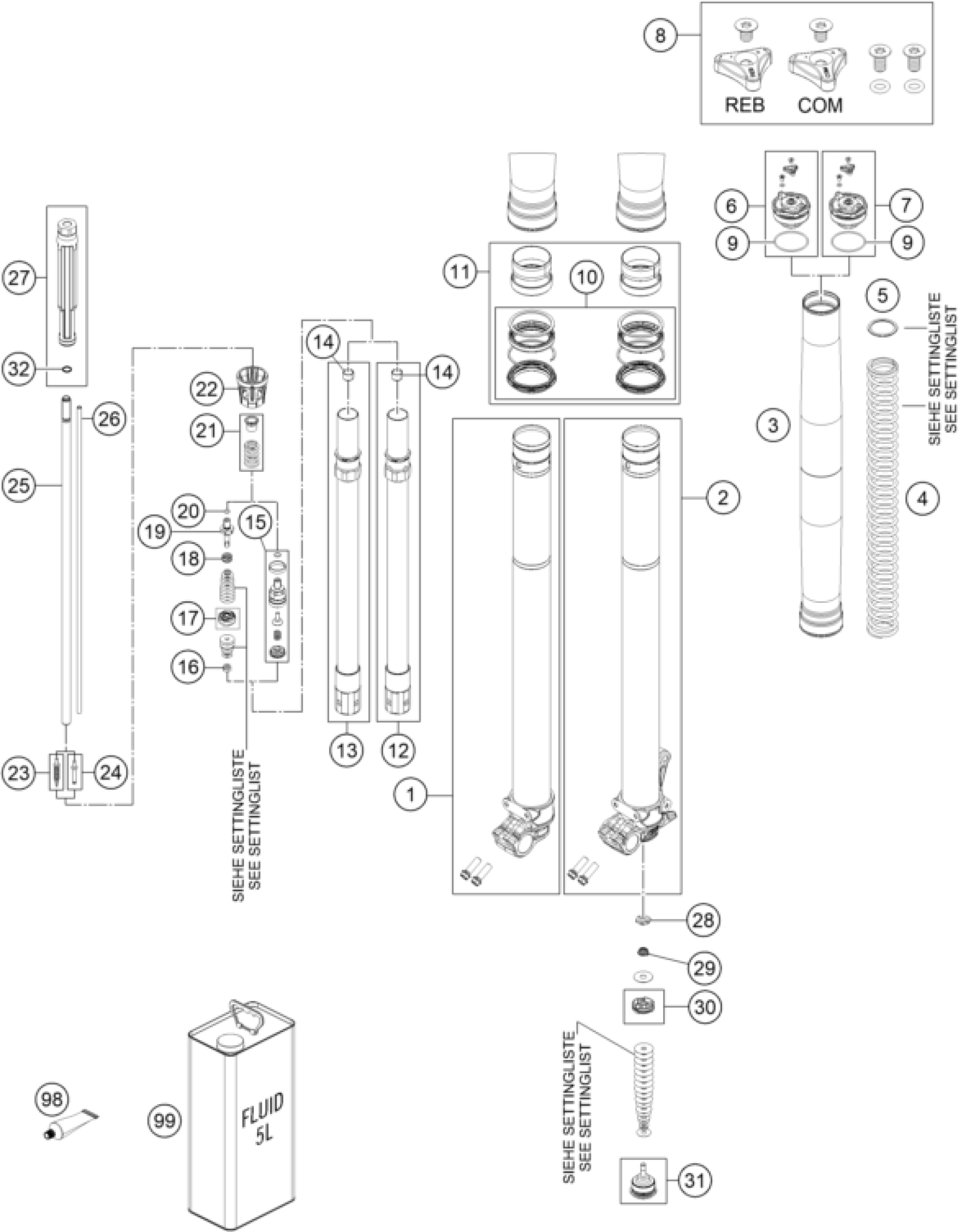

KTM 300 XC-W SIX DAYS 2017 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

AXLE CLAMP OC R/S CPL. & TUBE

48601633S1

$448.60

2

AXLE CLAMP OC L/S CPL. & TUBE

48601632S1

$521.72

3

Fork outer tube 49,13x577 dt54

48600736

$462.35

4

SPRING 3,8N/MM SET D=4,9MM

91410099S

Unavailable

4

SPRING 4,0N/MM SET D=4,9MM

91410100S

Unavailable

4

SPRING 4,2N/MM SET D=4,9MM

91410101S

Unavailable

4

SPRING 4,4N/MM SET D=4,9MM

91410102S

Unavailable

4

FORK SPRING L= 470 4,6 N/MM SE

91410103S

Unavailable

4

SPRING 4,8N/MM SET D=4,9MM

91410104S

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable

6

Screw cap M51x1,5 PA rebound c

48601680S

$210.09

7

Screw cap M51x1,5 PA compressi

48601681S

$160.43

8

SCREW CAP SMALL PART KIT

R14033

$6.82

9

O-ring 46x2 NBR70 siliconized

48600048

$3.08

10

Repair kit fork 48mm

R14046

$66.75

11

Fork repair kit 48mm offroad

R14063

$160.00

12

PIPE&THREADED SLEEVE WITH HOLE

48600763S1

$165.67

13

PIPE & THREADED SLEEVE

48600763S2

$157.54

14

Guide bushing 12x14x10

48600430

$6.44

15

Assembly compression tap cpl.

48601554S1

Unavailable

16

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

17

PISTON REBOUND + PISTON RING

48600575S

$29.35

18

Spring (11,4) 0,4-8 valve

48600382

$2.05

19

Tap 6x46 rebound

48600576

$9.72

20

O-ring 6x1,2 NBR70

48600299

$1.49

21

Spring (13,9) 37-32 rebound cp

48600578S

$4.11

22

Spring retainer 27,08x43x45

48601298

$5.88

23

Needle 4,5x43,6 cpl.

48600277S

$8.97

24

Needle 4,5x38,2 cpl.

48601558S

$11.59

25

Piston rod 12x554

48600568

$99.20

26

Adjustment tube 6x521,7

48601786

$30.19

27

Stop 12,4x31,9x200,3 cpl.

48601556S

$12.71

28

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

29

Spring (8,5) l6,5 valve

48600202

$2.05

30

Piston 6x27,8x9 compression cp

48600047S

$15.04

31

Screw cap M29,3x1 OC split cpl

48601553S

$25.70

32

O-ring 11x2,5 NBR70 PTFE yello

04500003

$1.49

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

5

Washer 35x43x2,5 plastic

48600456

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable
