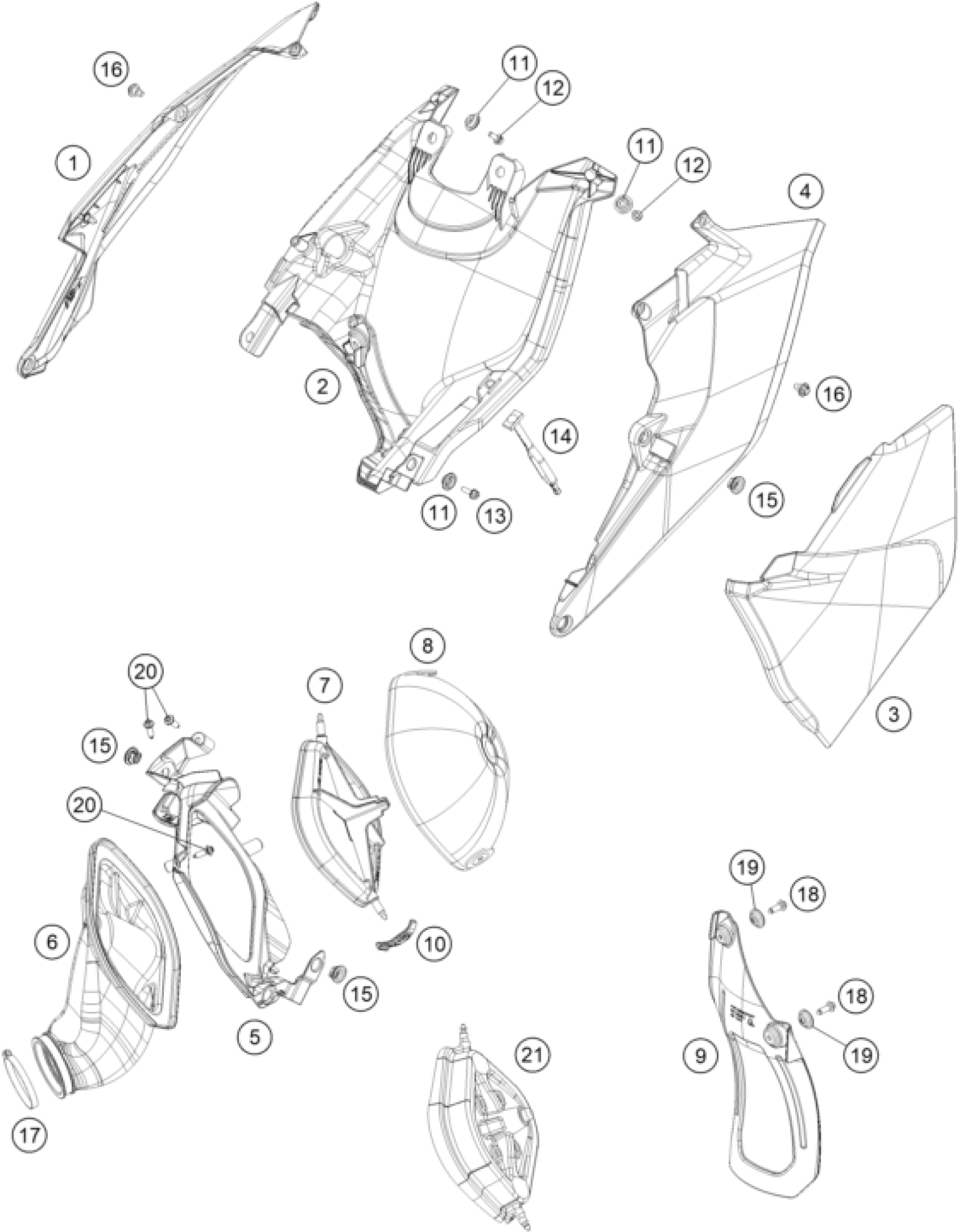

KTM 300 XC-W SIX DAYS 2017 AIR FILTER Diagram

#

Description
Price

1

AIR BOX COVER OR. RIGHT 17

7900600400028D

$44.12

2

AIR BOX BOTTOM PART BLACK

7900600100033

$27.19

3

AIR BOX COVER OR. LEFT 17

7900600300028D

$44.12

4

FILTERBOX SIDE

7900600700028

$15.97

5

AIRBOX FRONT PART

7900600101033

$15.97

6

AIRBOX RUBBER

50406126000

$71.33

7

AIR FILTER SUPPORT

50406016000

$18.60

8

AIR FILTER

79006015000

$32.12

9

SPLASH GUARD

79006010000

$15.79

10

FILTER MOUNTING BRACKET

79006017000

$2.05

11

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

12

HH collar screw M6x12 TX30

0025060126

$3.08

13

SPECIAL SCREW M6X15X3

83008000015

$3.08

14

RUBBER L=145MM

50303018000

$6.44

15

quick release rubber grommet

47106003160

$4.11

16

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

17

HOSE CLAMP 50-70MM

51006027000

$6.07

18

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

19

chain slider bushing

77304066050

$1.49

20

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

21

THROTTLE CAP

50406012040

$30.85
