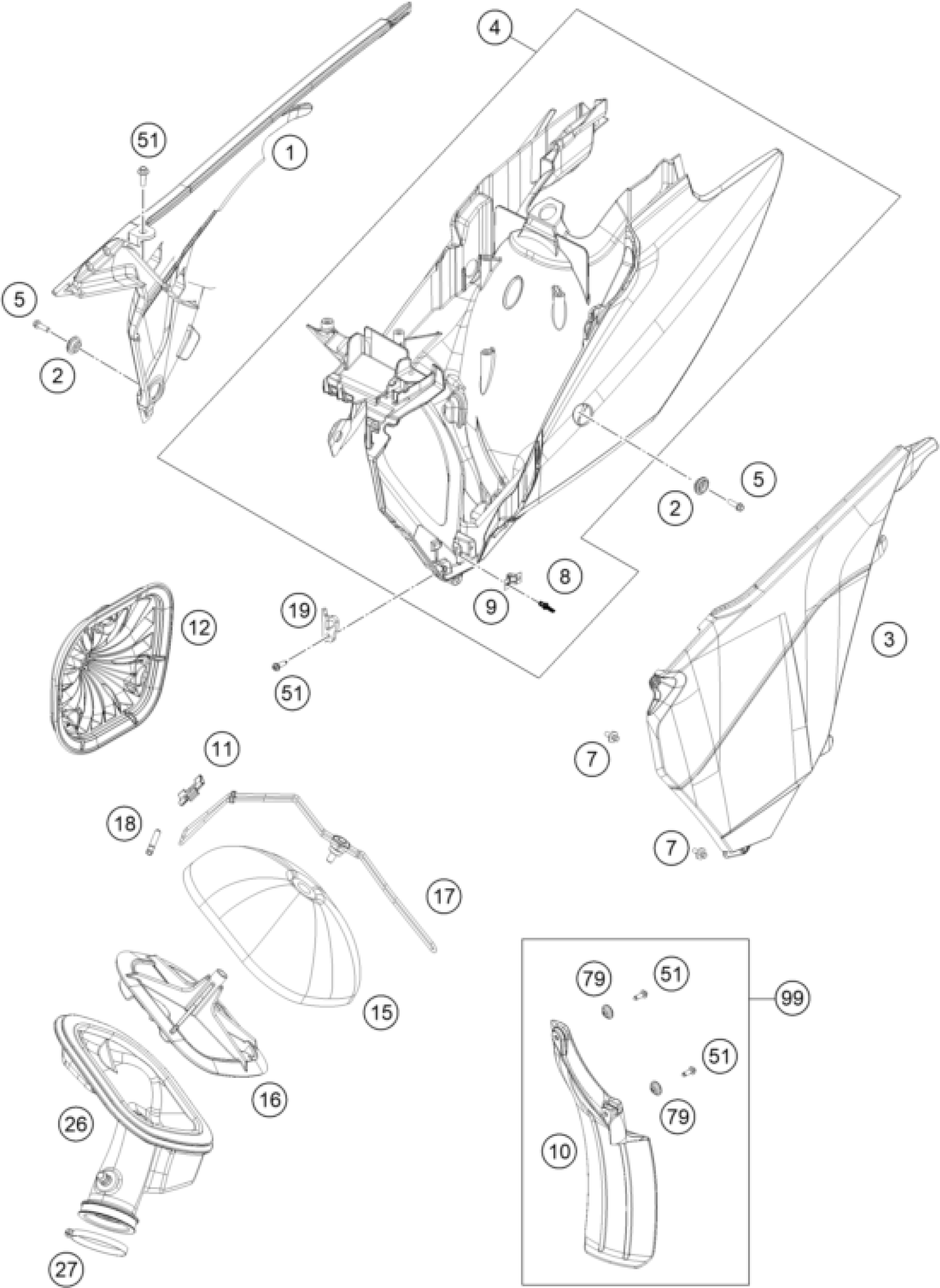

KTM 300 XC-W SIX DAYS 2014 AIR FILTER Diagram

#

Description
Price

2

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

1

AIRFIL.BOX COVER R/S SD 14

7770600410028A

$23.46

3

AIRFIL.BOX COVER L/S SD 14

7770600300028A

$22.43

4

FILTER BOX CPL. WHITE 13

7770600104428

$41.22

5

HH collar screw M6x20 TX30

0025060206

$3.08

7

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

8

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

$2.05

9

QUICK RELEASE-SPRING HANGER

54806008050

$2.05

10

FENDER FOR FILTER BOX

77306010000

$20.84

11

AIR BOX CLIP

77706017052

$8.59

12

THROTTLE VALVE CAP

78106012000

$24.58

15

AIR FILTER

77206015000

$32.12

16

FILTER CARRIER

54806516000

$9.15

17

FILTER SUPPORT CPL. 11

77206017000

$19.53

18

FILTER SUPPORT BUSH 07

77306018000

$3.08

19

FASTEN. DEVICE FILTER S. SX 11

77206019000

$8.41

26

CABURETOR CONNECTING

54806526000

$51.70

27

HOSE CLAMP 50-70MM

51006027000

$6.07

51

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

79

chain slider bushing

77304066050

$1.49

99

SPLASH PROTECTOR KIT SX/EXC

77306010010

Unavailable
