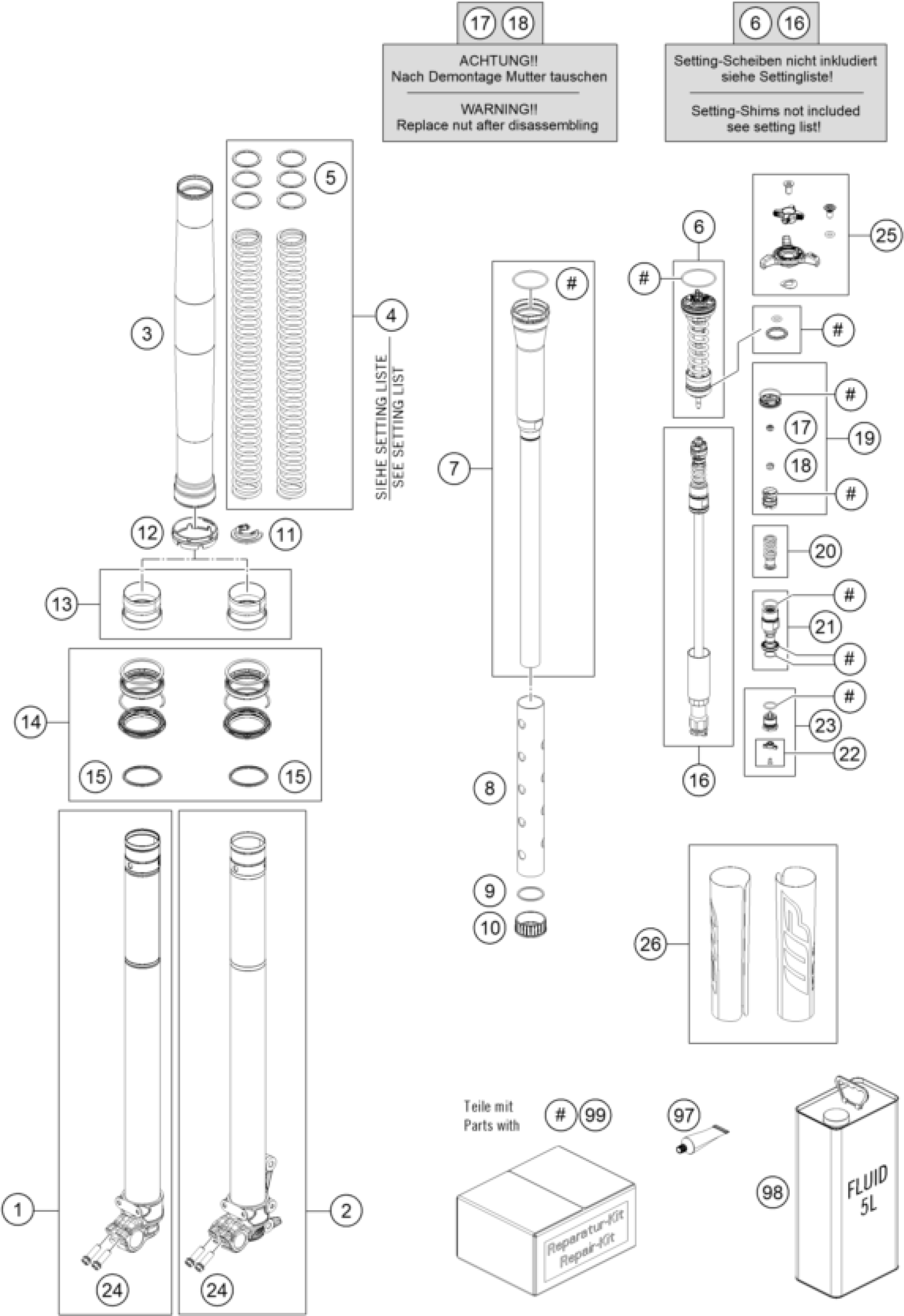

KTM 300 XC-W HARDENDURO 2025 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp ri. with inner tube

48602046S2

$357.72

2

Axle clamp le. with inner tube

48602045S2

$378.76

3

fork outer tube 49.13x577 dt54

48602096

$257.40

4

main spring (43.8) 3.6-470 for

S809900029S0000

Unavailable

4

main spring (43.8) 3.8-470 for

S809900030S0000

Unavailable

4

main spring (43.8) 4.0-470 for

S809900031S0000

Unavailable

4

main spring (43.8) 4.2-470 for

S809900032S0000

Unavailable

4

main spring (43.8) 4.4-470 for

S809900033S0000

Unavailable

4

main spring (43.8) 4.6-470 for

S809900034S0000

Unavailable

4

main spring (43.8) 4.8-470 for

S809900035S0000

Unavailable

4

main spring (43.8) 5.0-470 for

S809900036S0000

Unavailable

4

main spring (43.8) 5.2-470 for

S809900037S0000

Unavailable

5

Washer 35x43x2,5 plastic

48600456

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable

6

Basevalve mit Preloadadjuster

S043400003S0000

$231.40

7

Pressure tank M38x0.5 cmpl.

S418900003S0100

$196.72

8

Tube 35x38x277

S53360000000000

$52.26

9

Washer 33,5x38x1,5

48600752

$8.49

10

Spring seat 33.5x44.5x18.5

S82890000200000

$8.41

11

Spring seat D44 clip

S82890000100000

$5.60

12

Fork protection ring 59,8mm

S639200001000FA

$2.05

13

Guide bushing set fork 48mm

R14047T

$25.70

14

"Seal kit 48mm SKF black"

RP10012T

$66.75

15

Stroke indicator 48mm red

48602007

$4.11

16

Piston rod 12.0x397.5 cmpl.

S501200022S0000

$256.93

17

Nut M6 h5,4 SW10

48602128

$1.49

18

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

19

Repair kit piston CC spring fo

RP10054T

Unavailable

20

Spring (13,9) 37-32 rebound cp

48600578S

$4.11

21

Screw cap M24.5x1 cmpl.

S408800002S0000

$25.80

22

Repair kit adjuster rebound re

RP10033T

Unavailable

23

adjuster housing M20x1 cpl.

48602052S

$31.78

24

HH collar screw M8x25

0025080256

$2.05

25

Adjuster kit screw cap compres

RP10065T

Unavailable

26

Sticker set, XACT CC 238x182.5

52000318SET

$31.50

97

Fuchs grease IPR (250g)

T14034

$34.59

98

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

99

Seal kit CC spring fork

RP10055T

Unavailable
