Description

Price

1

HANDLEBAR D=28MM

7900200100030

$151.84

2

Handlebar pad cmpl.

A46002002044C1B

$42.53

4

Lock-on grip set

A46002921500BJ

$31.44

5

Start/stop button

A46011074000

$95.55

6

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

7

Housing throttle twist grip cp

A46002010025

$24.58

8

Combination switch

A44039074000

$118.14

9

WIRING HOLDER 16MM

57013072100

$1.49

10

Throttle cable complete 2 stro

A44002291000

$109.48

11

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

12

MASTER CYLINDER CPL.

54802030144

$240.57

13

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

14

REP. KIT PISTON 06

54802032000

$49.92

15

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

16

VALVE

54802051000

$19.16

17

BOLT KPL.

54802052000

$29.35

18

PROTECTION CAP 06

54802037000

$20.94

19

Lever screw cmpl. 06

54802038100

$39.82

20

Push rod cmpl.

54802046000

$23.46

21

CLAMP CPL. 06

54802005100

$25.80

22

Handguard assembly kit

79602084044

$33.99

23

Handguard

7960218204430

$26.34

24

Wrap-around handguard

79602979044

$36.54

25

CLUTCH PIPE

79232063000

$112.38

26

Brake fluid DOT5.1 0,25L

00062030000

$12.52

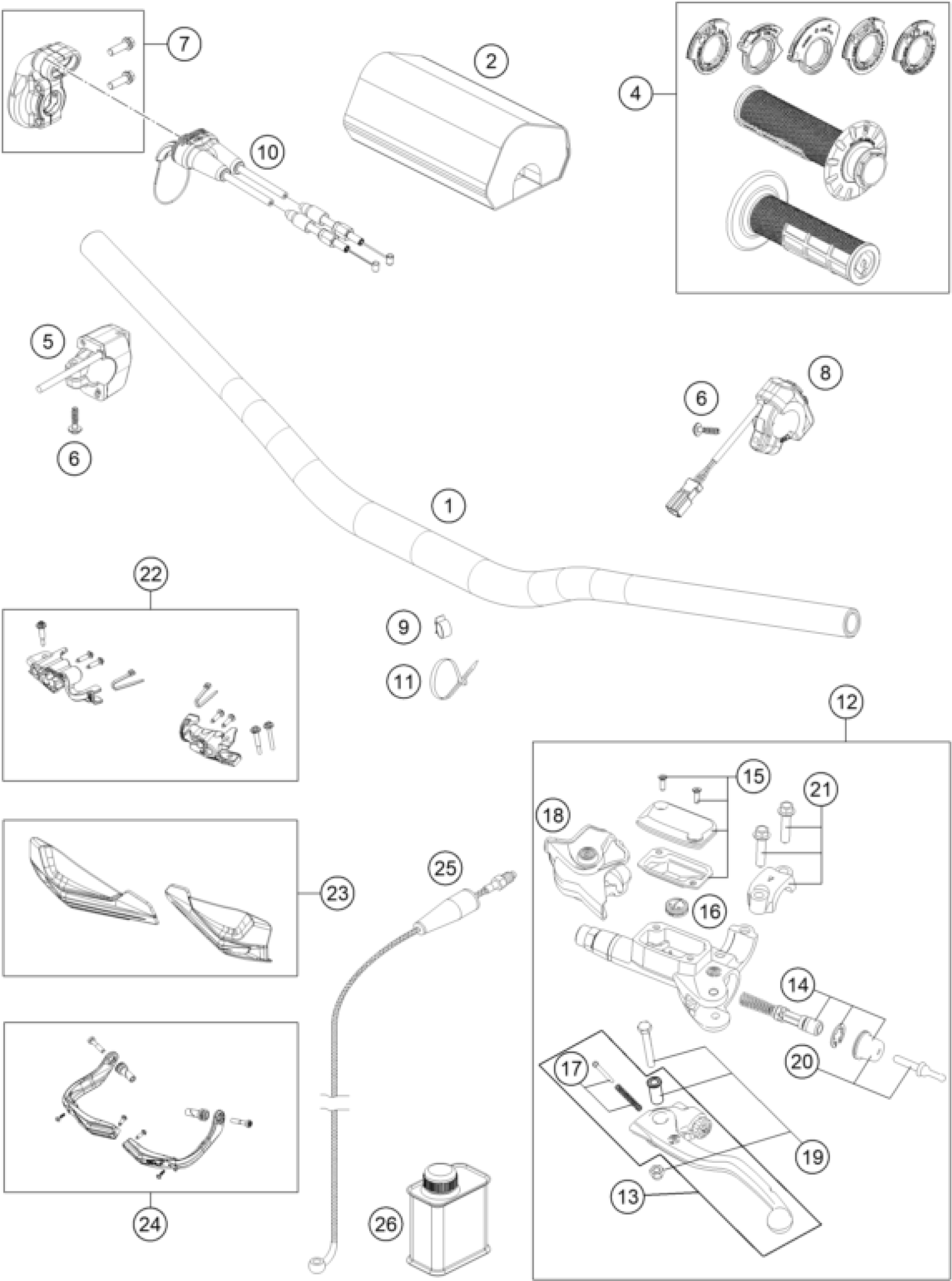

KTM 300 XC-W HARDENDURO 2024 HANDLEBAR, CONTROLS Diagram
