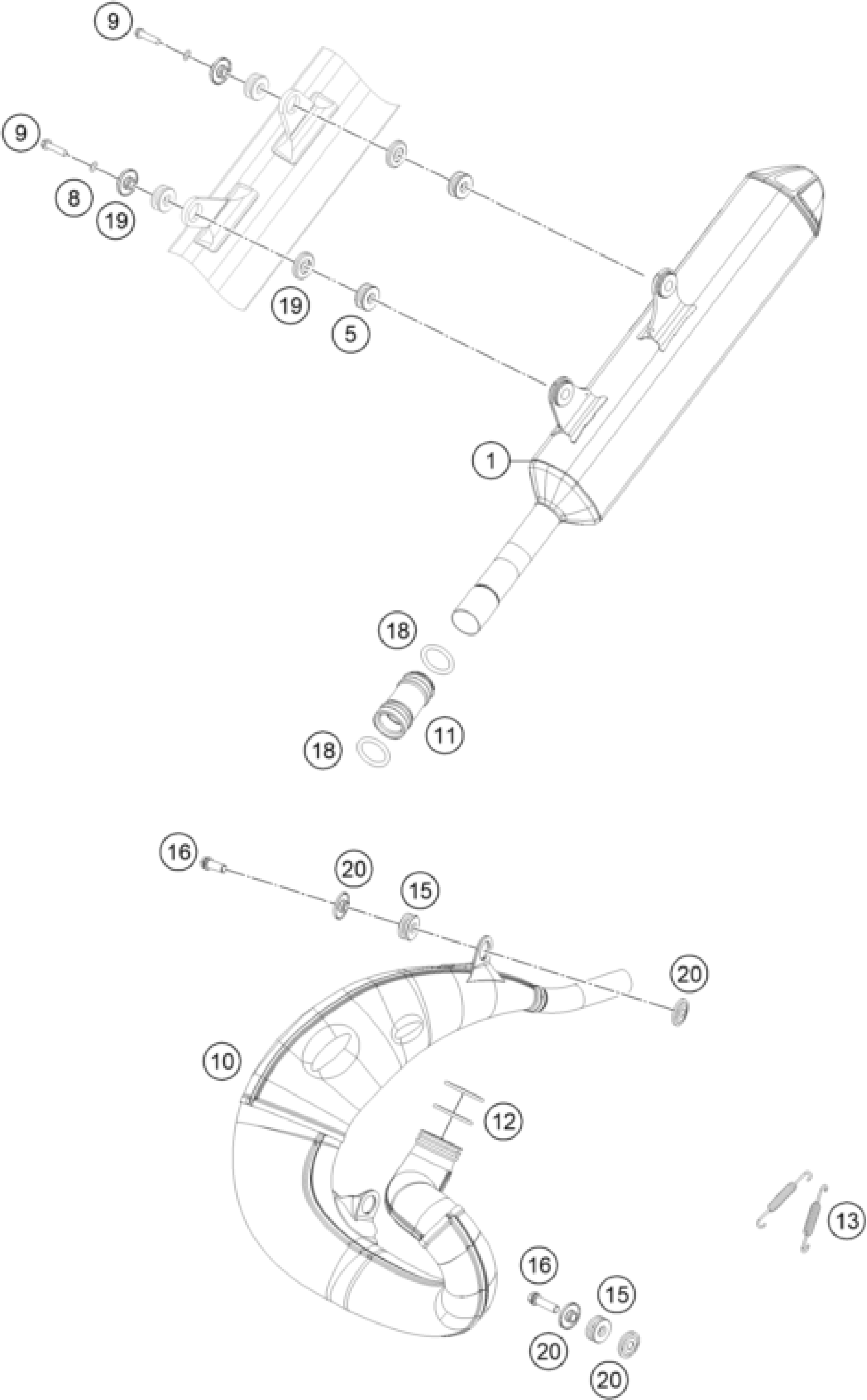

KTM 300 XC-W FACTORY EDITION 2025 EXHAUST SYSTEM Diagram

#

Description

Price

1

FMF Titanium Powercore 2.1 sil

A45005979003

Unavailable

5

DAMP. COMPON. BLACK

77205068000

$6.54

8

Pair of washers M6 NORDLOCK

50233041000

$4.11

9

HH collar screw M6x30 TX30

0025060306

$3.08

10

manifold

A44005007000

$562.02

11

exhaust rubber

50405057000

$9.62

12

O-RING 44,00X3,00 VITON

0770440030

$4.11

13

Tension spring L=62mm

A46005016000

$4.57

15

Damper gray

79105068000

$8.03

16

HH collar screw M8x30

0025080306

$3.08

18

Hose spring

50405058000

$4.11

19

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

20

BUSHING 8.5x12x28x8.3

77805069000

$5.98
