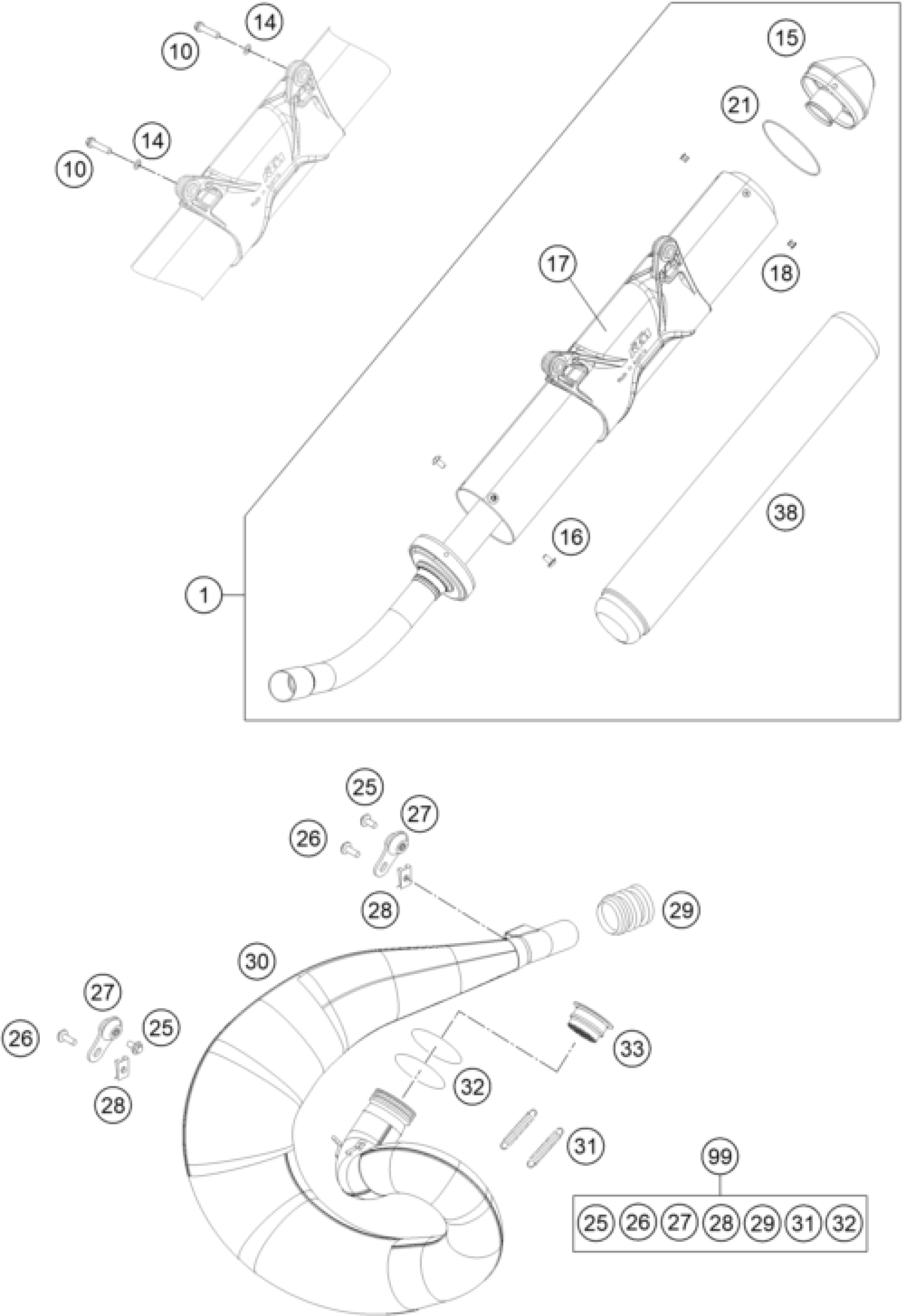

KTM 300 XC-W 2014 EXHAUST SYSTEM Diagram

HH collar screw M6x30 TX30

0025060306

$3.08

spring washer DIN 137 B - 6

0137060003

$2.05

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

MAIN SILENCER 250-300 EXC

54805083200

$404.10

ENDCAP CPL.

54805083260

$84.24

SCREW TORX M5X10 05

58605083010

$2.05

SILENCER HOUS. CPL. W. HANGING

54805183085

$105.55

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

HH collar screw M6x15 TX30

0024060156

$3.08

Silent block for exhaust pipe

50305012000

$19.91

clip nut M6

54603048100

$4.11

SILICON SLEEVE D=29/31MM

50205057000

$32.90

EXHAUST MANIFOLD

54805107000

$536.96

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

O-RING 44,00X3,00 VITON

0770440030

$4.11

EXHAUST THROTTLE D=39.5

54805009280

$70.02

ROCKWOOL 315G

54805078315

$59.46

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable
