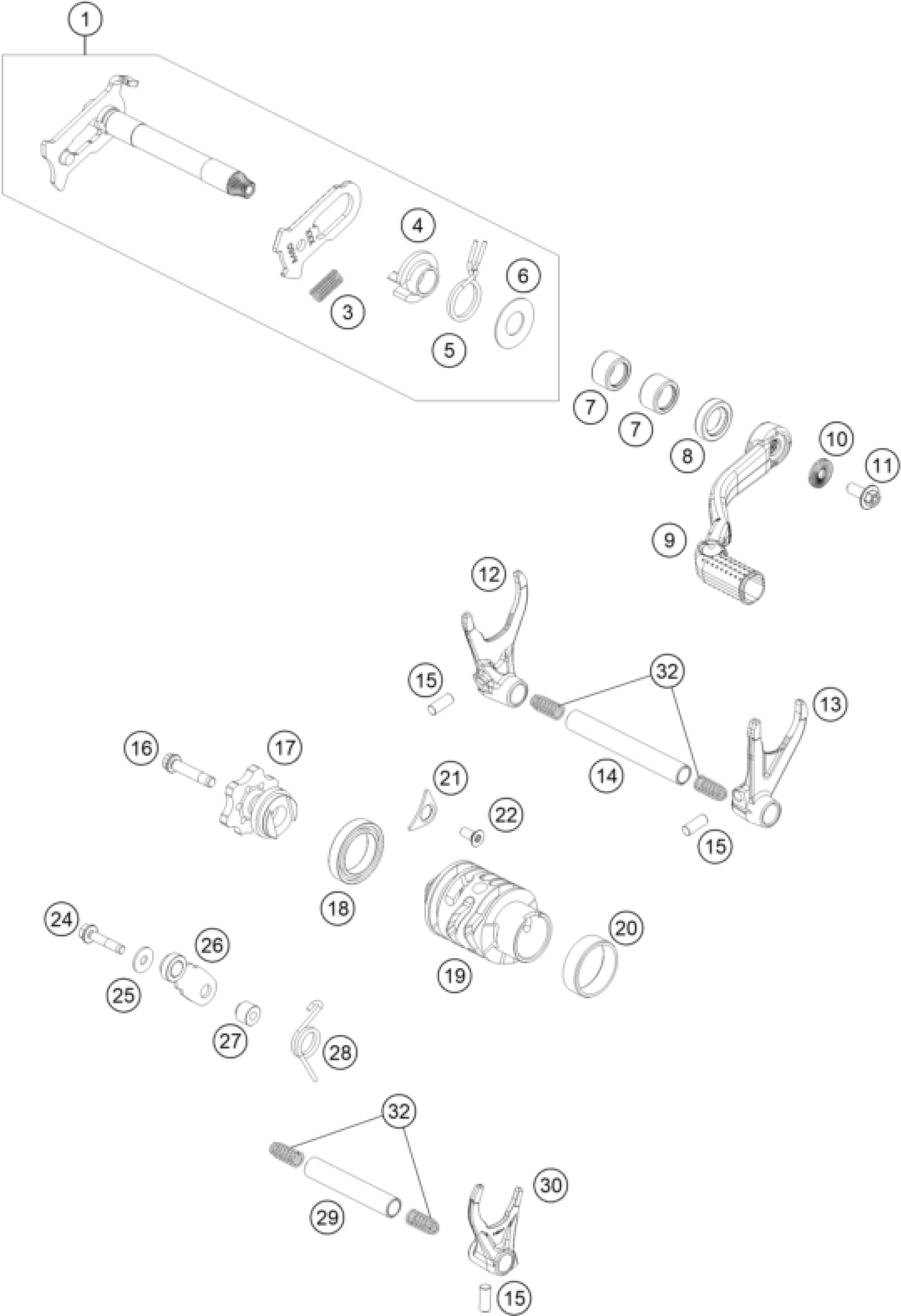

KTM 300 XC 2026 SHIFTING MECHANISM Diagram

#

Description
Price

1

Shift shaft cpl.

A46034005033

$38.05

3

TENSIONING SPRING 0,8MM

56534013100

$1.49

4

SPRING GUIDE

54634020000

$6.44

5

RETURN SPRING 03

54834014000

$4.11

6

STOP DISK 14X30X1

54634050000

$2.05

7

needle sleeve HK 1412 14x20x12

54632095000

$7.00

8

radial shaft seal 14x24x6 B

0760142460

$9.25

9

Gear shift lever cmpl.

A42034031000

$77.04

10

PAIR NORDLOCK WASHER M6

50233041500

$4.11

11

HH collar screw M6x15 TX30

0024060156S

$2.05

12

shift fork 1.-3. gear

A46034503000

$40.85

13

shift fork 2.-4. gear

A46034502000

$40.85

14

Shift fork shaft (L=93 mm)

A46034019000

$8.31

15

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

16

HH collar screw M6x30 TX30

0025060306S

$3.08

17

Shift star

A46034115000

Unavailable

18

Grooved ball bearing 6805 JR C

0410002500700

$43.94

19

Shift drum 6 gear

A46034512000

$78.06

20

FRICTION BEARING CONTROLLER

79234012010

$22.99

21

RETAINING PLATE F. CS BEARING

75030085000

$1.49

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

24

HH collar screw M5x25 TX30

0025050256S

$1.49

25

WASHER DIN7349-5X15X2

0349000050

$1.49

26

Detent arm cmpl.

A46034024044

$11.59

27

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

28

LOCKING LEVER SPRING 03

54834023000

$3.08

29

Shift fork shaft (L=66 mm)

A46034020000

$7.85

30

shift fork 5.-6. gear

A46034501000

$40.85

32

Compression spring L=25mm D=0.

58038023400

$1.49
