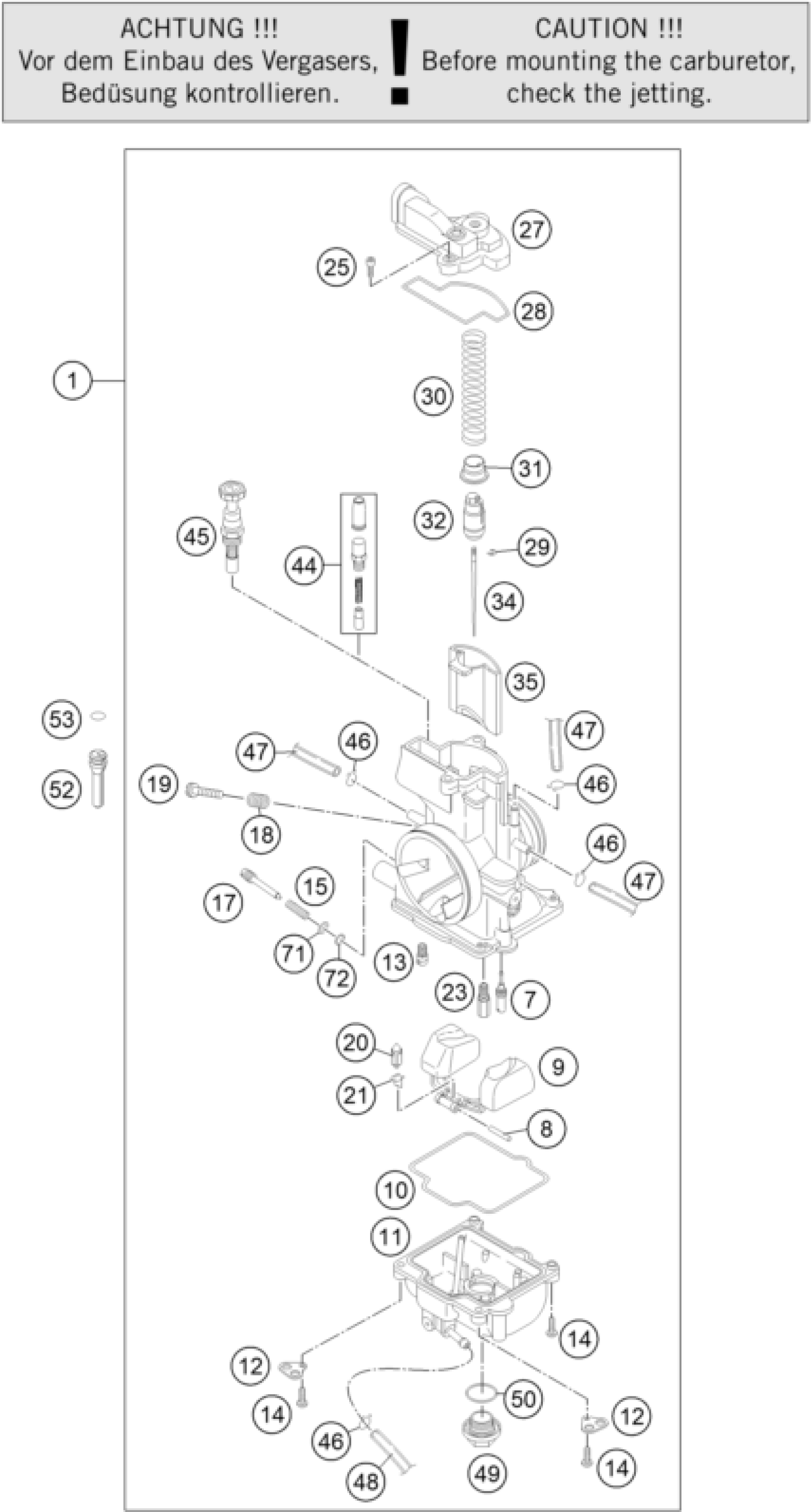

KTM 300 XC 2015 CARBURETOR Diagram

#

Description
Price

34

JET NEEDLE KEIHIN N2ZW 08

54731134100

Unavailable

18

SPRING

54631118000

$9.81

19

ADJUSTMENT SCREW M 5

54631219100

$17.01

20

FLOAT NEEDLE

54631220000

$31.41

1

CARBUR. KEIHIN PWK 36S AG 12

54831201844

Unavailable

7

IDLE JET SIZE 38X38 KEIHIN

54831007138

Unavailable

7

IDLE JET 35 KEIHIN

54531607035

Unavailable

7

IDLE JET 38 KEIHIN

54531607038

Unavailable

7

IDLE JET 40 KEIHIN

54531607040

Unavailable

7

IDLE JET 42 KEIHIN

54531607042

Unavailable

7

IDLE JET 45 KEIHIN

54531607045

Unavailable

7

IDLE JET 48 KEIHIN

54531607048

Unavailable

7

IDLE JET 50 KEIHIN

54531607050

Unavailable

8

ARM PIN FLOAT

57331008000

$2.05

9

FLOAT CPL.

57331009000

$59.64

10

GASKET FLOAT CHAMBER

54831010000

$10.65

11

FLOAT CHAMBER PWK38-S AG

54831011000

$137.62

12

RETAINING PLATE FOR BLEEDER

54531612100

$3.08

13

STARTER JET 50 KEIHIN

54831051050

Unavailable

13

STARTER JET 85 KEIHIN

54831051085

Unavailable

14

HH COLLAR SCREW M 4X16 WS=6

0016040163

$2.05

15

SPRING FOR ADJUSTMENT SCREW

54531615000

$3.08

21

CLAMP

54531621000

$4.11

23

MAIN JET 115 KEIHIN

54531623115

Unavailable

23

MAIN JET 150 KEIHIN

54531623150

Unavailable

23

MAIN JET 152 KEIHIN

54531623152

Unavailable

23

MAIN JET 155 KEIHIN

54531623155

Unavailable

23

MAIN JET 158 KEIHIN

54531623158

Unavailable

23

MAIN JET 160 KEIHIN

54531623160

Unavailable

23

MAIN JET 162 KEIHIN

54531623162

Unavailable

23

MAIN JET 165 KEIHIN

54531623165

Unavailable

23

MAIN JET 168 KEIHIN

54531623168

Unavailable

23

MAIN JET 170 KEIHIN

54531623170

Unavailable

23

MAIN JET 172 KEIHIN

54531623172

Unavailable

23

MAIN JET 175 KEIHIN

54531623175

Unavailable

25

SPECIAL-AH-SCREW M 4X12

54831025000

$4.11

27

CARBURETOR COVER PWK36-S AG

54831127000

$53.94

28

GASKET FOR CARBURETOR COVER

54831028000

$8.41

29

CLIP FOR JET NEEDLE

54531629000

$3.08

30

SLIDING SPRING

54831030000

$11.49

31

SPRING CAP

54631231000

$10.65

32

NIPPLE

54631232000

$38.79

34

JET NEEDLE KEIHIN N84K

54831034100

Unavailable

34

JET NEEDLE KEIHIN N8RE 06

54831035300

Unavailable

34

JET NEEDLE KEIHIN N8RF 06

54831035000

Unavailable

34

JET NEEDLE KEIHIN N8RG 06

54831035100

Unavailable

34

JET NEEDLE KEIHIN N8RH 06

54831035400

Unavailable

34

JET NEEDLE KEIHIN N8RW 07

54831035500

Unavailable

35

THROTTLE VALVE 7 FOR 38 PJ '00

54631035000

$230.84

44

CONNECT. COLD START CABLE CPL.

58502096044

$29.91

45

STARTER PISTON CPL.

54631245000

$89.94

46

Clamp 6mm

54531696000

$3.08

47

PVC-HOSE 4X6MM

31007007101

$4.11

48

PVC-HOSE 3X5MM

52031137001

Unavailable

49

PLUG M 18X1

54531699000

$20.09

50

O-RING 18,00X2,30 NBR 70

0770180230

$3.08

52

SLIDE STOP L=36 08

52331029000

Unavailable

52

SLIDE STOP L=38MM

50331029038

Unavailable

53

O-RING 6,07X1,78 FPM75

0770060018

Unavailable

71

WASHER ADJUSTING SCREW

54831071000

$2.05

72

O-RING ADJUSTING SCREW

54831072000

$2.05

34

JET NEEDLE KEIHIN N8RJ 07

54831035600

Unavailable

34

JET NEEDLE KEIHIN N8RK 08

54831035700

Unavailable

34

JET NEEDLE KEIHIN N8RL

54831035800

Unavailable

34

JET NEEDLE KEIHIN N2ZJ 08

54731134200

Unavailable

34

JET NEEDLE KEIHIN N2ZH 08

54731134700

Unavailable

1

CARBURETOR PWK36S AG BZ7 15

54831301244

Unavailable

17

STOP SCREW CPL.

54831017000

$8.41

1

CARBURETOR KEIHIN PWK36S AG 08

54831101944

Unavailable
