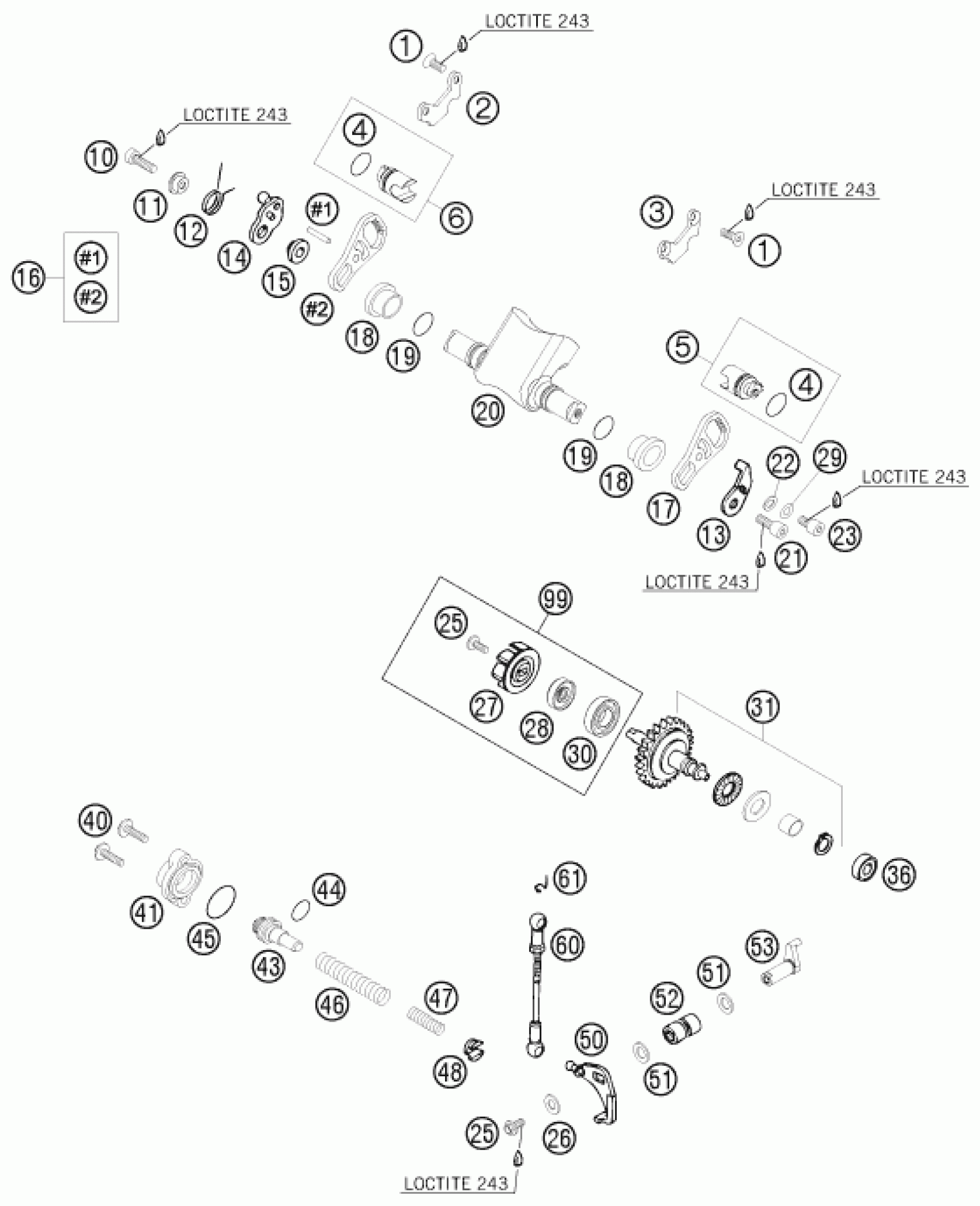

KTM 300 XC 2008 EXHAUST CONTROL Diagram

#

Description
Price

12

OVERLOAD SPRING

54637066000

$4.11

13

RETAIN.PLATE CONTROL FLAP '92

54637085300

$5.23

14

CONTROL LEVER WITH BALL TYPE

54637065000

$21.03

15

BUSHING SLEEVE

54637068100

$7.85

16

GEAR SEGMENT RIGHT CPL. 08

54837364044

$40.29

17

GEAR SEGMENT 300 L/S 08

54837364050

$32.06

18

BEAR. SLEEVE F.CONTROL FLAP'97

54737019000

$8.41

19

O-RING 15,00X1,50 VITON

0770150151

$3.08

20

CONTROL FLAP 300 08

54837320100

$102.94

21

AH SCREW DIN0912-M 6X16

0912060163

$1.49

22

WASHER 6,5X11X2

54637056100

$1.49

23

AH collar screw DIN 912 M6x8

0912060083

$2.05

25

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

26

WASHER DIN7349-5X15X2

0349000050

$1.49

27

WATER PUMP WHEEL 07

54835005000

$4.11

28

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

29

spring washer DIN 137 B - 6

0137060003

Unavailable

30

BALL BEARING 16002 C3

0625160020

$19.07

31

CENTRIFUGAL TIMER CPL. 250/300

54837050044

$211.68

36

Grooved ball bearing 626LLBC3/

54637098100

$12.61

40

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

41

COVER LID 250-380'98

54637070100

$18.69

43

SPRING GUIDE 250/300

54837075000

$14.95

44

O-RING 12,37X2,62 NBR70

0770021120

$3.08

45

O-RING 24,00X2,00 NBR70

0770240020

$2.05

46

ADJ.SPRING L=65MM D=2MM '96

54637072100

$3.08

47

AUXILIARY SPRING SOFT, RED

54837072000

Unavailable

47

AUXILIARY SPRING MID. YELLOW

54637072300

$3.08

47

AUXILIARY SPRING HARD GREEN

54837072100

Unavailable

48

SPRING INSERT

54637071200

$9.06

50

ANGLE LEVER CPL. '91

54637055244

$31.69

51

SHIM WASHER DIN988 10X16X1

0988101610

$2.05

52

NEEDLE SLEEVE HK 1010

54637096000

$5.98

53

CONTROL LEVER 03

54837057000

$38.42

60

CONNECT.ROD CPL. L=109,5MM '91

54637095344

$31.45

61

SECURING DIN-71805-S-8

50237195055

$2.05

1

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

2

RETAINING PLATE 300 R/S 08

54837362000

$12.61

3

RETAINING PLATE 300 L/S 08

54837363000

$12.61

4

O-ring 16x2 Viton 75

0770160021

$3.08

5

CONTROL VALVE 300 L/S CPL. 08

54837361044

$40.85

6

CONTROL VALVE 300 R/S CPL. 08

54837361144

$40.85

10

AH SCREW DIN0912-M 6X20

0912060203

$2.05

11

SPRING SLEEVE

54637067000

$4.11

99

WATER PUMP REP. KIT SX 07-14

54835055110

Unavailable
