CYLINDER, CYLINDER HEAD

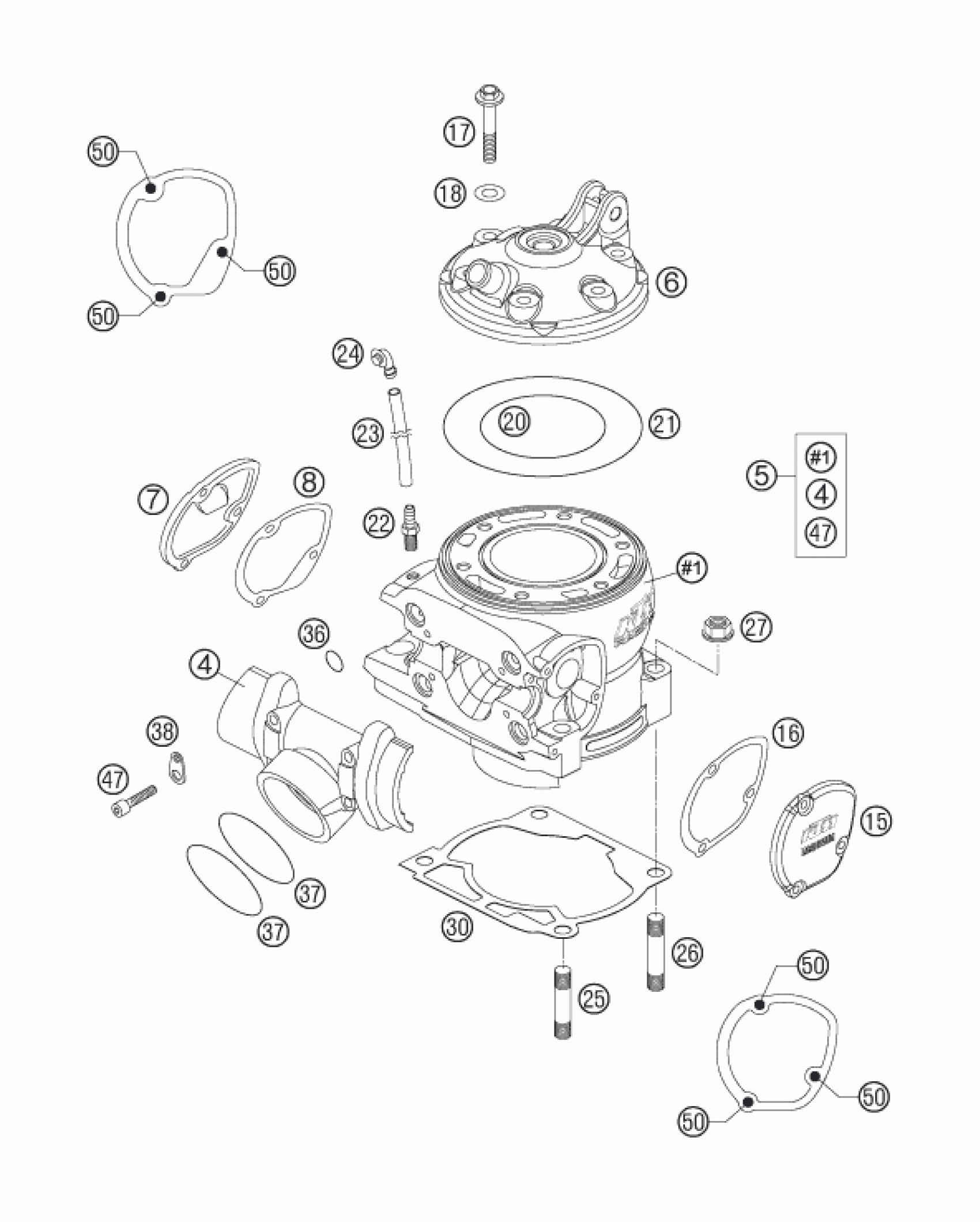

KTM 300 XC 2007 CYLINDER, CYLINDER HEAD Diagram
#
Description
Price
4
INTERMEDIATE FLANGE 250/300
54837001100
$248.11
5
CYLINDER CPL. W. FLANGE 300 04
54830305044
$953.50
6
CYLINDER HEAD 300 ''3003''
54830306000
$128.89
7
CONTROL COVER R/S 2001
5473700700098
$28.05
8
GASKET FOR CONTROL COVER R/S
54737008000
$5.23
15
CONTROL COVER L/S 2001
5473700500098
$23.57
16
GASKET FOR CONTROL COVER L/S
54737006000
$5.23
17
COLLAR SCREW M 8X35 WS=13
54830079000
$4.11
18
CU-SEAL RING 8 X 16 X 1
56530080000
$2.05
20
O-RING 80,00X2,00 VITON
0770800021
$6.91
21
O-RING 114,00X2,00 SILICONE
0770114020
$7.56
22
VACUUM CONNECTION M 6X1
58336020090
$6.63
23
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
24
ANGLE PIECE '97
50303089000
$5.23
25
STUD DIN0835-M10X35
0835100351
$5.23
26
STUD DIN0835-M10X40
0835100403
$3.14
27
COLLAR NUT M10 WS=13
54630044000
$1.49
30
GASKET CYLINDER BASE 0,2MM 03
54830030002
Unavailable
30
GASKET CYLINDER BASE 0,4MM 03
54830030004
Unavailable
30
GASKET CYLINDER BASE 0,5MM 03
54830030005
Unavailable
30
GASKET CYLINDER BASE 0,75MM 03
54830030075
Unavailable
36
O-RING 11,3 X2,4 SILICON
0770116241
$3.08
37
O-RING 44,00X3,00 VITON
0770440030
$4.11
38
RETAINING PLATE
51005074000
$3.08
47
AH SCREW DIN0912-M 6X30
0912060303
$2.05
50
HH COLLAR SCREW M 5X12 WS=6
0014050123
$2.05
