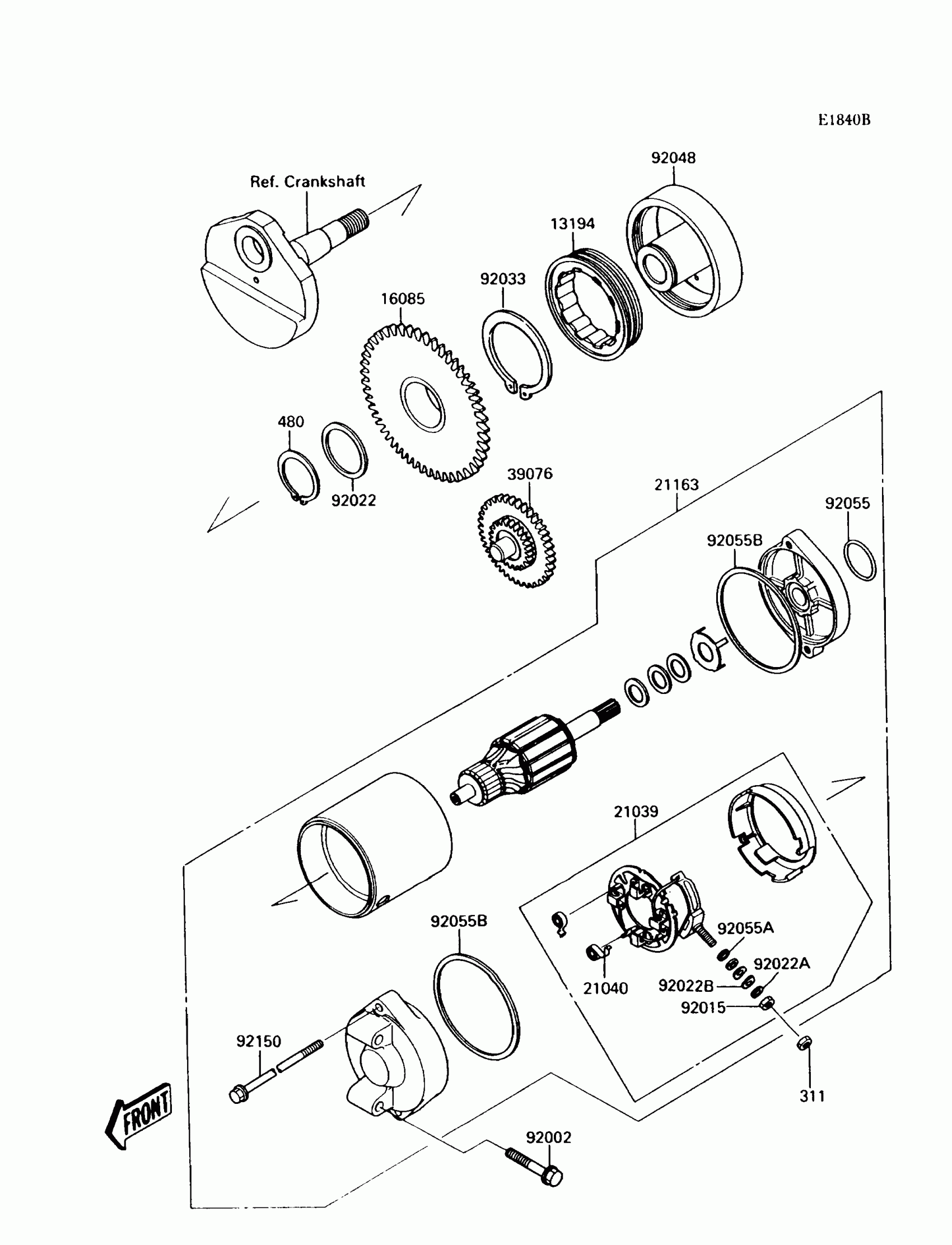

Kawasaki 300 SX Starter Motor(JS300-A3/A4/A5) Diagram

Description

Price

13194

CLUTCH-ONEWAY

13194-3703

Unavailable

16085

GEAR,STARTER,59T

16085-3701

Unavailable

21039

BRUSH,CARBON

21039-3703

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-3708

Unavailable

39076

LIMITER,STARTER IDLE

39076-3701

$175.26

92002

BOLT,6X35

92002-3715

$6.61

92015

NUT,6MM

92015-3710

$4.18

92022

WASHER,36.3X46X2

92022-1102

$6.10

92022A

WASHER,6MM

92022-3711

$4.18

92022B

WASHER,6MM

92022-3713

$2.67

92033

RING,SNAP

92033-3076

Unavailable

92048

RACE,CLUTCH

92048-3706

$228.17

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92150

BOLT,STARTER MOTOR

92150-3774

$22.62

311

NUT-HEX,6MM

311R0600

$0.70

480

CIRCLIP-TYPE-C,36MM

480J3600

$4.71
