1987 Kawasaki 300 SX Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1987 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

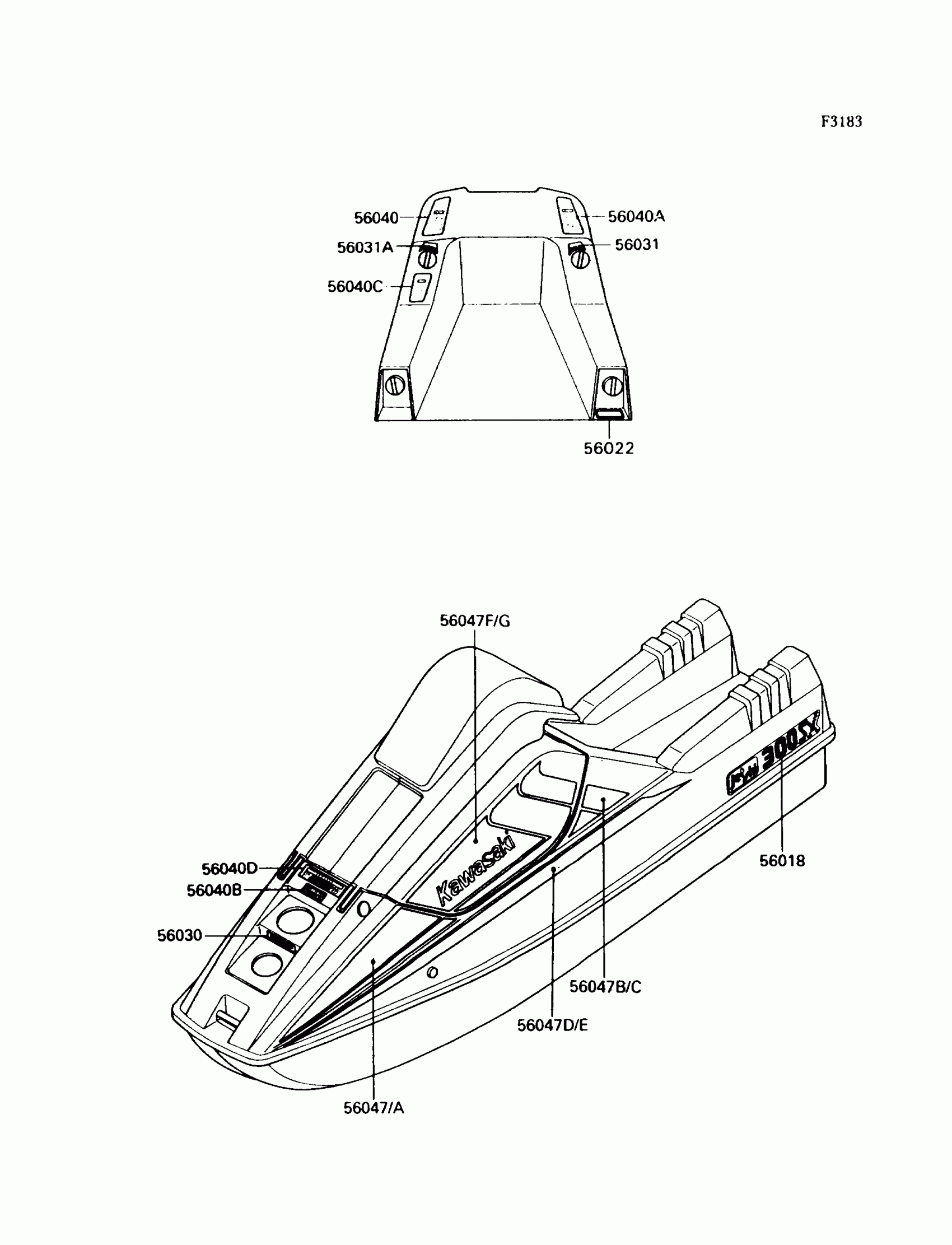

1987 Kawasaki 300 SX Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56018

MARK,JET SKI 300SX

56018-1905

1

$12.02

In stock

56022

LABEL,FIRE EXTINGUISHER

56022-506

1
Out of stock

56030

LABEL,OIL

56030-3721

1

$1.81

In stock

56031

LABEL-MANUAL,FUEL

56031-3701

1
Out of stock

56031A

LABEL-MANUAL,CHOKE

56031-3702

1
Out of stock

56040

1

$7.53

In stock

56040A

1

$7.53

In stock

56040B

LABEL-WARNING,FUEL

56040-3712

1
Out of stock

56040C

LABEL-WARNING,MAINTENANCE

56040-3722

1
Out of stock

56040D

LABEL-WARNING,BREAK-IN

56040-3738

1
Out of stock

56047

1

$11.64

In stock

56047A

1

$11.64

In stock

56047B

1

$10.41

In stock

56047C

1

$10.41

In stock

56047D

1

$12.86

In stock

56047E

1

$12.86

In stock

56047F

1

$19.34

In stock

56047G

1

$19.34

In stock
