1987 Kawasaki 300 SX JET Pump Diagram

← All diagrams

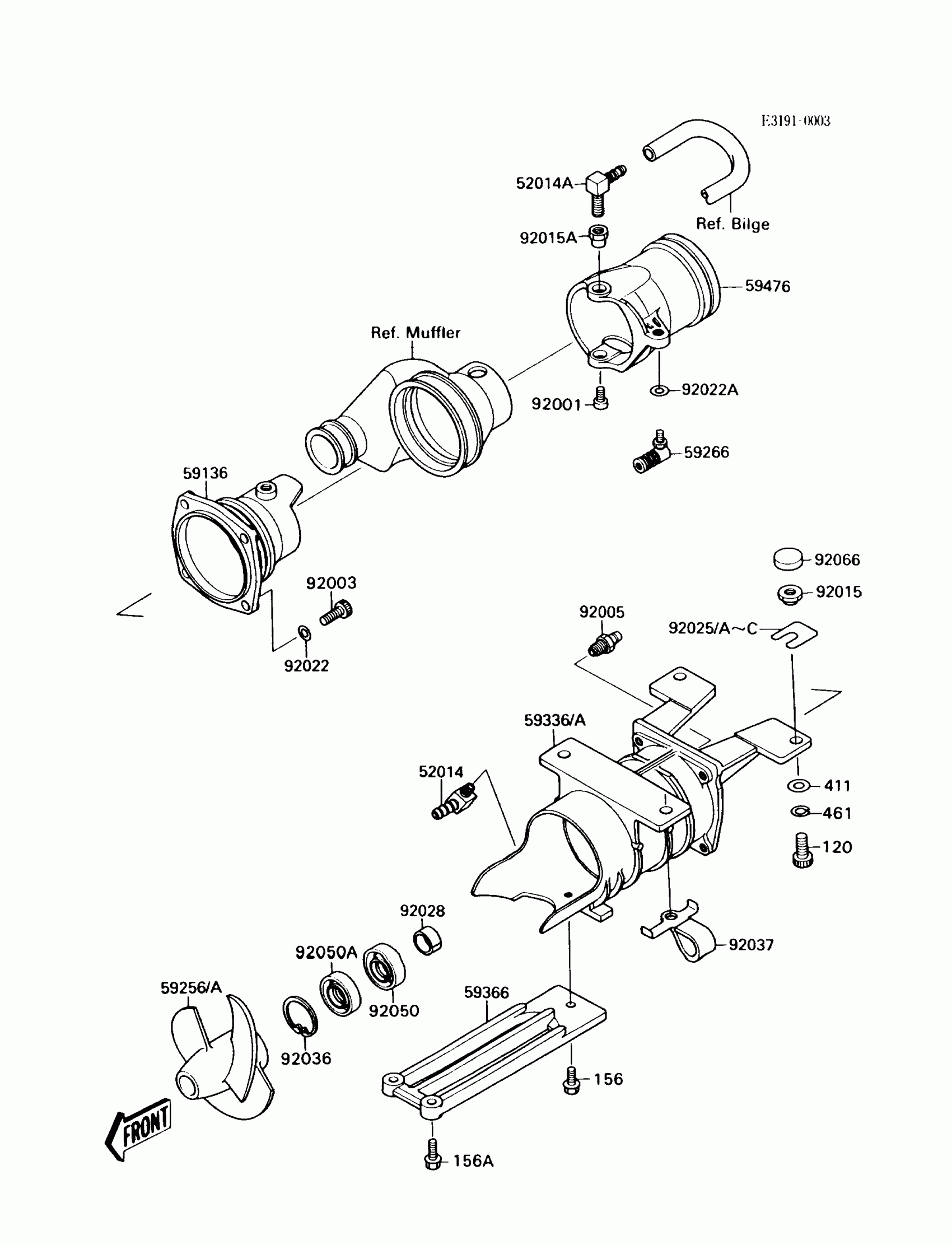

Find the part on the JET Pump diagram for your 1987 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki 300 SX JET Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

52014

ELBOW

52014-3002

1
Out of stock

52014A

ELBOW

52014-3701

1
Out of stock

59136

NOZZLE-PUMP

59136-3702

1
Out of stock

59256

IMPELLER

59256-3702

1
Out of stock

59256A

IMPELLER

59256-3706

1
Out of stock

59266

JOINT-BALL

59266-3701

1
Out of stock

59336

CASE-PUMP

59336-3701

1
Out of stock

59336A

CASE-PUMP

59336-3706

1
Out of stock

59366

GRATE

59366-3001

1
Out of stock

59476

NOZZLE-STRG

59476-3704

1
Out of stock

92001

BOLT,SOCKET,6X11

92001-3701

1
Out of stock

92003

BOLT,8X22

92003-528

1
Out of stock

92005

FITTING,GREASE

92005-501

1
Out of stock

92015

NUT,10MM

92015-3005

1
Out of stock

92015A

NUT,10MM

92015-3732

1
Out of stock

92022

WASHER

92022-562

1
Out of stock

92022A

WASHER

92022-567

1
Out of stock

92025

SHIM,T=0.3MM

92025-3701

—
Out of stock

92025A

SHIM,T=0.5MM

92025-3702

—
Out of stock

92025B

SHIM,T=1.0MM

92025-3703

—
Out of stock

92025C

SHIM,T=1.5MM

92025-3704

—
Out of stock

92028

BUSHING

92028-503

1
Out of stock

92036

RING-SNAP

92036-502

1
Out of stock

92037

CLAMP

92037-3731

1
Out of stock

92050

SEAL-OIL,SCY20368

92050-502

1
Out of stock

92050A

SEAL-OIL,SC20367

92050-503

1
Out of stock

92066

PLUG

92066-3703

1
Out of stock

120

BOLT-SOCKET

120R1025

1
Out of stock

156

BOLT-WP,6X12

156R0612

1
Out of stock

156A

BOLT-WP

156R0630

1
Out of stock

411

WASHER-PLAIN,10MM

411S1000

1
Out of stock

461

WASHER-SPRING,10MM

461S1000

1
Out of stock
