1987 Kawasaki 300 SX Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1987 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

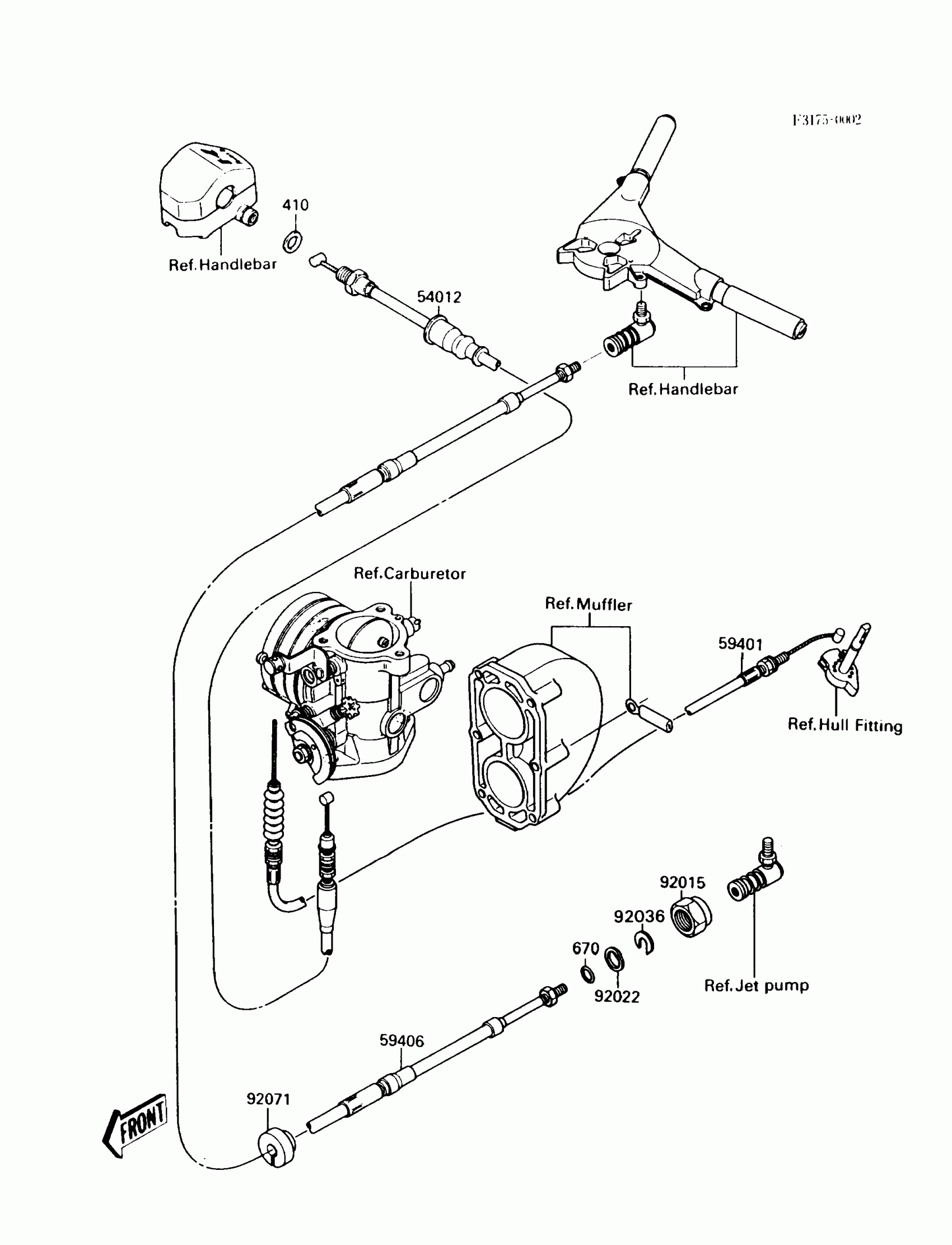

1987 Kawasaki 300 SX Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54012

CABLE-THROTTLE

54012-3703

1

$150.06

In stock

59401

CABLE-CHOKE

59401-3702

1
Out of stock

59406

CABLE-STRG

59406-3702

1
Out of stock

92015

NUT,20MM

92015-526

1
Out of stock

92022

WASHER

92022-535

1
Out of stock

92036

RING-SNAP

92036-501

1
Out of stock

92071

GROMMET

92071-3774

1
Out of stock

410

W-PLAIN-S,10MM

410S1000

1
Out of stock

670

O RING,11MM

670B2011

1
Out of stock
