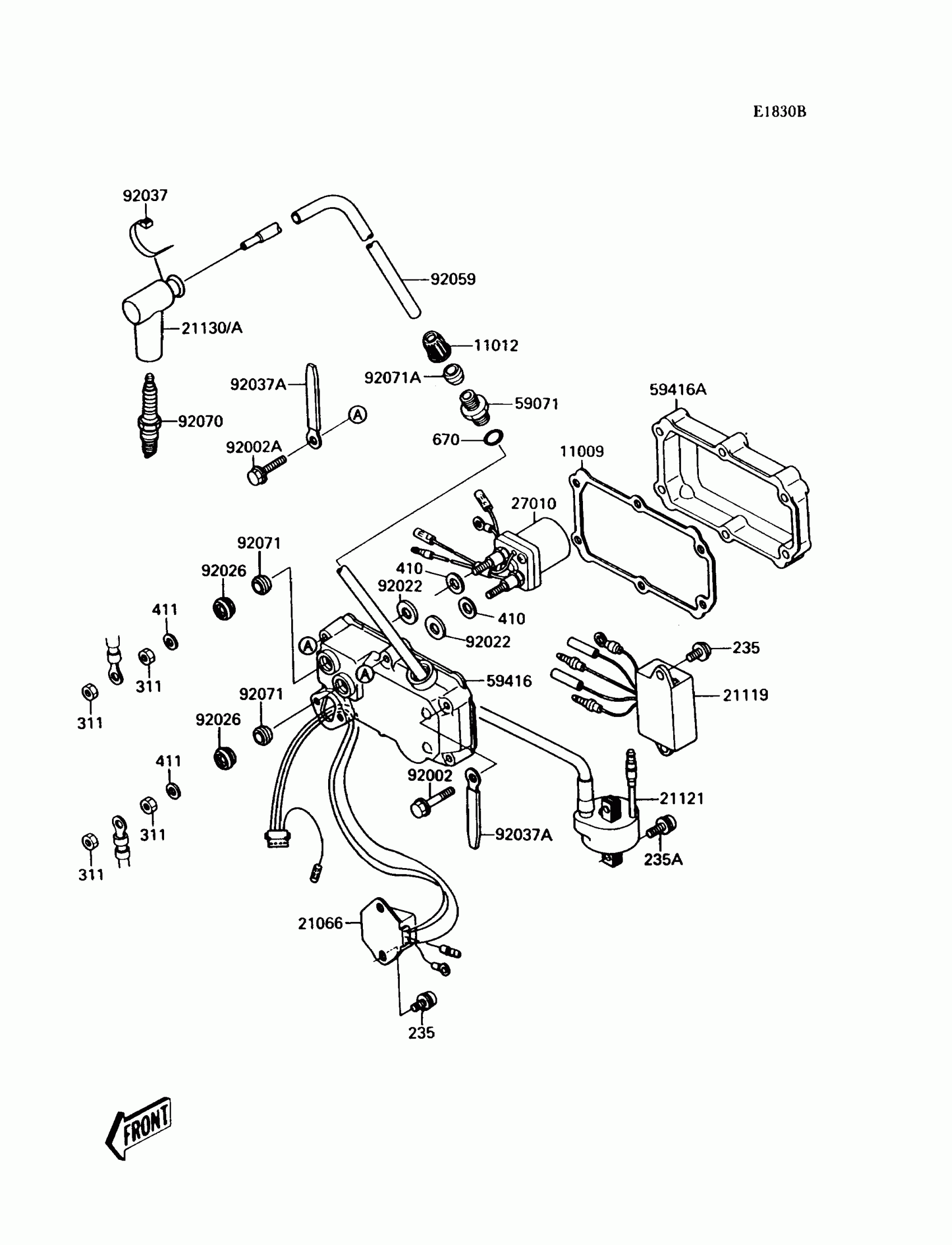

Kawasaki 300 SX Ignition System(JS300-A3/A4/A5) Diagram

Description

Price

11009

GASKET,ELECTRIC CASE

11009-3711

Unavailable

11012

CAP

11012-3005

$5.54

21066

REGULATOR-VOLTAGE

21066-3707

Unavailable

21119

IGNITER

21119-3713

$413.32

21121

COIL-IGNITION

21121-3701

Unavailable

21130A

CAP-SPARK PLUG

21130-3706

$52.27

27010

SWITCH,STARTER RELAY

27010-3703

$160.83

59071

JOINT

59071-3001

$6.29

59416

CASE-ELECTRIC,FR

59416-3702

$129.30

59416A

CASE-ELECTRIC,RR

59416-3703

$85.01

92002

BOLT,6X35

92002-3715

$6.61

92002A

BOLT,6X65

92002-3720

Unavailable

92022

WASHER

92022-3035

$3.52

92026

SPACER

92026-3703

$4.69

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,L=100

92037-3736

$5.52

92059

TUBE

92059-3820

$12.07

92070

PLUG-SPARK,BR7ES(NGK)

92070-3701

Unavailable

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-527

$6.68

235

SCREW-PAN-WP-CROS

235B0616

$4.62

235A

SCREW-PAN-WP-CROS

235B0620

Unavailable

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER PLAIN 10MM

410B1000

$0.58

411

WASHER-PLAIN,6MM

411S0600

$2.06

670

O RING,16MM

670B2016

$1.36
