Description

Price

11012

CAP

11012-3708

$9.10

11045

BRACKET,FRONT BUMPER

11045-3707

Unavailable

11046

BRACKET,REAR BUMPER

11046-3816

Unavailable

13091

HOLDER,DECK,RH

13091-3719

Unavailable

13091A

HOLDER,DECK,LH

13091-3720

Unavailable

14073

DUCT

14073-3702

$24.46

39027

BUMPER-FRONT

39027-3701

$134.22

39028

BUMPER-REAR

39028-3710

$265.93

39156

PAD,DASHBOARD

39156-3701

$61.09

39156A

PAD,DECK FIN

39156-3703

Unavailable

53004

MAT,FLOOR

53004-3711

$165.54

53004A

MAT,DECK SIDE,RH

53004-3728

$90.95

53004B

MAT,DECK SIDE,LH

53004-3729

$90.95

59426A

HULL-COMP,JET WHITE

59426-3767-8C

$1,487.36

59437

STABILIZER

59437-3002

Unavailable

59446

COVER-JET PUMP

59446-3702

$162.33

92009

SCREW,6X16

92009-3721

$4.56

92015

NUT,FLANGED,5MM

92015-3768

$4.71

92022

WASHER,5X16X1.5

92022-3041

$4.18

92039

RIVET

92039-3002

$5.82

92071

GROMMET

92071-3724

Unavailable

92075

DAMPER

92075-3719

$9.40

92093

SEAL,OSR70X82X7.5

92093-3704

$15.74

156A

BOLT-WP,6X25

156R0625

$4.76

221

SCREW-CSK-CROS,5X20

221R0520

$4.38

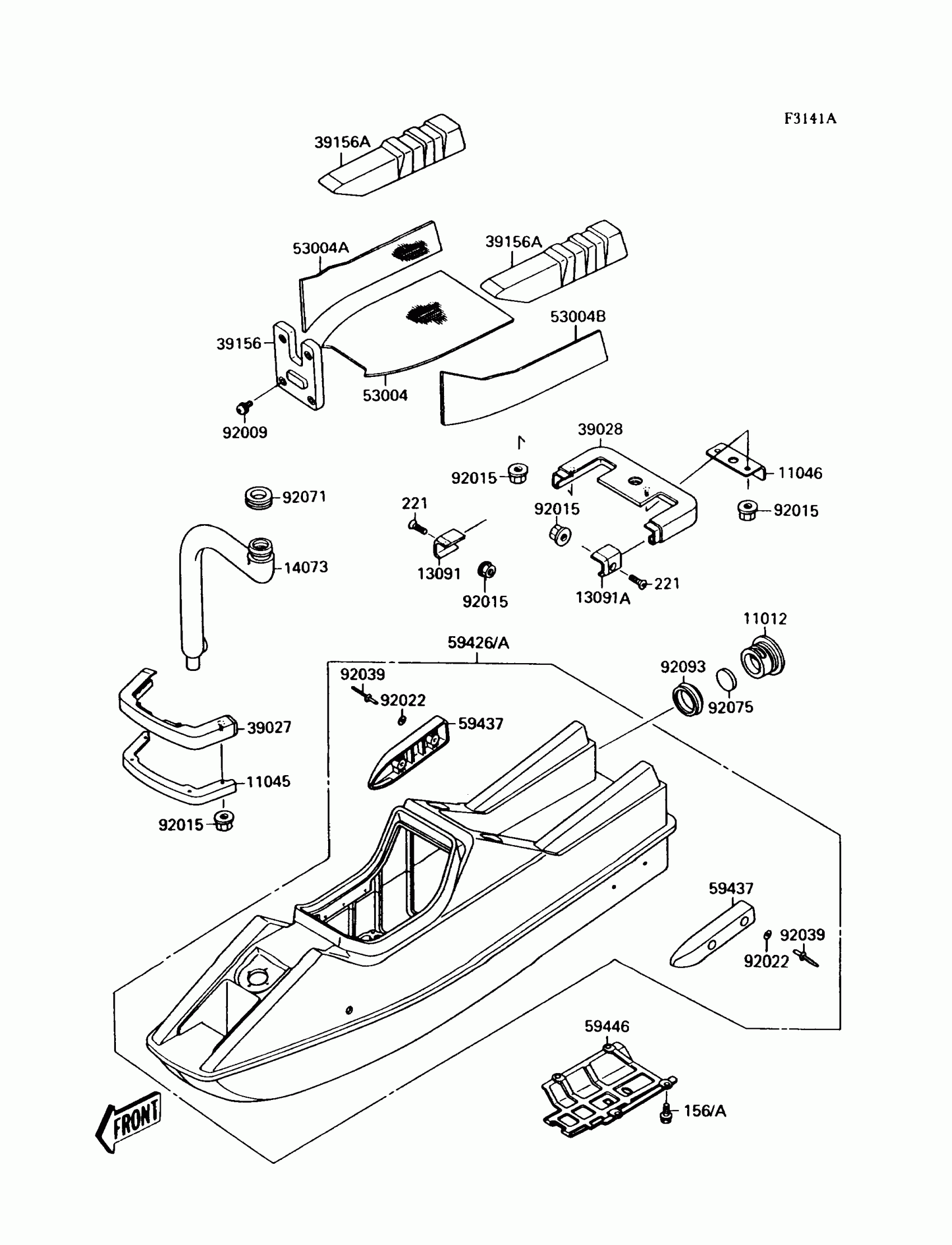

Kawasaki 300 SX Hull(JS300-A3/A4/A5) Diagram

CAP

BRACKET,FRONT BUMPER

BRACKET,REAR BUMPER

HOLDER,DECK,RH

HOLDER,DECK,LH

DUCT

BUMPER-FRONT

BUMPER-REAR

PAD,DASHBOARD

PAD,DECK FIN

MAT,FLOOR

MAT,DECK SIDE,RH

MAT,DECK SIDE,LH

HULL-COMP,JET WHITE

STABILIZER

COVER-JET PUMP

SCREW,6X16

NUT,FLANGED,5MM

WASHER,5X16X1.5

RIVET

GROMMET

DAMPER

SEAL,OSR70X82X7.5

BOLT-WP,6X25

SCREW-CSK-CROS,5X20
