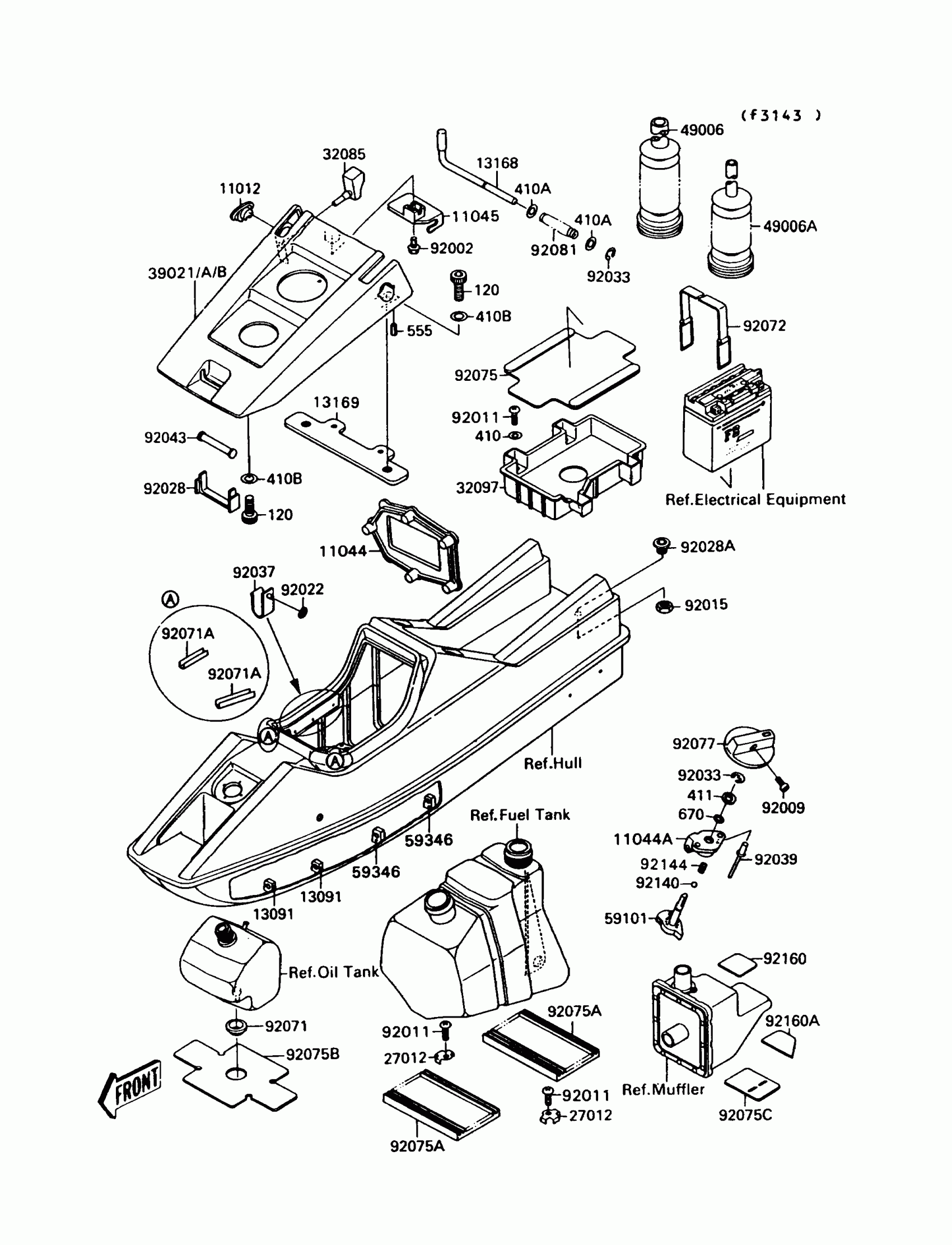

Kawasaki 300 SX Hull Fittings Diagram
#
11012
CAP
11012-3709
Unavailable
11044
BRACKET
11044-3703
Unavailable
11044A
BRACKET
11044-3704
Unavailable
11045
BRACKET
11045-3769
Unavailable
13091
HOLDER
13091-3712
$4.65
13168
LEVER
13168-3702
Unavailable
13169
PLATE
13169-3703
Unavailable
27012
HOOK
27012-501
Unavailable
32085
STOPPER
32085-3704
Unavailable
32097
CASE-BATTERY
32097-3702
Unavailable
39021B
BRACKET-HANDLE POLE,M.M.BLUE
39021-3702-8Z
$97.95
49006
BOOT
49006-3703
$32.83
49006A
BOOT
49006-3704
$30.18
59101
REEL,CHOKE
59101-3702
$26.38
59346
DETENT
59346-504
$8.60
92002
BOLT,6X12
92002-3763
$4.69
92009
SCREW,4X8
92009-3729
$6.61
92011
SCREW,TAPPING
92011-561
Unavailable
92015
NUT
92015-3779
$9.98
92022
WASHER,LOCK,5MM
92022-3723
$2.68
92028
BUSHING
92028-3712
$4.52
92028A
BUSHING
92028-3734
$9.98
92033
RING-SNAP,7MM
92033-3704
$2.94
92037
CLAMP,FUEL TUBE
92037-3720
$5.03
92039
RIVET
92039-3714
$0.95
92043
PIN
92043-3706
$22.88
92071
GROMMET,OIL TANK
92071-3720
$8.60
92071A
GROMMET,L=100
92071-3744
$5.36
92072
BAND,BATTERY,L=366
92072-3706
$40.40
92075
DAMPER,BATTERY
92075-3714
$16.74
92075A
DAMPER
92075-3716
$56.31
92075B
DAMPER,OIL TANK
92075-3717
$10.79
92075C
DAMPER,MUFFLER
92075-3747
$17.84
92077
KNOB,FUEL TAP
92077-3704
Unavailable
92081
SPRING
92081-3703
$4.48
92140
BALL,3MM
92140-3702
$4.95
92144
SPRING
92144-3712
$2.53
92160
DAMPER
92160-3714
$6.40
92160A
DAMPER
92160-3715
$9.96
120
BOLT-SOCKET
120R1025
$9.17
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
410A
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
410B
W-PLAIN-S,10MM
410S1000
$3.12
411
WASHER-PLAIN,8MM
411S0800
$3.09
555
PIN-SPRING,4X14
555B0414
$2.68
670
O RING,8MM
670B1508
$1.29
