1991 Kawasaki 300 SX Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1991 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

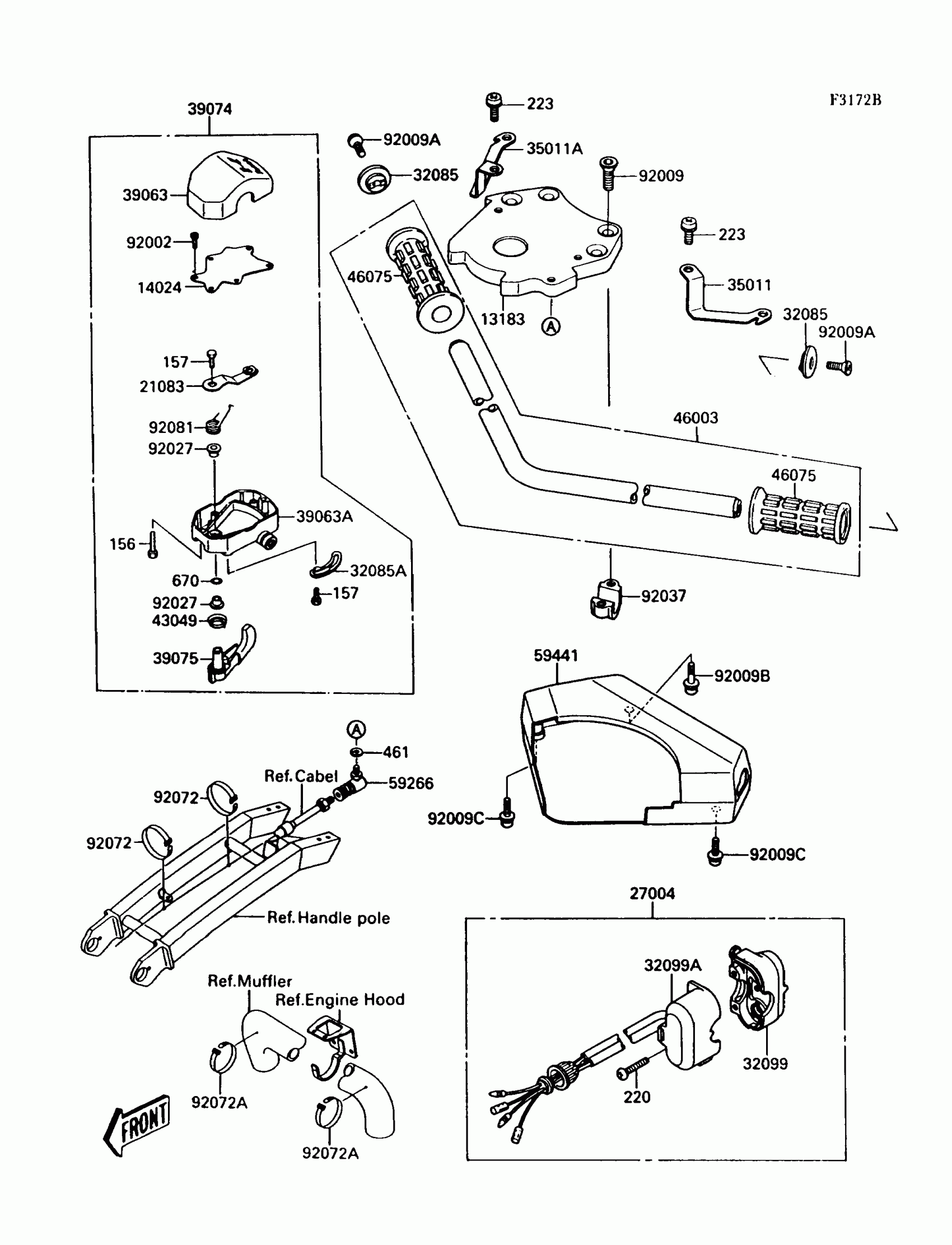

1991 Kawasaki 300 SX Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13183

PLATE,HANDLEBAR

13183-3772

1
Out of stock

14024

COVER,THROTTLE LEVER

14024-3701

1
Out of stock

21083

ARM,THROTTLE LEVER

21083-3701

1
Out of stock

27004

SWITCH-ASSY,START&STOP

27004-3702

1
Out of stock

32085

STOPPER

32085-3705

1
Out of stock

32085A

STOPPER

32085-3709

1
Out of stock

32099

CASE,FR,SWITCH

32099-3721

1
Out of stock

32099A

CASE,RR,SWITCH

32099-3722

1
Out of stock

35011

STAY,LH

35011-3705

1
Out of stock

35011A

STAY,RH

35011-3706

1
Out of stock

39063

HOUSING-CONTROL,UPP

39063-3703

1
Out of stock

39063A

HOUSING-CONTROL,LWR

39063-3707

1
Out of stock

39074

LEVER-ASSY-THROTTLE

39074-3711

1

$231.05

In stock

39075

LEVER-THROTTLE

39075-3704

1
Out of stock

43049

PACKING,THROTTLE LEVER

43049-3701

1
Out of stock

46003

HANDLE

46003-3711

1
Out of stock

46075

GRIP,HANDLEBAR

46075-3713

1
Out of stock

59266

JOINT-BALL

59266-3701

1
Out of stock

59441

COVER-HANDLE

59441-3705

1
Out of stock

92002

BOLT,SOCKET,3X10

92002-3751

1
Out of stock

92009

SCREW,8X22

92009-3701

1
Out of stock

92009A

SCREW,6X16

92009-3703

1
Out of stock

92009B

SCREW,5X35

92009-3719

1
Out of stock

92009C

SCREW,6X25

92009-3720

1
Out of stock

92027

COLLAR,THROTTLE LEVER

92027-3704

1
Out of stock

92037

CLAMP,HANDLEBAR

92037-503

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=278

92072-1087

1
Out of stock

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

1
Out of stock

156

BOLT-WP,5X25

156R0525

1
Out of stock

157

BOLT-WSP,5X12

157R0512

1
Out of stock

220

SCREW-PAN-CROS,5X30

220R0530

1
Out of stock

223

SCREW-PAN-WS-CROS,6X14

223R0614

1
Out of stock

461

WASHER-SPRING,6MM

461S0600

1
Out of stock

670

O RING,8MM

670B1508

1
Out of stock
