1991 Kawasaki 300 SX Handle Pole Diagram

← All diagrams

Find the part on the Handle Pole diagram for your 1991 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

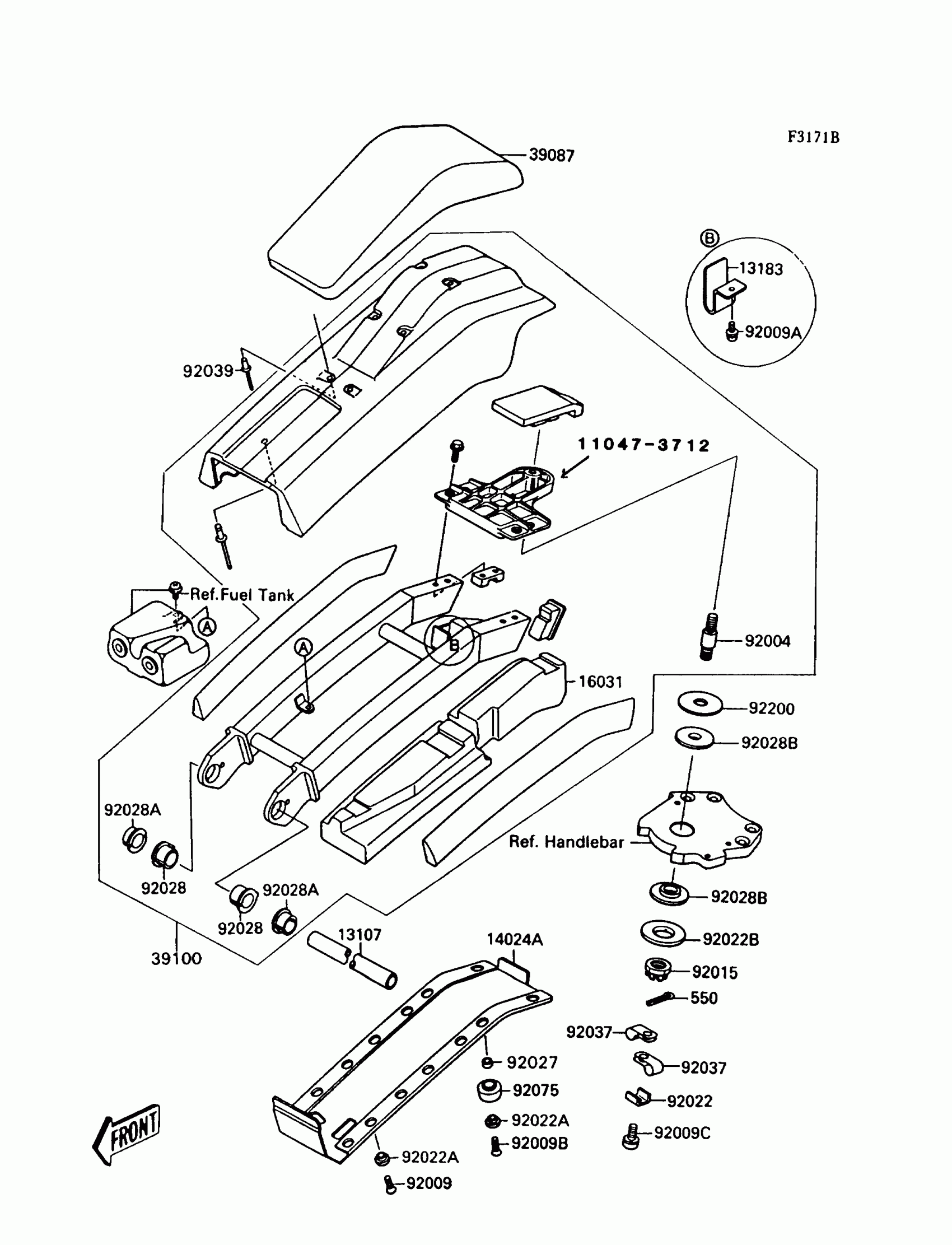

1991 Kawasaki 300 SX Handle Pole Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT

13107-3703

1
Out of stock

13183

PLATE

13183-3708

1
Out of stock

14024A

COVER,HANDLE POLE,LWR,BLACK

14024-3782-6D

1
Out of stock

16031

FLOAT

16031-3705

1
Out of stock

39087

PAD-HANDLE

39087-3704

1

$90.21

In stock

39100

1

$462.96

In stock

92004

STUD

92004-3728

1
Out of stock

92009

SCREW,6X16.9

92009-3709

1
Out of stock

92009A

SCREW,5X10

92009-3718

1
Out of stock

92009B

SCREW,6X21

92009-3725

1
Out of stock

92009C

SCREW,5X16

92009-3736

1
Out of stock

92015

NUT,CASTLE,18MM

92015-3006

1
Out of stock

92022

WASHER,CLAMP

92022-3014

1
Out of stock

92022A

WASHER

92022-3732

1
Out of stock

92022B

WASHER

92022-571

1
Out of stock

92027

COLLAR,7.1X10.5X6

92027-3702

1
Out of stock

92028

BUSHING

92028-3710

1
Out of stock

92028A

BUSHING

92028-3711

1
Out of stock

92028B

BUSHING

92028-3743

1
Out of stock

92037

CLAMP,LEAD WIRE

92037-3007

1
Out of stock

92039

RIVET

92039-3712

1
Out of stock

92075

DAMPER

92075-3722

1
Out of stock

92200

WASHER,20.5X80X1

92200-3709

1
Out of stock

550

PIN-COTTER,4X40

550S4040

1
Out of stock
