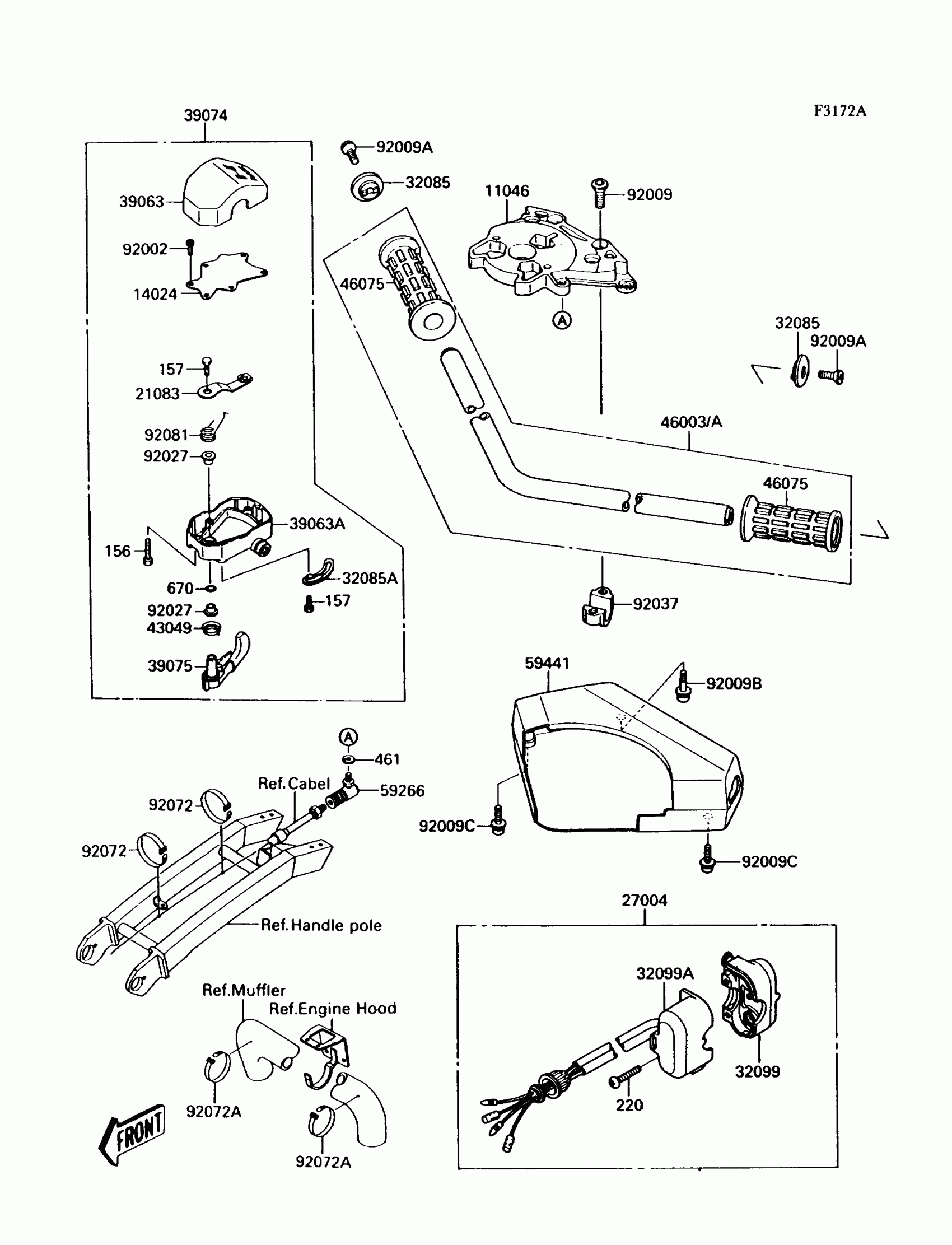

Kawasaki 300 SX Handlebar(JS300-A2/A3/A4) Diagram
#
Description
Price
11046
BRACKET,HANDLEBAR
11046-3716
Unavailable
14024
COVER,THROTTLE LEVER
14024-3701
Unavailable
21083
ARM,THROTTLE LEVER
21083-3701
$15.65
27004
SWITCH-ASSY,START&STOP
27004-3702
Unavailable
32085
STOPPER
32085-3705
$4.83
32085A
STOPPER
32085-3709
Unavailable
32099
CASE,FR,SWITCH
32099-3721
$68.26
32099A
CASE,RR,SWITCH
32099-3722
$238.66
39063
HOUSING-CONTROL,UPP
39063-3703
Unavailable
39063A
HOUSING-CONTROL,LWR
39063-3707
Unavailable
39074
LEVER-ASSY-THROTTLE
39074-3711
$226.26
39075
LEVER-THROTTLE
39075-3704
Unavailable
43049
PACKING,THROTTLE LEVER
43049-3701
$7.69
46003A
HANDLE
46003-3711
$202.66
46075
GRIP,HANDLEBAR
46075-3713
Unavailable
59266
JOINT-BALL
59266-3701
$66.16
59441
COVER-HANDLE
59441-3705
$45.17
92002
BOLT,SOCKET,3X10
92002-3751
$5.46
92009
SCREW,8X22
92009-3701
$7.49
92009A
SCREW,6X16
92009-3703
$4.31
92009B
SCREW,5X35
92009-3719
$4.56
92009C
SCREW,6X25
92009-3720
$3.98
92027
COLLAR,THROTTLE LEVER
92027-3704
Unavailable
92037
CLAMP,HANDLEBAR
92037-503
$16.01
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=278
92072-1087
Unavailable
92081
SPRING,THROTTLE LEVER RETURN
92081-3702
$6.52
156
BOLT-WP,5X25
156R0525
$5.22
157
BOLT-WSP,5X12
157R0512
$2.78
220
SCREW-PAN-CROS,5X30
220R0530
$4.87
461
WASHER-SPRING,6MM
461S0600
$1.07
670
O RING,8MM
670B1508
$1.29
