Description

Price

14024

COVER,THROTTLE LEVER

14024-3701

Unavailable

21083

ARM,THROTTLE LEVER

21083-3701

$15.65

27004

SWITCH-ASSY,START&STOP

27004-3702

Unavailable

32085

STOPPER

32085-3705

$4.83

32085A

STOPPER

32085-3709

Unavailable

32099

CASE,FR,SWITCH

32099-3721

$68.26

32099A

CASE,RR,SWITCH

32099-3722

$238.66

39058

HANDLE-COMP

39058-3701

$51.49

39063

HOUSING-CONTROL,UPP

39063-3703

Unavailable

39063A

HOUSING-CONTROL,LWR

39063-3705

$43.49

39074

LEVER-ASSY-THROTTLE

39074-3708

$226.26

39075

LEVER-THROTTLE

39075-3703

Unavailable

43049

PACKING,THROTTLE LEVER

43049-3701

$7.69

46075

GRIP,HANDLEBAR

46075-3709

Unavailable

59266

JOINT-BALL

59266-3701

$66.16

59441

COVER-HANDLE

59441-3704

$45.17

92002

BOLT,SOCKET,3X10

92002-3751

$5.46

92009

SCREW,6X16

92009-3703

$4.31

92009A

SCREW,5X10

92009-3718

$3.98

92009B

SCREW,5X35

92009-3719

$4.56

92009C

SCREW,6X25

92009-3720

$3.98

92027

COLLAR,THROTTLE LEVER

92027-3704

Unavailable

92037

CLAMP

92037-3730

$6.34

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=278

92072-1087

Unavailable

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

$6.52

156

BOLT-WP,5X25

156R0525

$5.22

157

BOLT-WSP,5X12

157R0512

$2.78

220

SCREW-PAN-CROS,5X30

220R0530

$4.87

461

WASHER-SPRING,6MM

461S0600

$1.07

670

O RING,8MM

670B1508

$1.29

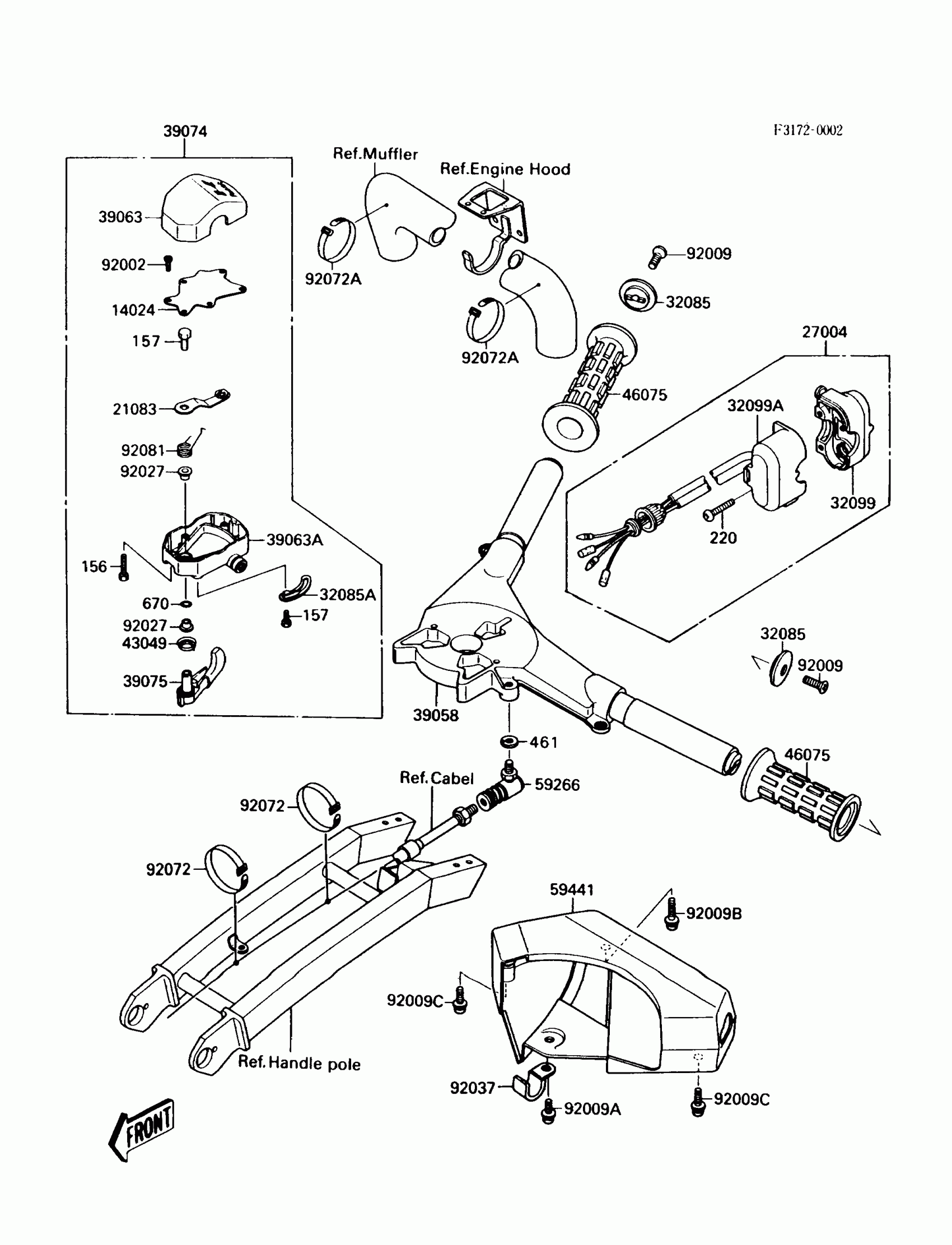

Kawasaki 300 SX Handlebar(JS300-A1) Diagram

COVER,THROTTLE LEVER

ARM,THROTTLE LEVER

SWITCH-ASSY,START&STOP

STOPPER

STOPPER

CASE,FR,SWITCH

CASE,RR,SWITCH

HANDLE-COMP

HOUSING-CONTROL,UPP

HOUSING-CONTROL,LWR

LEVER-ASSY-THROTTLE

LEVER-THROTTLE

PACKING,THROTTLE LEVER

GRIP,HANDLEBAR

JOINT-BALL

COVER-HANDLE

BOLT,SOCKET,3X10

SCREW,6X16

SCREW,5X10

SCREW,5X35

SCREW,6X25

COLLAR,THROTTLE LEVER

CLAMP

BAND,L=123

BAND,L=278

SPRING,THROTTLE LEVER RETURN

BOLT-WP,5X25

BOLT-WSP,5X12

SCREW-PAN-CROS,5X30

WASHER-SPRING,6MM

O RING,8MM
