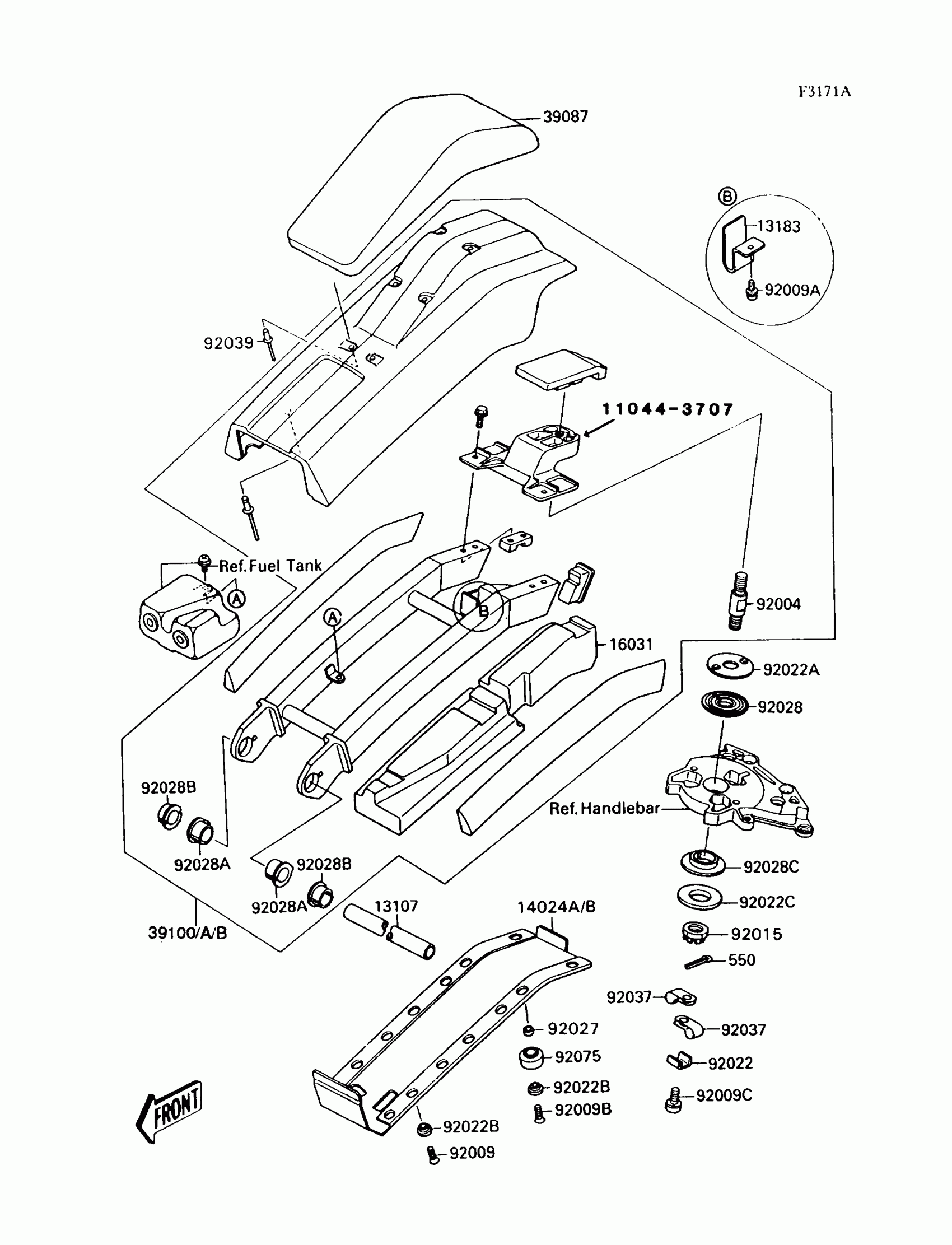

Kawasaki 300 SX Handle Pole(JS300-A2/A3/A4) Diagram

Description

Price

13107

SHAFT

13107-3703

Unavailable

13183

PLATE

13183-3708

Unavailable

14024B

COVER,HANDLE POLE,LWR,BLACK

14024-3782-6D

Unavailable

16031

FLOAT

16031-3705

$10.97

39087

PAD-HANDLE

39087-3704

$86.26

39100B

POLE-COMP-HANDLE,M.M.BLUE

39100-3702-8Z

$454.06

92004

STUD,16MM

92004-3702

$46.90

92009

SCREW,6X16.9

92009-3709

Unavailable

92009A

SCREW,5X10

92009-3718

$3.98

92009B

SCREW,6X21

92009-3725

$4.58

92009C

SCREW,5X16

92009-3736

$5.20

92015

NUT,16MM

92015-3742

$26.97

92022

WASHER,CLAMP

92022-3014

$4.76

92022A

WASHER

92022-3716

Unavailable

92022B

WASHER

92022-3732

Unavailable

92022C

WASHER

92022-571

$36.16

92027

COLLAR,7.1X10.5X6

92027-3702

$7.65

92028

BUSHING

92028-3708

$8.71

92028A

BUSHING

92028-3710

Unavailable

92028B

BUSHING

92028-3711

Unavailable

92028C

BUSHING

92028-513

Unavailable

92037

CLAMP,LEAD WIRE

92037-3007

$7.31

92039

RIVET

92039-3712

$4.83

92075

DAMPER

92075-3722

$7.65

550

PIN-COTTER,4X40

550S4040

$6.35
