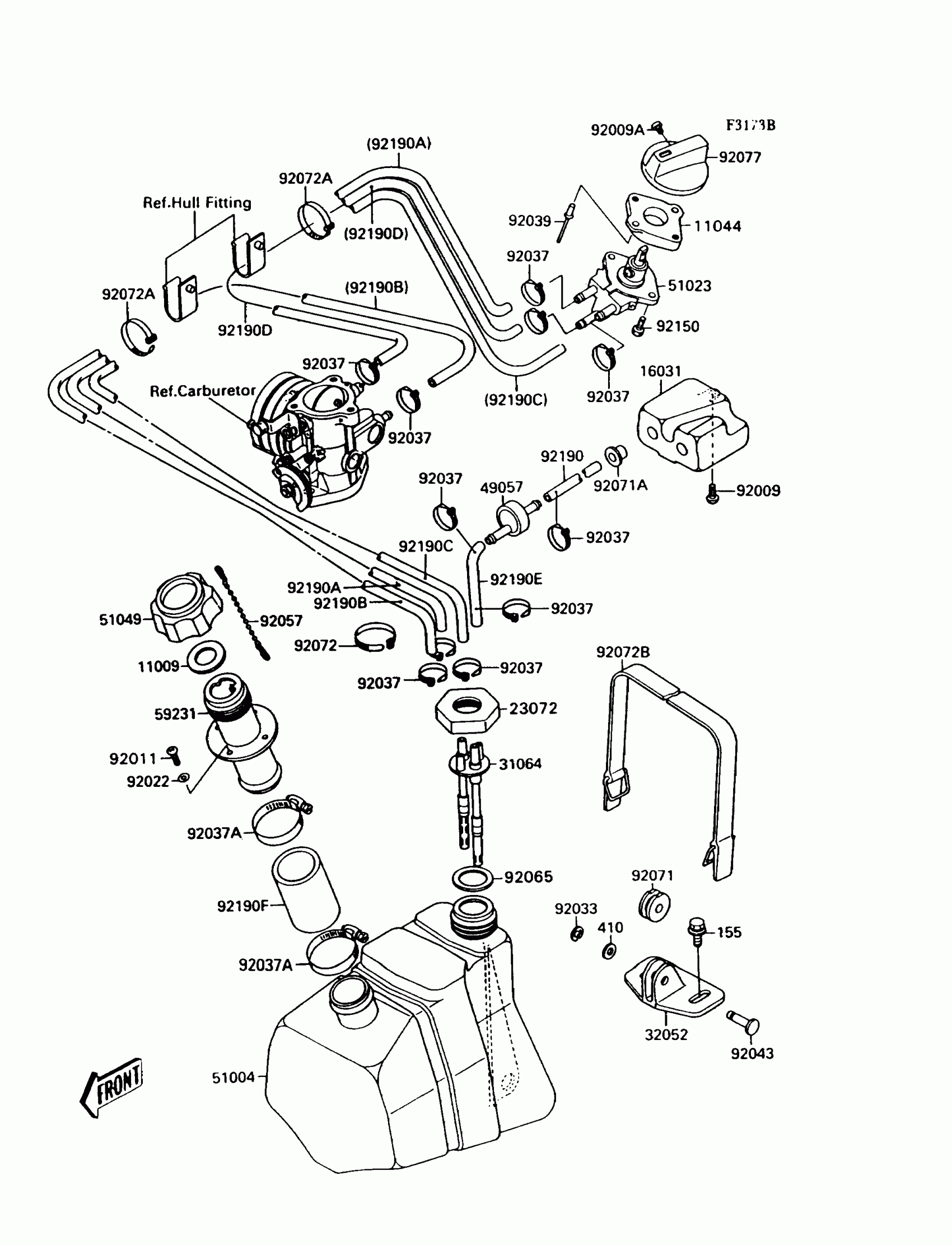

Kawasaki 300 SX Fuel Tank(JS300-A5) Diagram
#
11009
GASKET,TANK CAP
11009-3020
$13.51
11044
BRACKET,FUEL TAP
11044-3708
Unavailable
16031
FLOAT
16031-3709
$20.27
23072
RETAINER
23072-501
Unavailable
31064
PIPE-COMP,FUEL
31064-3718
$121.93
32052
BRACKET-TANK
32052-3704
Unavailable
49057
VALVE-RELIEF
49057-3001
$64.85
51004
TANK-FUEL
51004-3703
Unavailable
51023
TAP-ASSY,FUEL
51023-3715
$71.17
51049
CAP-TANK,FUEL
51049-3705
Unavailable
59231
FILLER
59231-3701
$17.38
92009
SCREW,5X10
92009-3718
$3.98
92009A
SCREW,4X8
92009-3729
$6.61
92011
SCREW
92011-562
$1.65
92022
WASHER
92022-563
$1.13
92033
RING-SNAP,7MM
92033-3704
$2.94
92037
CLAMP
92037-1173
$3.49
92037A
CLAMP
92037-3009
$3.70
92039
RIVET
92039-3714
$0.95
92043
PIN
92043-3705
$10.44
92057
CHAIN,COVER,L=100
92057-3704
$19.34
92065
GASKET
92065-504
$15.31
92071
GROMMET
92071-3730
Unavailable
92071A
GROMMET
92071-3739
$4.99
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=149
92072-031
$5.00
92072B
BAND,L=456
92072-3708
Unavailable
92077
KNOB,FUEL TAP
92077-3704
Unavailable
92150
BOLT,5X16
92150-3778
$4.65
92190
TUBE,5.8X10.8X650
92190-3755
$22.46
92190A
TUBE,"ON",5.8X10.8X1000
92190-3756
$26.83
92190B
TUBE,"RETURN",7X12X780
92190-3757
$24.37
92190C
TUBE,"RES",5.8X10.8X1000
92190-3758
$34.20
92190D
TUBE,5.8X10.8X560
92190-3759
$22.46
92190E
TUBE,5.8X10.8X55
92190-3765
$22.46
92190F
TUBE,45X53X80
92190-3776
$13.97
155
BOLT-WSP-SMALL,8X20
155R0820
$6.41
410
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
